Description

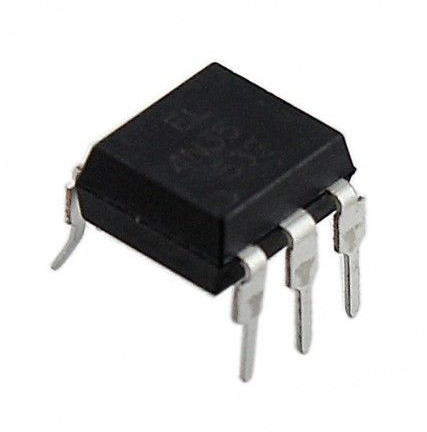

4N35 Optocoupler Phototransistor DIP-6
Specifications
- Package / Case: PDIP-6
- If - Forward Current: 60 mA
- Isolation Voltage: 3550 Vrms
- Output Type: NPN Phototransistor
- Vf - Forward Voltage: 1.5 V
- Configuration: 1 Channel
- Maximum Collector Current: 100 mA
- Maximum Collector Emitter Saturation Voltage: 0.3 V
- Vr - Reverse Voltage: 6 V
- Maximum Collector: Emitter Voltage 30 V
- Pd - Power Dissipation: 350 mW
- Number of Channels:1 Channel
- Maximum Operating Temperature:100 C
