SMD LED 2835 SEOUL Original (Pack of 10)

LafvinSKU: LF080

Price:
Sale priceN$8.00

Tax included

Stock:
Sold out
Write a review
| Ask a question

Description

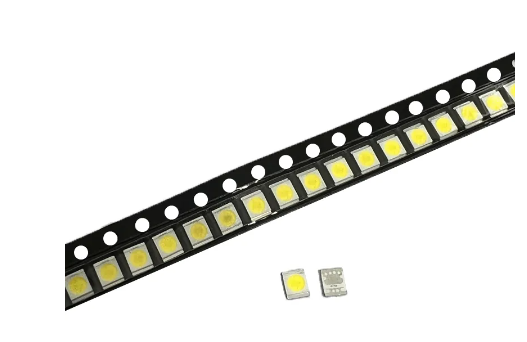

SeouL Innotek SMD LED 3528 2835 3V 1W 100LM Cold White For TV LCD Backlight Application

Specifications

  • MODEL NAME : SBWVT120E
  • Manufacturer : SEOUL
  • Package  Model:Loaded Quantity 3500PCS Per Reel
  • Forward Current  (IF ): 400mA
  • Power Dissipation(PD):  1460mW
  • Operating  Temperature (Topr): -30+90 °C
  • Storage Temperature (Tstg): -40 -+100 °C
  • Soldering Temperature  (Tsld): Reflow Soldering:260 °C for 10secs
  • Hand Soldering:350 °Cfor 3secs
  • Junctio  Tnemperature (Tj ):  135°C
  • Forward  Voltage (VF): b3.05-3.65V(250mA)
  • Luminous Flux  (CD): 23.5cd(250mA)
  • Wavelength  (nm) : -nm (250mA)
  • Emissions-farbe Color of Emission :
  • CIE :  X=0.2960  Y=0.2770  (250mA)
  • Color Correlated Temperature  (CCT): K
  • CRI  : 80°
  • Viewing angle : 120°
  • Lead Frame Type LED Package: 3.5×2.8×0.6 mm (L×W×H),d=2.1mm
