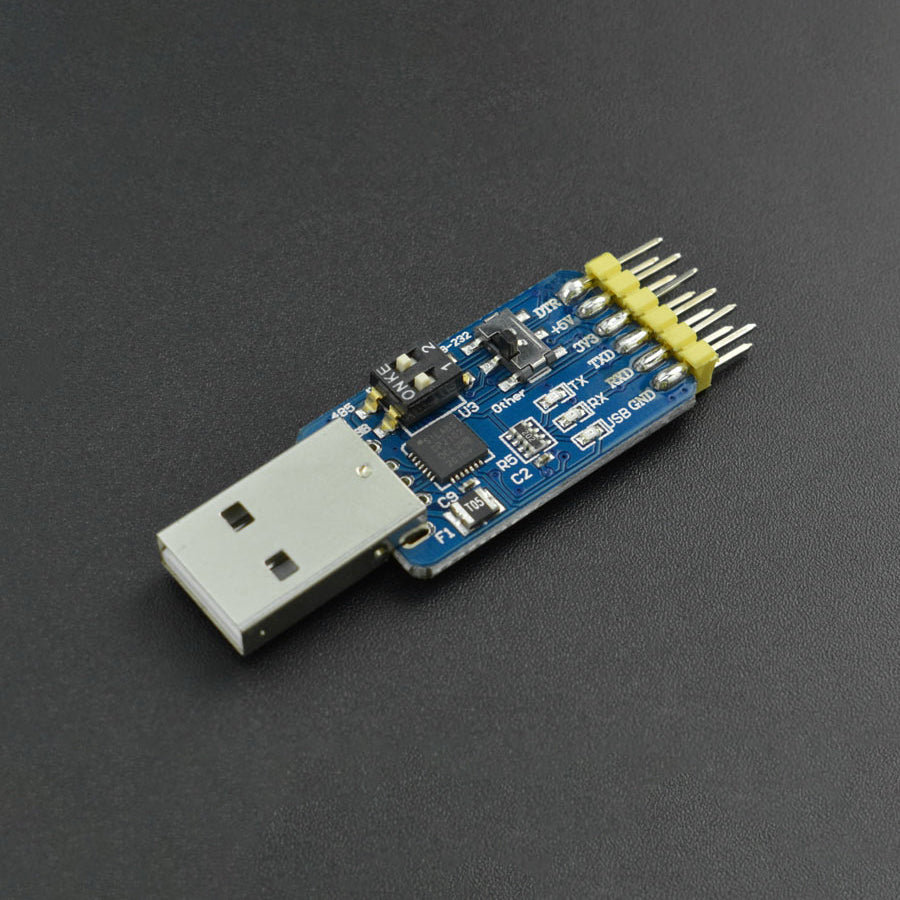

DFROBOT 6-in-1 USB to Serial Converter

DFRobotSKU: FIT0781

Price:
Sale priceN$212.36

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

Are you troubled by the various level standards and voltages of the serial port? This 6-in-1 USB to Serial Converter is just right for you. Check it out!

One module has six functions. This 6-in-1 multifunctional serial converter supports USB-TTL, USB-232, USB-485, TTL-232, TTL-485, and 232-485 converting functions and is 3.3V/5V compatible. It works well with mainstream operating systems such as Windows and Linux. There is a 500mA fuse protection circuit integrated on the module for protecting the device against damage caused by short-circuit or over-current. The on-board indicator light indicates the working status of the device: USB is selected for the COM port (Yellow light) On, data receiving RX (Red light) Flashes, data transmitting TX (Green light) Flashes.



Mode
Dial switch
1(USB)
Dial switch
1(485)
Switch S1 Diagram
USB to TTL On Off Down(232-485) Diagram
USB to 232 On Off UP(232-TTL) Diagram
USB to 485 On On Down(232-485) Diagram
USB to 232 Off Off Down(232-485) Diagram
TTL to 485 Off On Down(232-485) Diagram
232 to 485 Off On Down(232-485) Diagram



The module is small and stable. It adopts reliable patch dial switches, a life span of 100,000 times flicks, thus ensuring stable switching of working modes. The module can be widely used in serial communication occasions from USB to other interfaces.

Specification

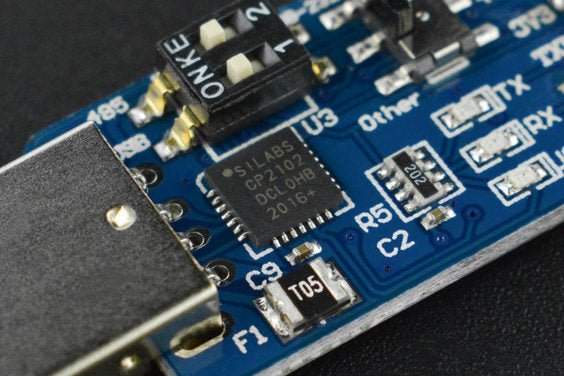

  • Chip: CP2012
  • Compatible with 3.3V/5V voltage input and output
  • Support USB-TTL, USB-232, USB-485, TTL-232, TTL-485, 232-485 six serial conversion
  • Baud Rate: up to 2Mbps
  • Over-current and short circuit protection
  • On-board indicator light indicates working status
  • Support Win8, Win7, WinXp, Win2K, WinCE, Linux, Mac system

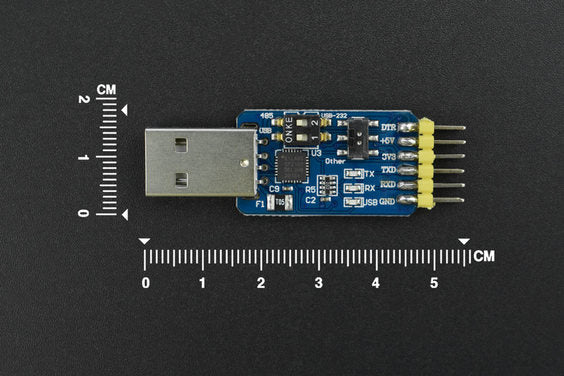

  • Size: 3.1cm x 1.8cm / 1.22 x 0.71 inch
