Description

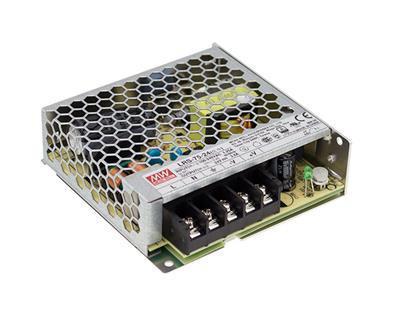

AC/DC CONVERTER 24V 77W
Specifications
|
Series |
LRS-75 (75W) |
|
Package |
Box |
|
Part Status |
Active |
|
Type |
Enclosed |
|
Voltage - Input |
85 ~ 264 VAC, 120 ~ 373 VDC |
|
Voltage - Output 1 |
24V |
|
Voltage - Output 2 |
- |
|
Voltage - Output 3 |
- |
|
Voltage - Output 4 |
- |
|
Current - Output (Max) |
3.2A |
|
Power (Watts) |
77W |
|
Applications |
Household Appliances, ITE (Commercial) |
|
Efficiency |
90% |
|
Operating Temperature |
-30°C ~ 70°C (With Derating) |
|
Features |
Adjustable Output, Universal Input |
|
Mounting Type |
Chassis Mount |
|
Size / Dimension |
3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
Approval Agency |
CB, CCC, CE, cURus, TUV |
|
Minimum Load Required |
No |
|
Number of Outputs |
1 |
|
Voltage - Isolation |
4 kV |
