Description

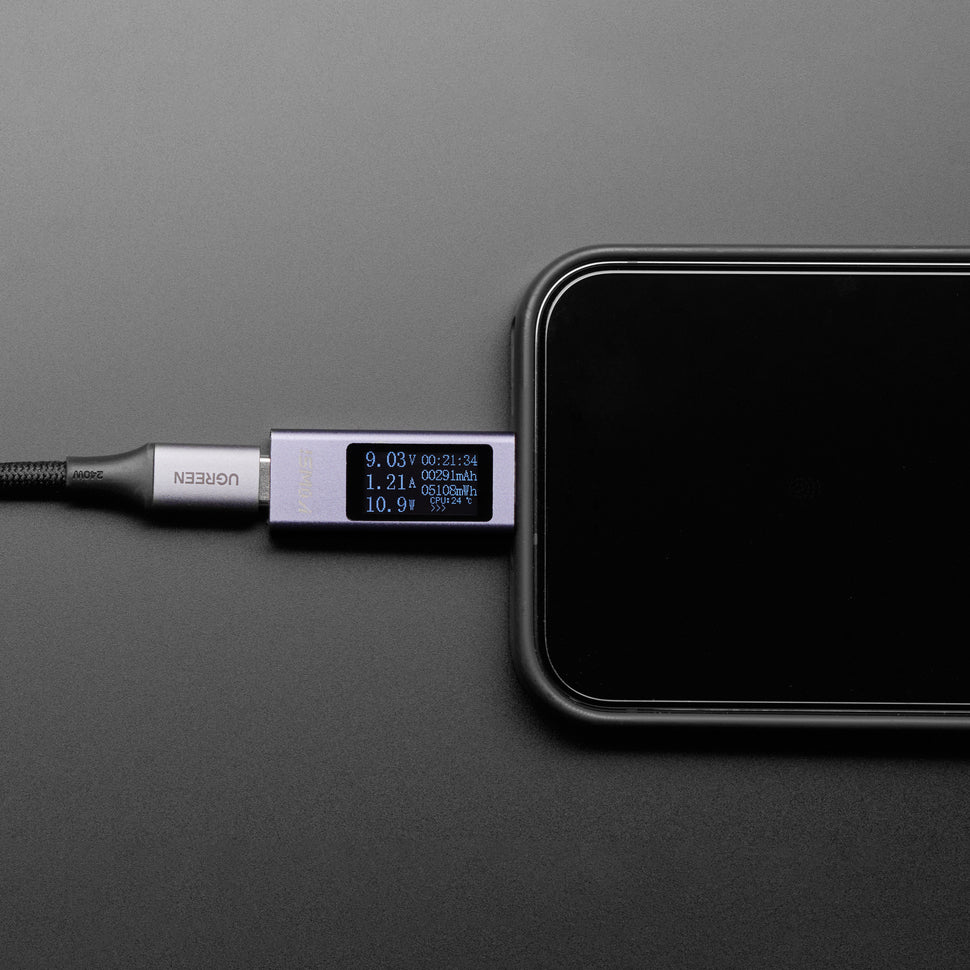

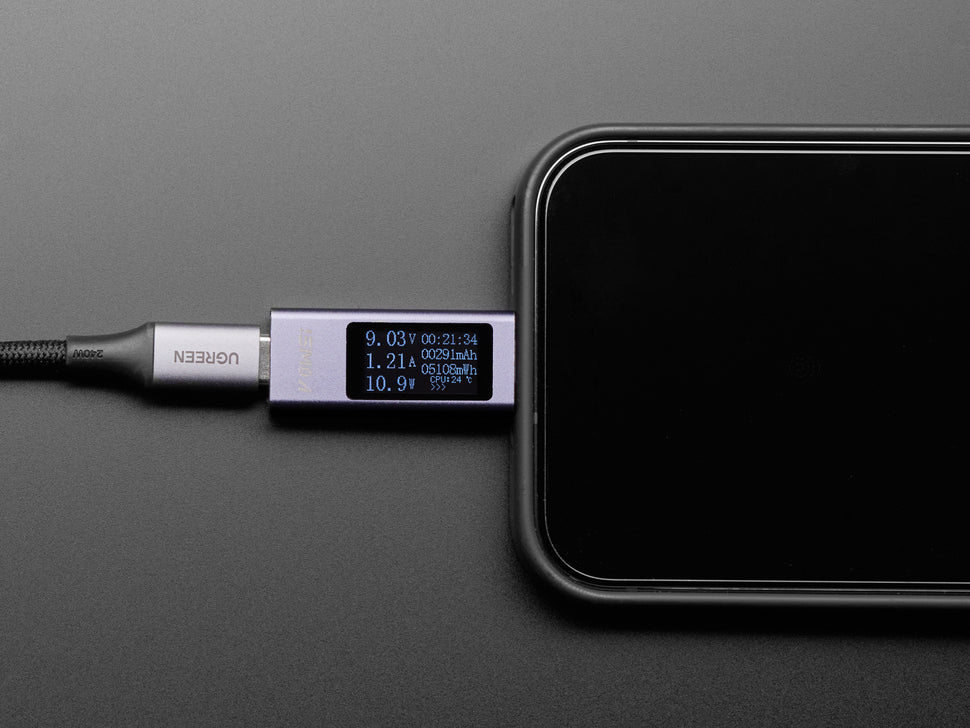

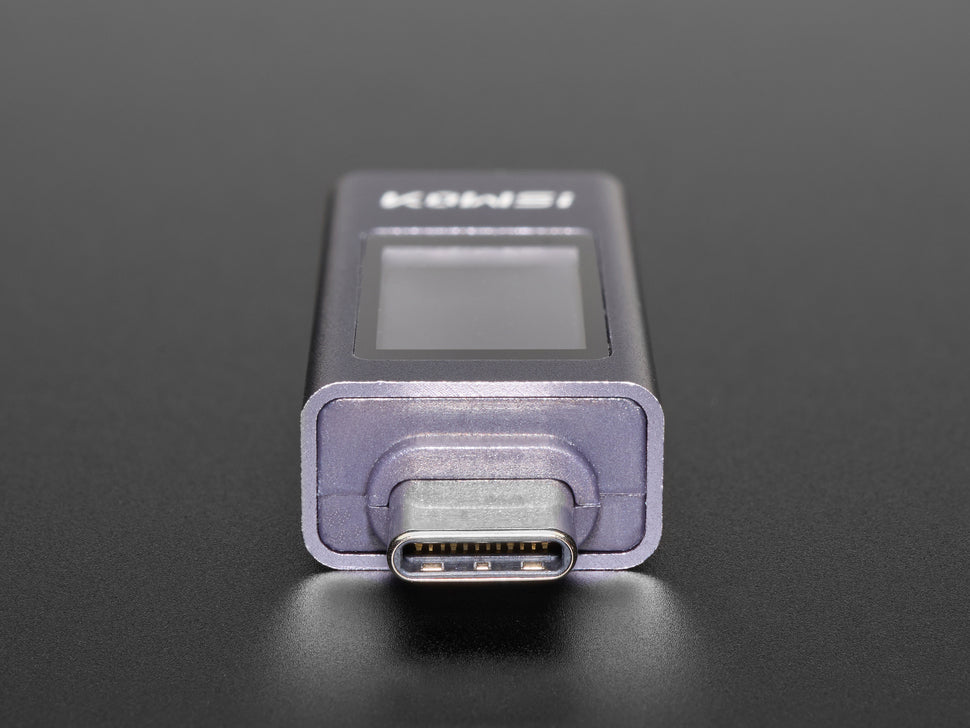

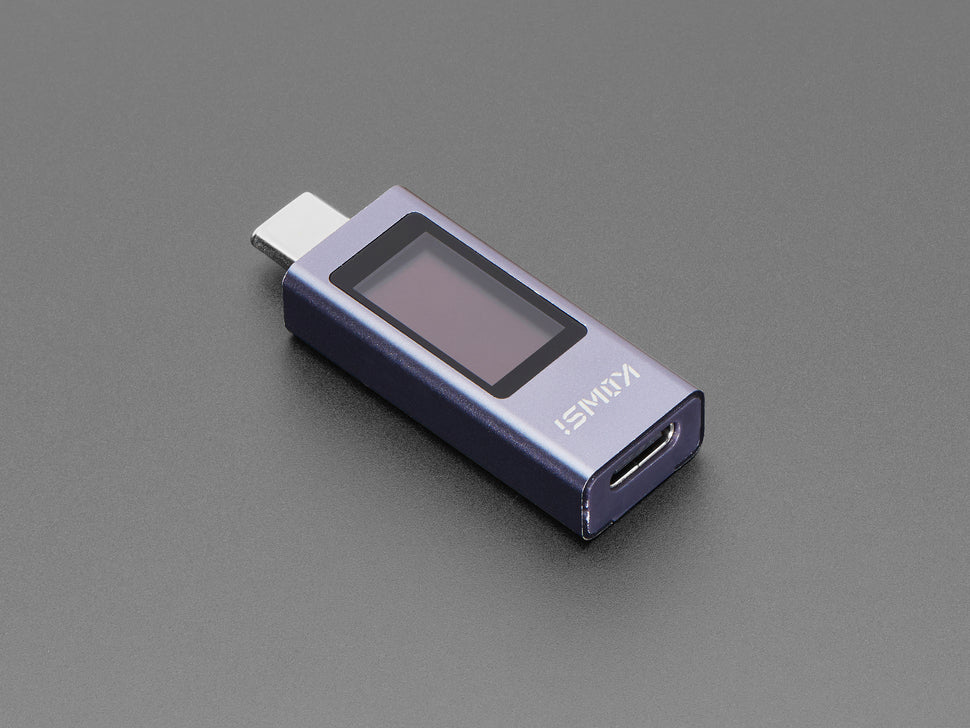

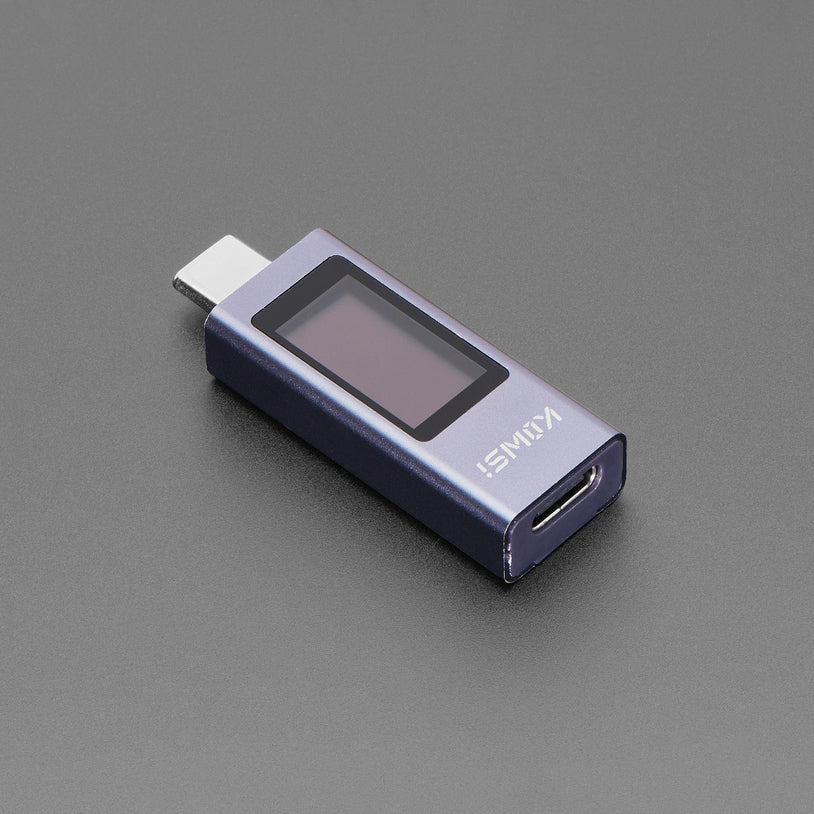

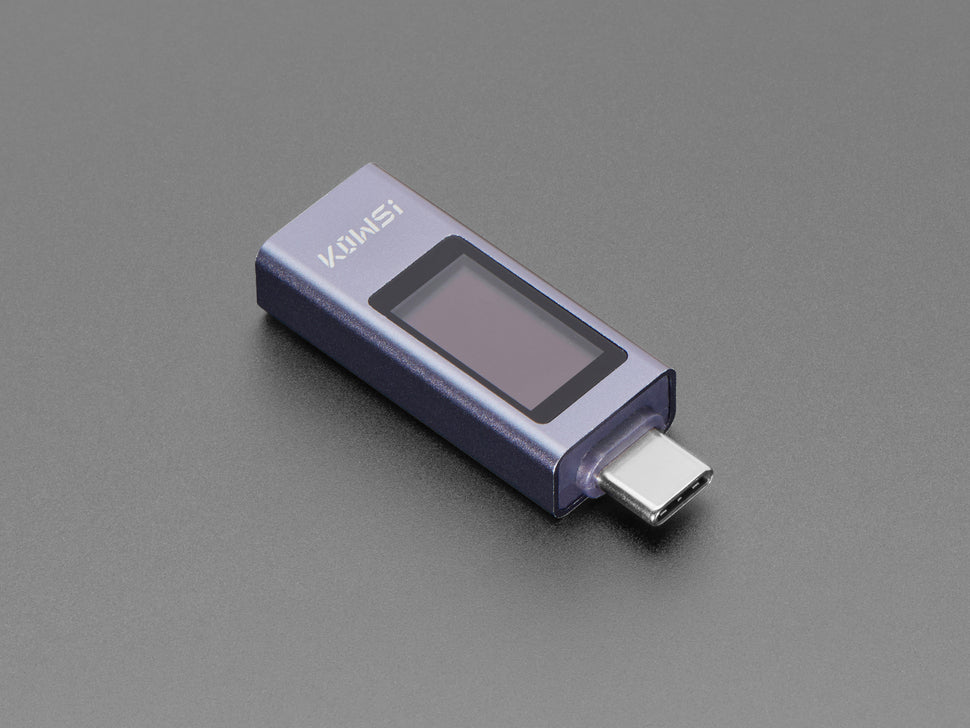

Monitor your devices in real time with this compact USB-C power meter. It provides instant readings of voltage, current, and power, along with peak values, so you can see exactly how your devices are charging.

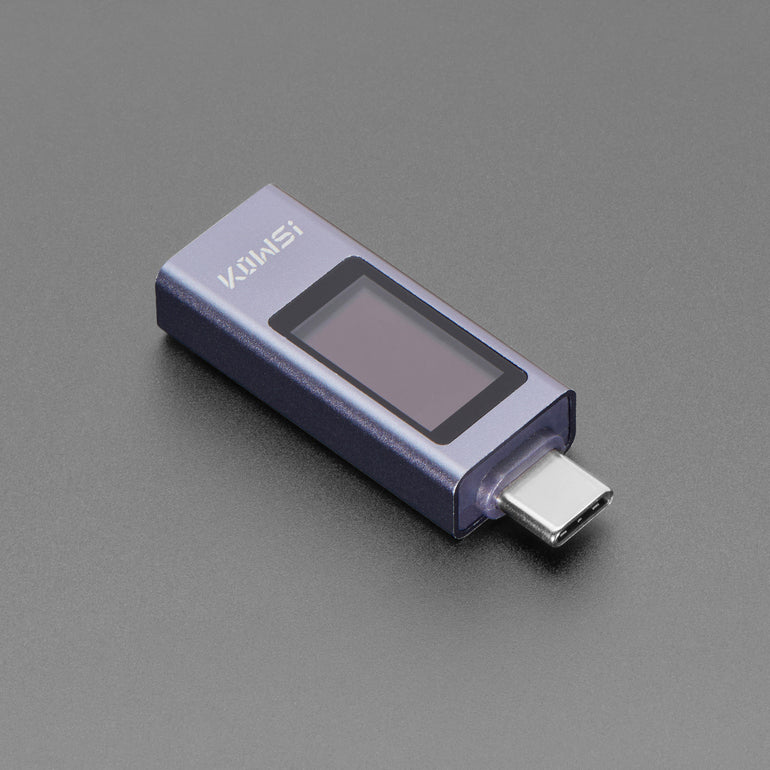

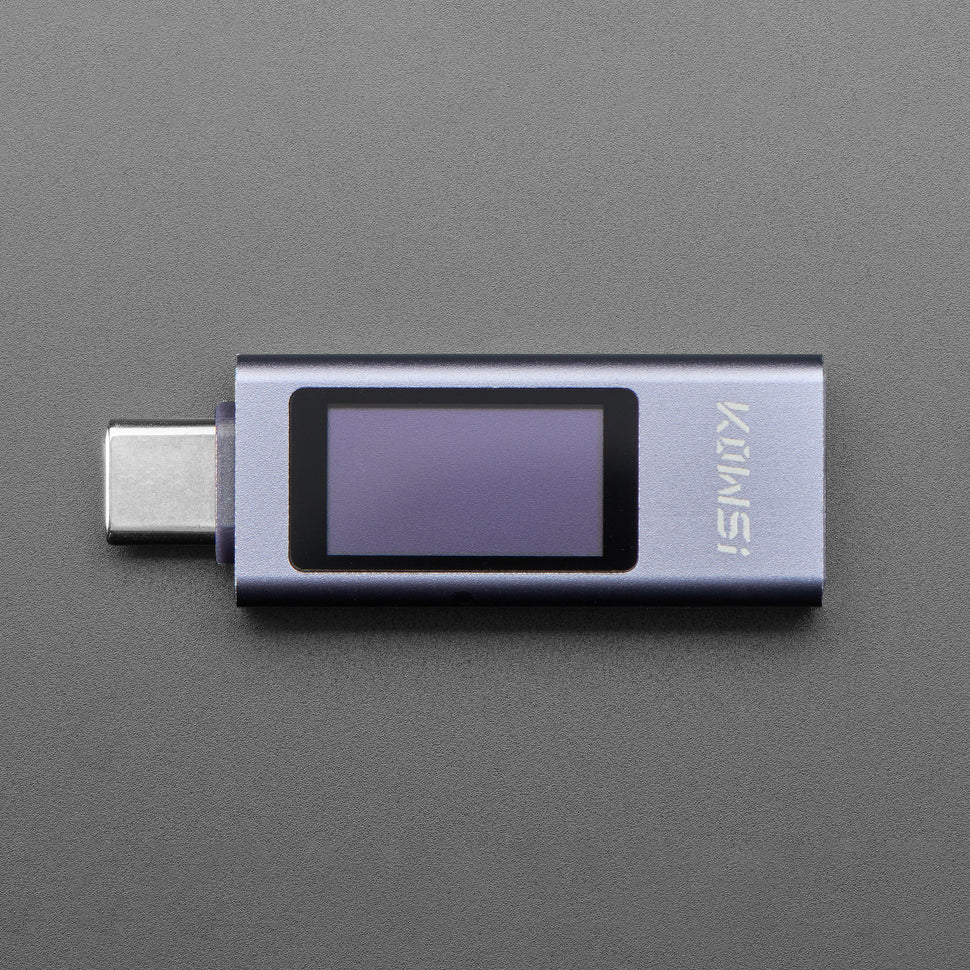

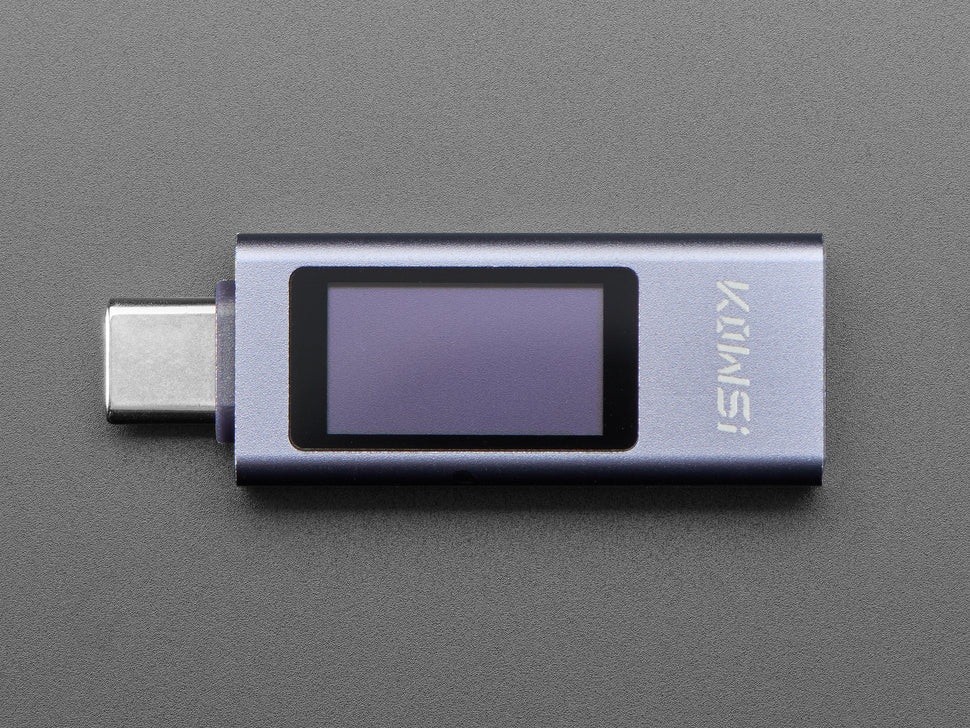

About the size of a Tootsie Roll, it features a crisp 18 mm × 10 mm OLED display that clearly shows voltage, watts, amps, and mAh. It’s perfect for testing chargers, cables, and devices without the need for extra tools. Beyond the basics, it also displays ambient temperature at the press of a button and tracks cumulative watt-hours and milliamp-hours over time thus no manual calculations or logging required.
Lightweight and portable, this little meter is an all-in-one power management solution. one can use it for analyzing USB Power Delivery projects or for quick power checks on circuits when you don’t want to set up a full bench supply, making it just as handy in the lab as it is on the go.
Specifications:
- Voltage 4-30V
- Current 0-12A
- Timing 0-99 hours
- Power 0-360W
- Capacity 0-99999MAH
- Current Direction Indicator.
- Record the maximum power recorded.
- Record a maximum current measurement.
- Record a maximum voltage at a single point. 10: Electricity 0-99999WH
- CPU temperature

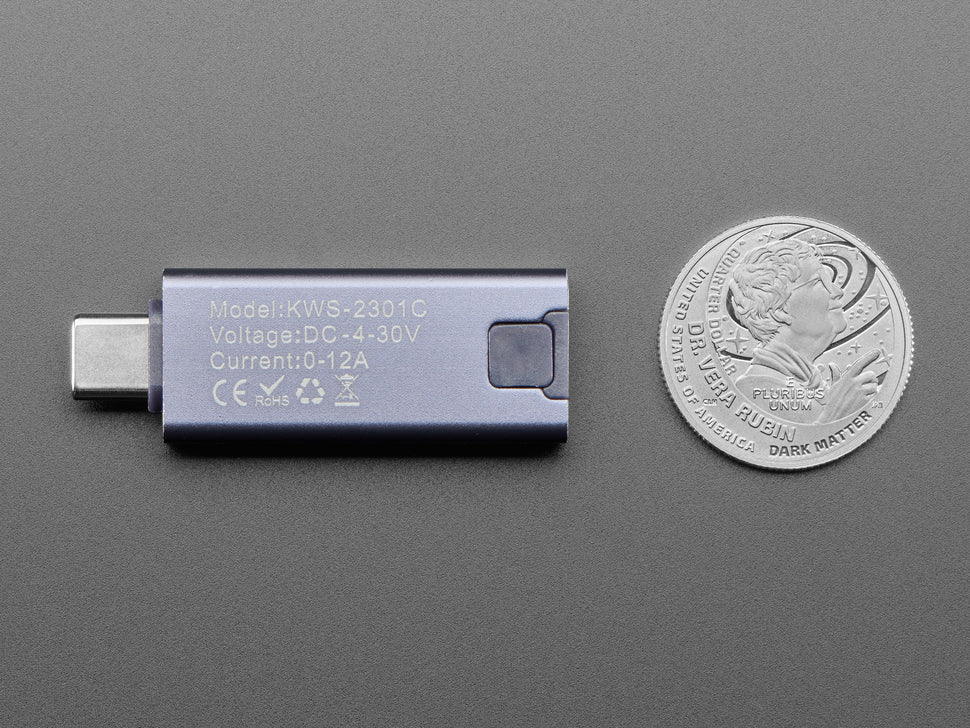

- Dimensions (excluding USB-C connector): 38mm x 16.4mm x 9mm
Product Weight: 7.8g / 0.3oz
