Description

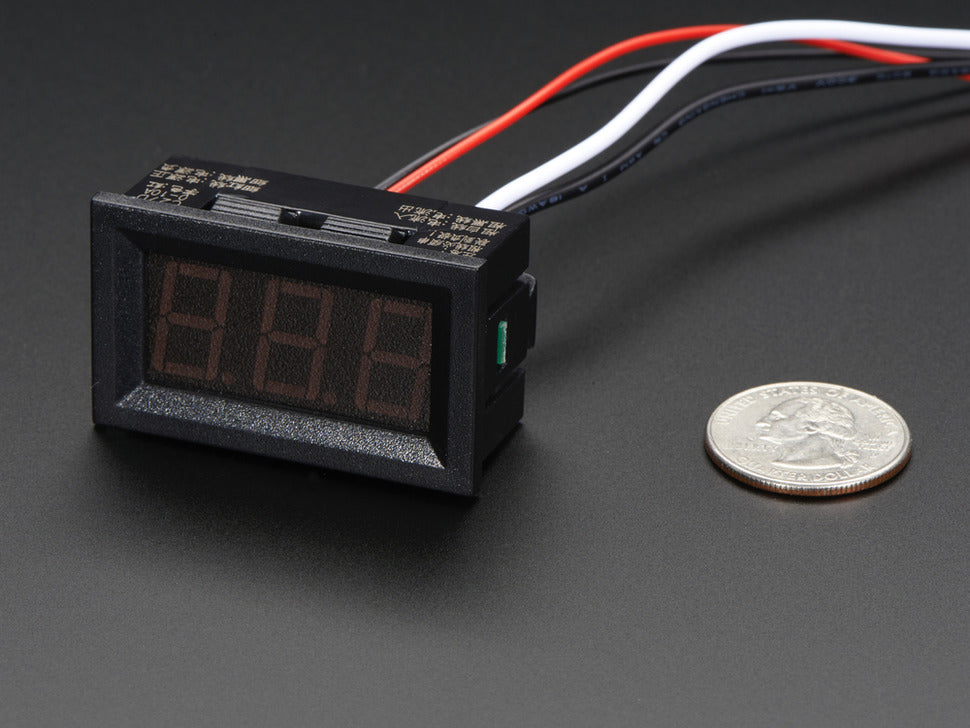

Monitor your projects with precision using the ADAFRUIT Panel Current Meter – 0 to 9.99A. Compact, reliable, and easy to install, this digital panel meter is perfect for measuring current in a wide range of DIY electronics, robotics, and power supply applications. Its bright, easy-to-read display ensures accurate readings at a glance, making it an essential tool for makers, engineers, and hobbyists.
Designed for panel mounting, it integrates seamlessly into enclosures and control panels, providing real-time current monitoring up to 9.99 amps.
Power Specifications:
- 4.5V to 30V DC power
- 001-9.99 Amp DC current sensing
- 14cm long wires, 26 AWG for power wires, 20 AWG for current wires
- 0.01 ohm shunt
- 15-25mA draw
- Accuracy is about 4%, better at currents over 2A

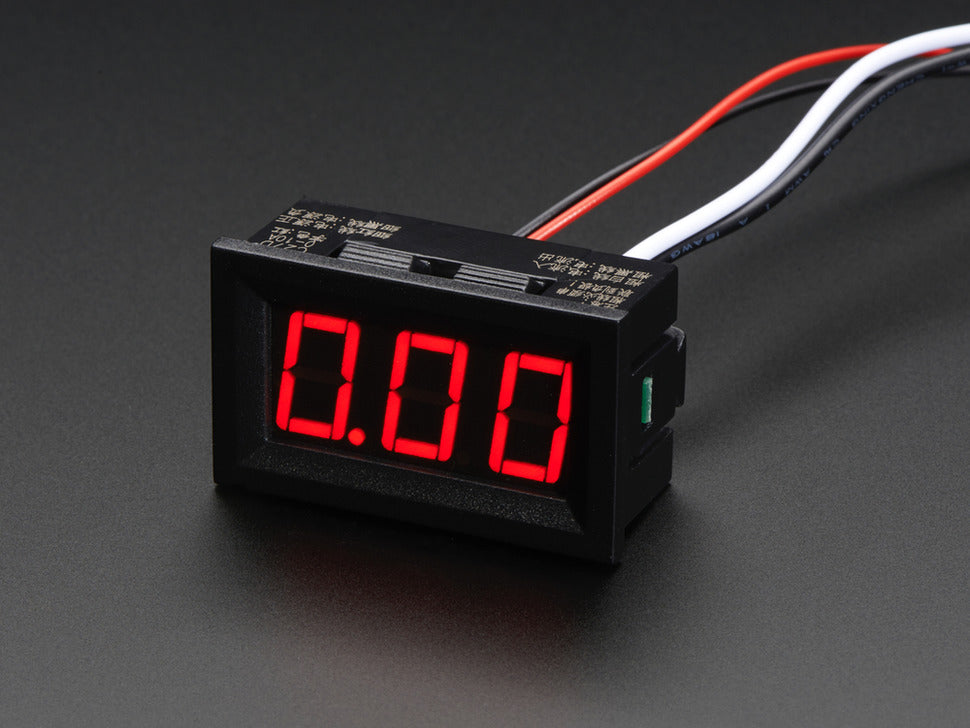

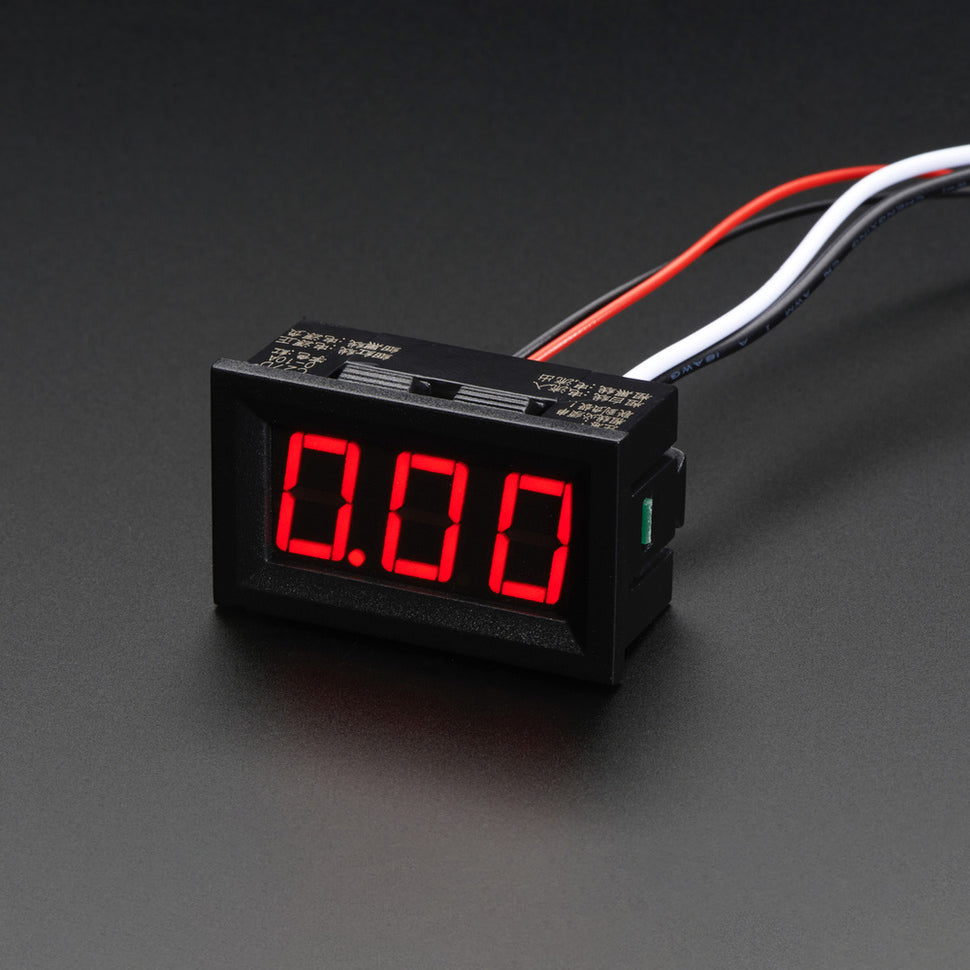

- Red LED display
- Reverse polarity protected

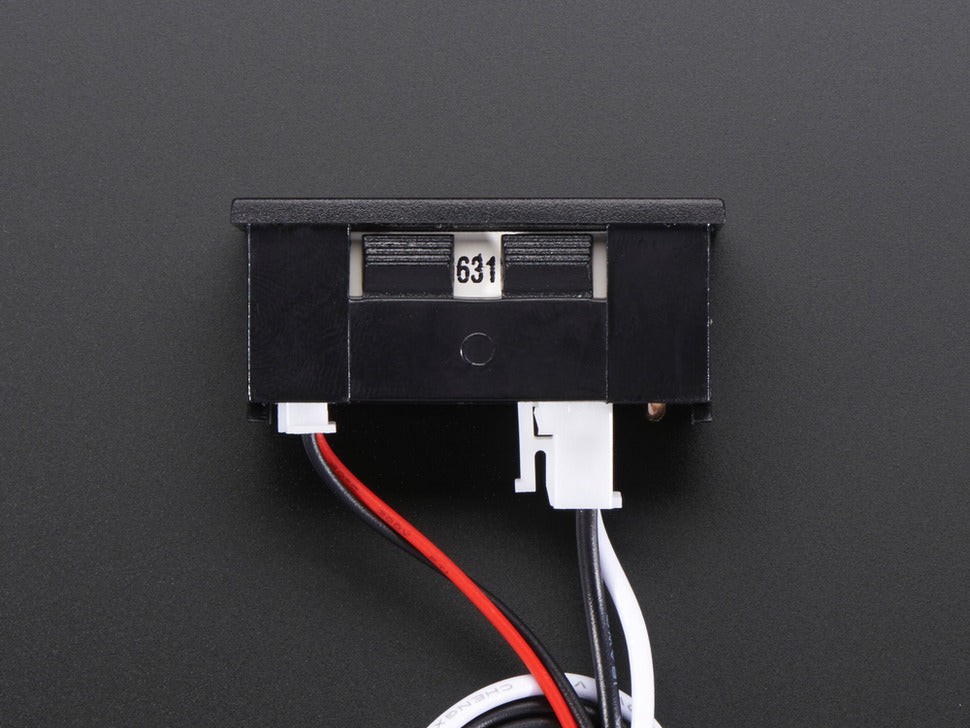

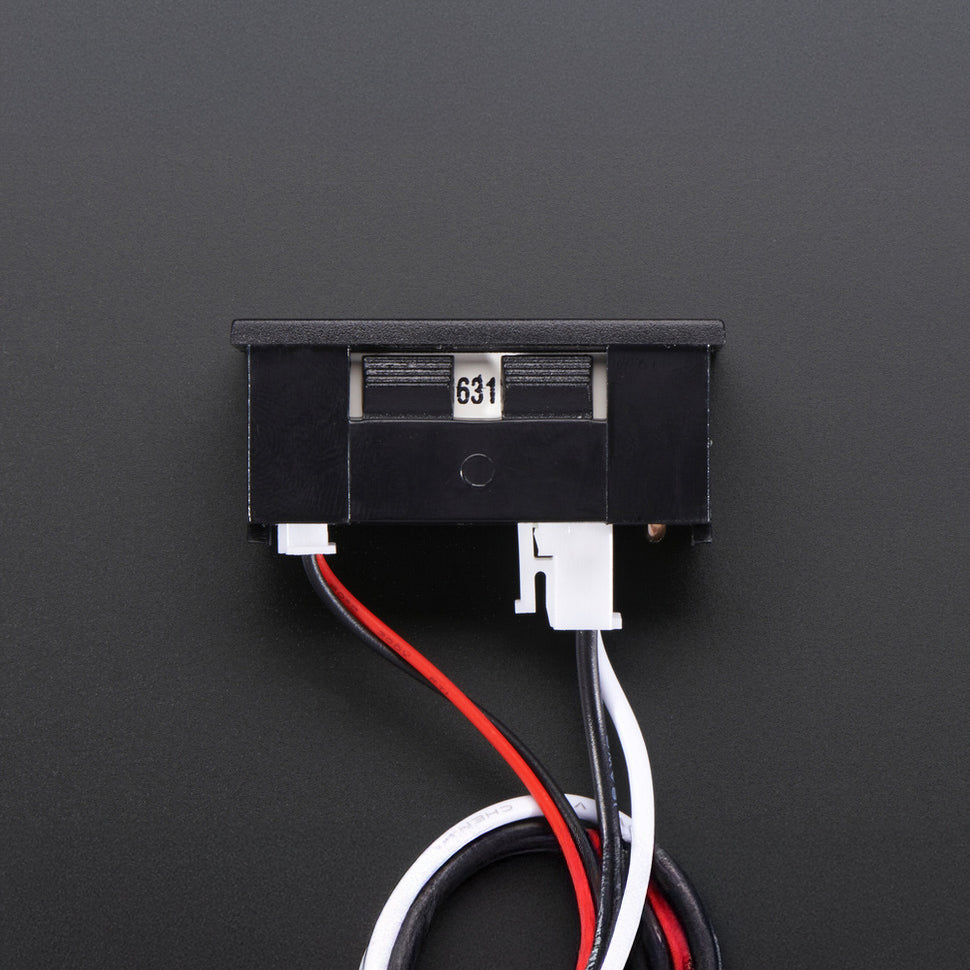

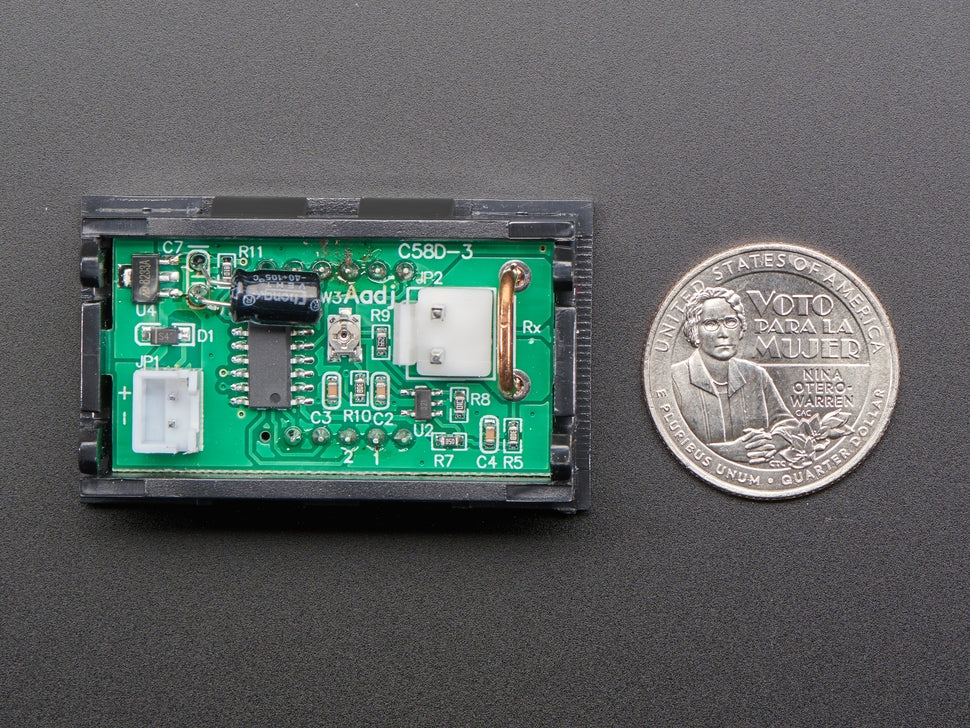

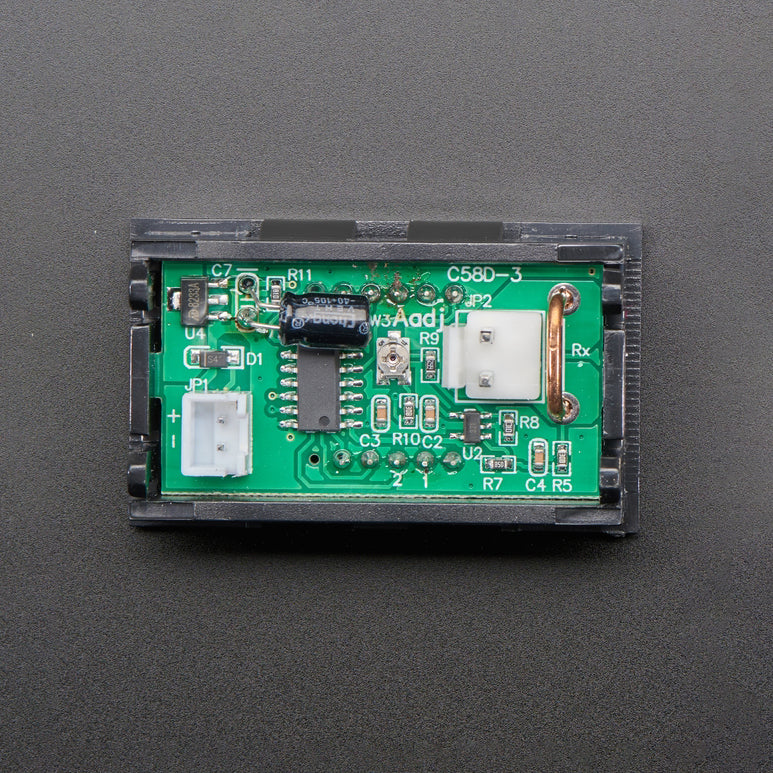

NOTE: The mini trim potentiometer on the back is for calibration of the current measurement, and one shouldn't have to adjust it unless the measurements are off and you have calibration equipment.
