Description
These ADAFRUIT three-position lever connectors join up to three copper conductors without screws or solder. Lift a lever, insert the stripped wire and close it again to make a removable connection for compatible 12–24 AWG solid, stranded or fine-stranded wire.
They are useful for prototypes, lighting, enclosure wiring and serviceable electrical connections where wires may need to be disconnected later. Strip approximately 11 mm of insulation and always confirm that the voltage and current markings on the supplied connectors are suitable for the intended circuit.
Why you’ll love it
- No screwdriver required: Each conductor is secured by its own snap-action lever.
- Reusable connection: Open the lever to remove or replace a wire without cutting it.
- Confirmed conductor range: Accepts 12–24 AWG copper wire according to the WAGO 221-413 datasheet.
- Three commoned positions: Join or distribute one electrical potential across three conductors.

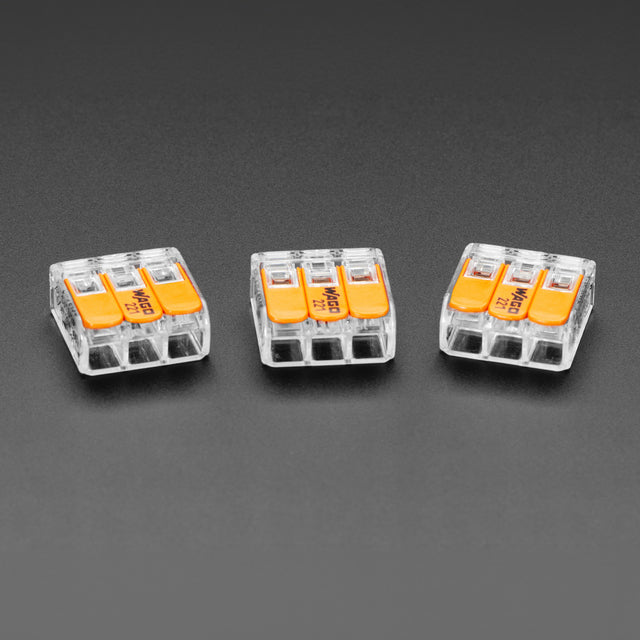

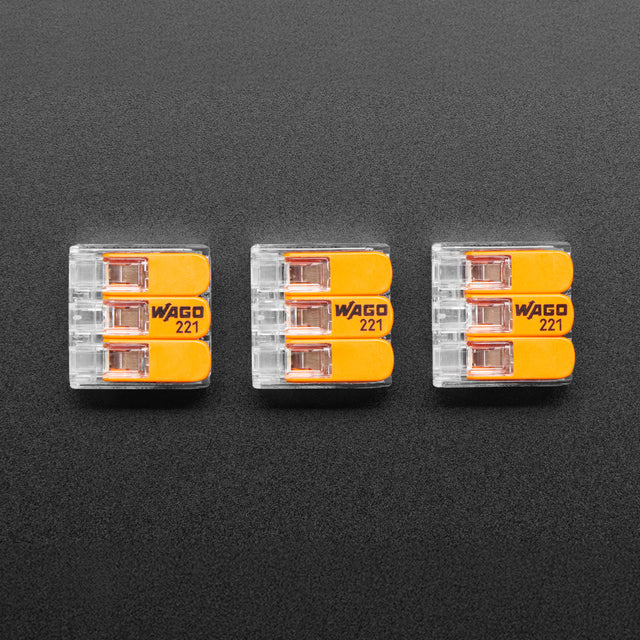

- Pack of three: Enough connectors for several small wiring joints.
Technical specifications
- Positions: 3
- Connection style: lever-operated CAGE CLAMP®
- Conductor material: copper
- Conductor range: 12–24 AWG; solid and stranded 0.2–4 mm²; fine-stranded 0.14–4 mm²
- Strip length: 11 mm
- Package quantity: 3 connectors
