Description
Take the complexity out of building connected devices with the ARDUINO MKR IoT Carrier R2, a powerful, all-in-one development platform tailored for rapid Internet of Things (IoT) prototyping. Designed to work seamlessly with the Arduino MKR board series, this carrier brings together essential hardware in a compact, modular design and no breadboards or external wiring is required.
With built-in environmental sensors, a vibrant color display, capacitive touch buttons, and Grove connectors for easy expansion, the MKR IoT Carrier R2 enables smart home, automation, and environmental monitoring projects straight out of the box.
Why choose the MKR IoT Carrier R2?

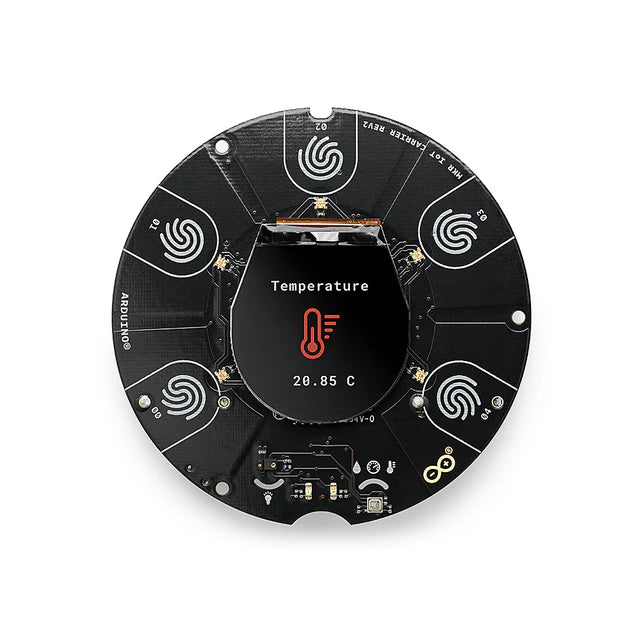

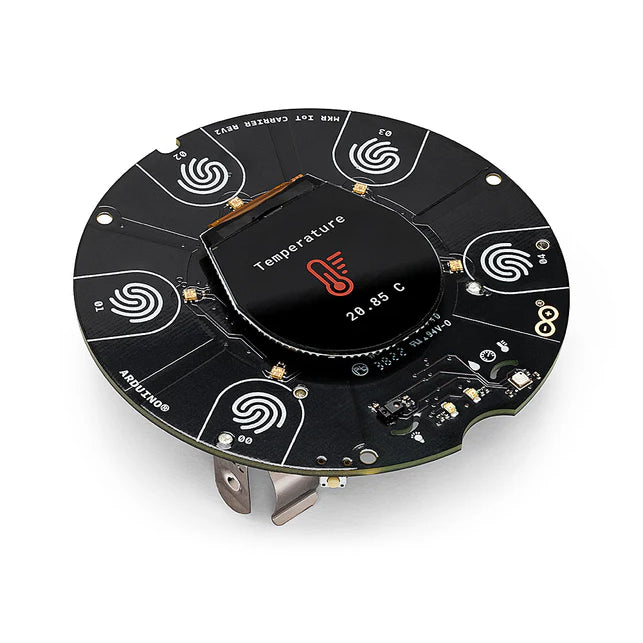

- Integrated OLED Display – Visualize sensor data, menus, and system feedback in real time
- Touch Interface – Control your project through responsive capacitive touch buttons
- Built-in Sensors – Monitor temperature, humidity, light, pressure, and motion effortlessly
- Grove Connector Ready – Plug in compatible sensors and modules instantly—no soldering needed
- Plug & Play with MKR Boards – Compatible with MKR WiFi 1010, MKR WAN 1310, MKR NB 1500 & more
The built-in sensors, circuits, and display will leave you free to focus on prototyping and programming your next IoT projects. Here is a board demo.
Ideal For:
- IoT Learning & Prototyping
- Smart Home Applications
- Environmental Monitoring
- STEM Education & Workshops

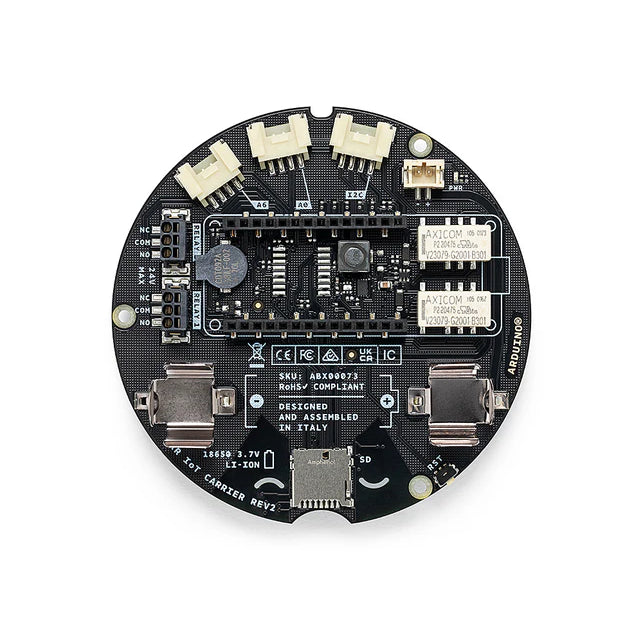

Specifications
| Humidity, temperature barometric and VOC sensor | BME688 |
| IMU | LSM6DSOX |
| Ambient light, proximity, color and gesture sensor | APDS-9960 |
| Capacitive buttons | 5 (Q-touch Pad) |
| Actuators | Buzzer, 5 RGB LEDs |
| 24V Relays | 2 (V23079) |
| Display | KD013QVFMD002-01 |
| Grove connectors | 2 connected to analog pins (A0/A6), 1 connected to I2C |
| Micro SD card slot | Micro SD card not included |
| Battery holder | 18650 Li-Ion rechargeable battery (battery not included) |
