Description
Unlock the full potential of your Portenta board with the ARDUINO PRO Portenta Proto Kit ME, a professional-grade prototyping solution tailored for embedded and industrial innovation. This kit provides a spacious, high-quality soldering area that empowers developers to quickly integrate sensors, custom circuits, and third-party modules with confidence.
Whether you're building IoT solutions, testing automation logic, or developing a smart edge device, the Proto Kit ME offers unmatched flexibility for rapid iteration and expansion.
Why choose the Portenta Proto Kit ME?
- Professional Expansion Board – Seamlessly integrate new hardware into your Portenta projects
- Custom Prototyping Area – Solder headers, connectors, sensors, or ICs directly to your circuit
- Built for Advanced Applications – Ideal for industrial, automation, and high-performance embedded systems
- Reliable and Durable Design – Engineered for long term development and robust testing cycles
Specifications
| Kit | |||
|---|---|---|---|
| Name | Arduino Portenta Proto Kit ME | ||
| SKU | AKX00073 | ||

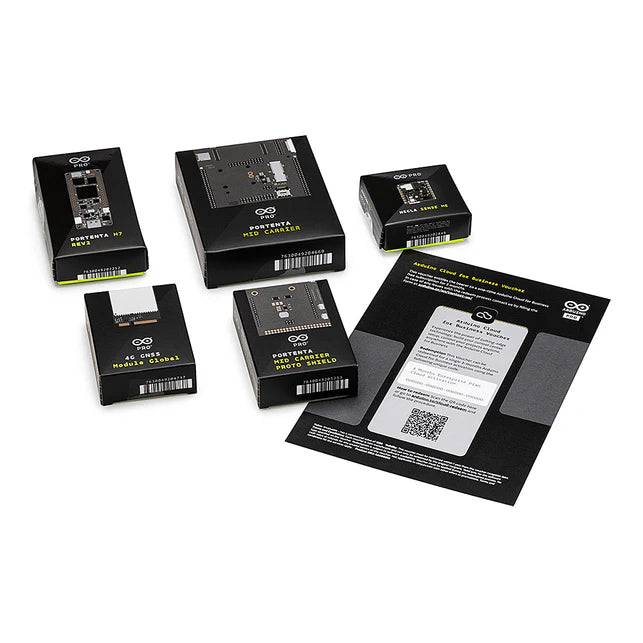

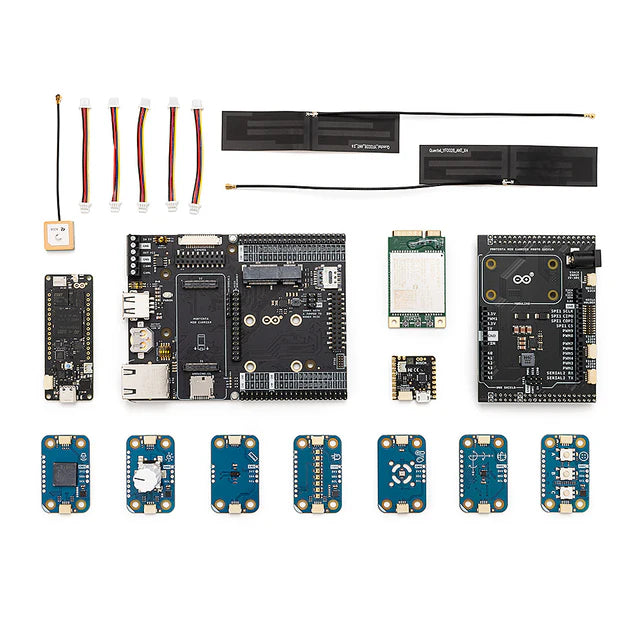

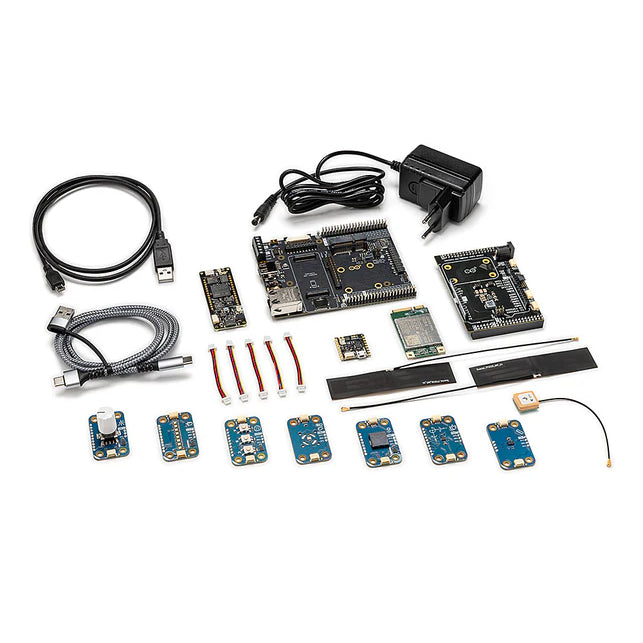

| Components | |||
| Portenta H7 | Dual-core processing (ARM Cortex® M7 at 480 MHz and M4 at 240 MHz) microcontroller with advanced graphics capabilities at an industrial operating range (-40 °C to 85 °C). | ||
| Nicla Sense ME | Equipped with advanced sensors for motion, pressure, temperature, humidity and indoor air quality monitoring, this board combines Bluetooth® connectivity with edge AI capabilities in a compact design (22.86 mm x 22.86 mm). | ||
| Portenta Mid Carrier | Expands the connectivity of Portenta family boards by providing Ethernet, USB-A, mPCIe, CAN, MicroSD support and 4G connectivity via the Arduino Pro 4G Module. It includes debugging features via onboard JTAG pins and supports additional interfaces such as I2C, SPI, PWM, digital and analog I/Os. | ||
| Portenta Mid Carrier Proto Shield | Supports Nicla family boards, Modulinos, Arduino UNO shields and includes ESLOV (x2) and Qwiic (x1) connectors. | ||
| Arduino Pro 4G Module Global | Provides global LTE Cat.4 connectivity, 4G support and GNSS capabilities. | ||
| Modulinos | KNOB | Encoder with a push button for fine value adjustments (x1) | |
| PIXELS | 8x RGB LEDs for visual feedback (x1) | ||
| DISTANCE | Time-of-Flight sensor for measuring proximity (x1) | ||
| MOVEMENT | 6-axis IMU to capture movement (x1) | ||
| BUTTONS | 3x push buttons and 3x yellow LEDs (x1) | ||
| BUZZER | For generating alarms or tunes (x1) | ||
| THERMO | For temperature and humidity readings (x1) | ||
| Power | |||
| Input Voltage | +7-30 VDC | Via Portenta Mid Carrier Proto Shield onboard dedicated power jack. | |
| +5 VDC | Through USB-C® connector of the Portenta H7 or in the Portenta Mid Carrier terminal pins. | ||
