Description

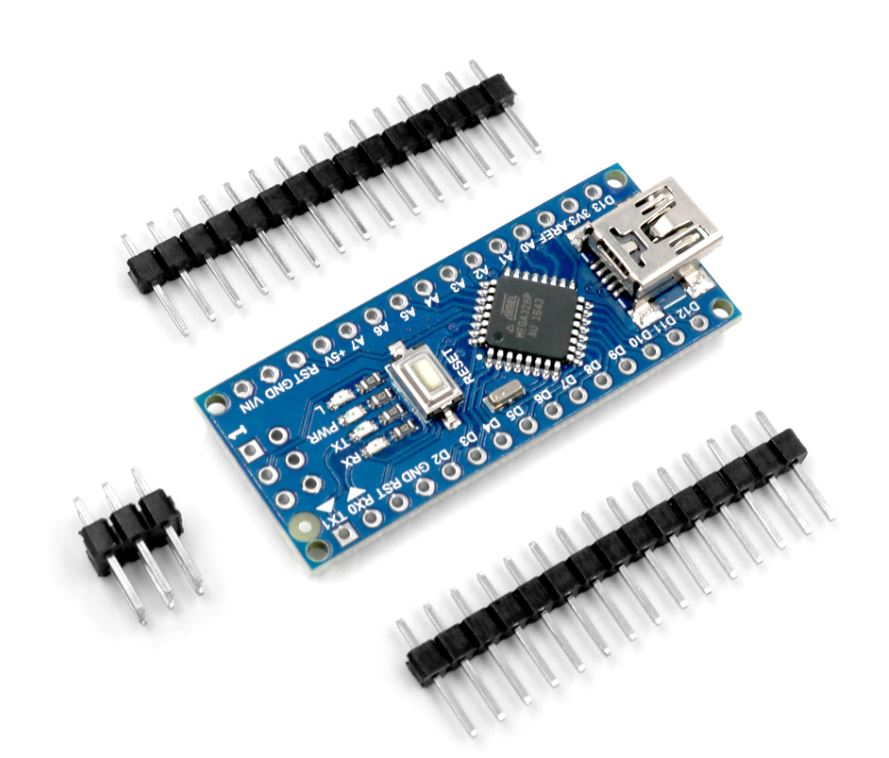

Small and compact Arduino Nano Clone. Compatible with the Arduino IDE and works with the standard CH340G USB to serial IC, making interfacing with your computer quick and easy.
Specifications
- CH340G Replace FT232RL
- Operating Voltage(logic level):5V
- 8 analog inputs ports:A0 ~ A7
- 14 Digital input / output ports:TX,RX,D2 ~ D13
- 6 PWM ports:D3, D5, D6, D9, D10, D11
- 1 pairs of TTL level serial transceiver ports RX / TX
- Using Atmel Atmega328P-AU MCU
- Support USB download and Power
- Support for external 5V ~ 12V DC power supply
- Support power supply by 9V battery
