Description

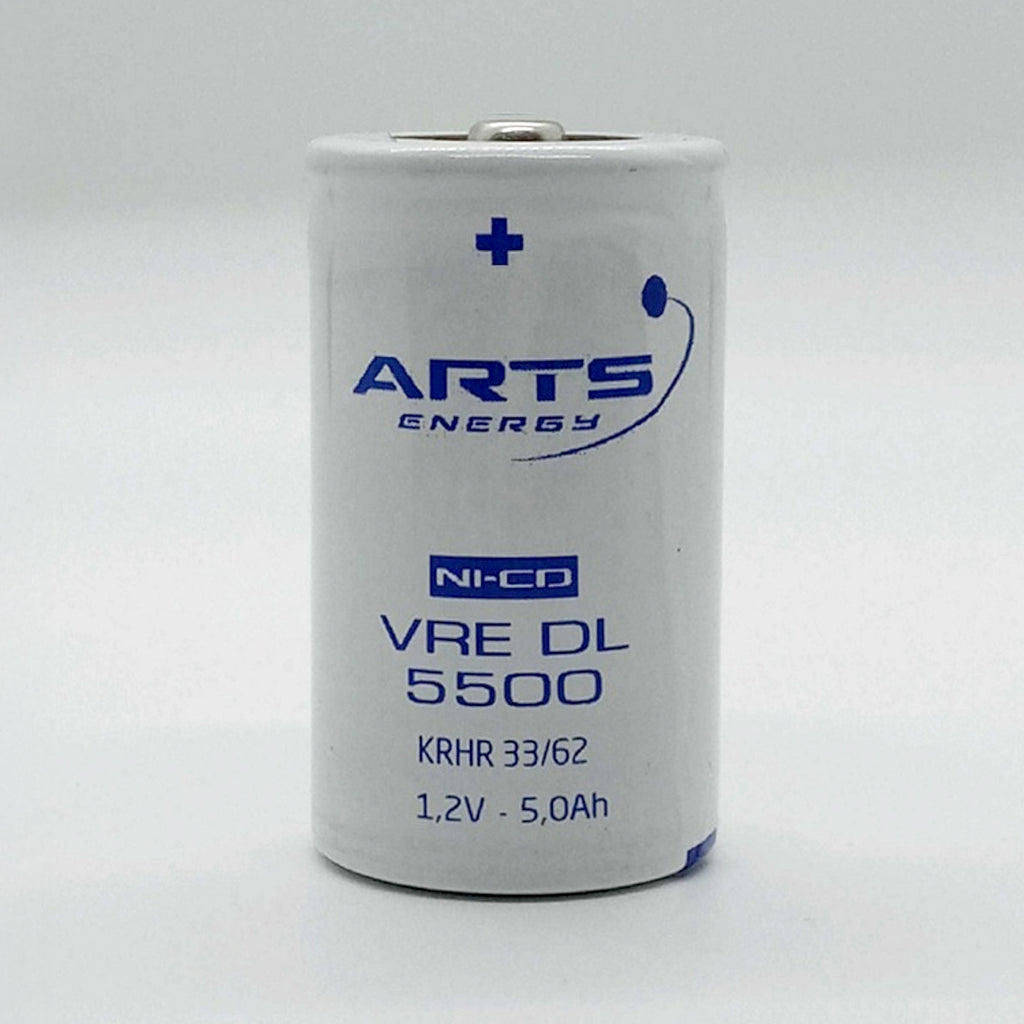

VRE DL 5500, 1.2 Volt, 5500 mAh Arts Energy NICD Low Button Top Battery
Features
- Electric bicycles, scooters & wheelchairs
- Professional applications
- Professional Lighting
- Lawn and gardening tools
- Vacuum cleaners
- Super high capacity
- Fast charge
- Good storage ability
- Excellent cycling performance
- Sintered positive electrode
- Plastic bonded negative electrode
Specifications
|
Electrical characteristics |
|||
|
Nominal Voltage |
1.2 Volts |
||
|
Typical capacity * |
5500 mAh |
||
|
IEC minimum capacity * |
5000 mAh |
||
|
IEC designation |
KRHR 33/62 |
||
|
Impedance at 1000 Hz (mΩ) |
< 4 |
||
|
* Charge 16 h at C/10, discharge at C/5 |
|||
|
Dimensions |
|||
|
Diameter |
32.15 (mm) +0.10 |
||
|
Height (mm) |
58.2 (mm) ± 0.4 |
||
|
Top projection |
1.4 (mm) ± 0.2 |
||
|
Top flat area diameter |
5.6 ± 0.1 |
||
|
Weight |
150 (g) |
||
|
Dimensions are given for bare cells |
|||
|
Charge Conditions Rate |
Time (h) |
Temp. (°C) |
Charge current (mA) |
|
Fast * |
~ 1 |
+10 to +40 |
up to 5000 |
|
Standard |
16 |
+5 to +50 |
500 |
|
Trickle** |
150 |
||
|
* End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge |
|||
|
Maximum discharge current |
|||
|
Continuous (A) at + 20°C |
50 |
||
|
Peak (A) at + 20°C* |
150 |
||
|
* Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell |
|||
