Description

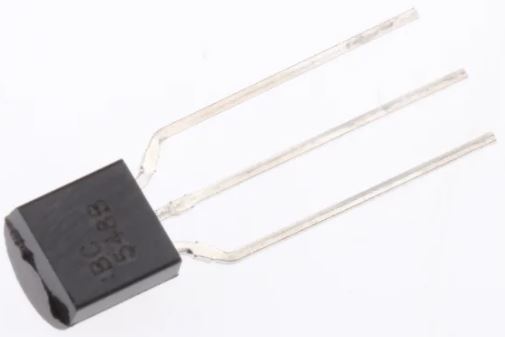

BC548B NPN Transistor
Specifications
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 30 V |
| Maximum Emitter Base Voltage | 6 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 5.1 x 4.1 x 4.7mm |
