Description
The inlet port/outlet port of the material detection module takes the rotating funnel opening design, which reduces the resistance of the feeding material.
Optimization of the position of the internal switch gear, and optimization of the position of the inlet and outlet channels.
The snap design between the base and the outer casing makes assembly easy
The arrow direction of the inlet position is silk screen, which is convenient for distinguishing the direction of the inlet and the outlet.
Made from ABS + PC new material mix, the product is very beautiful with matte texture
Function of Filament Detection Module
- To detect Filament in 3D printer run-out,pause detection,it automatically stops the 3D Printer when the filament runs out.Optimize the inlet port/outlet port of the material detection module, to reduce the resistance of the feeding material.

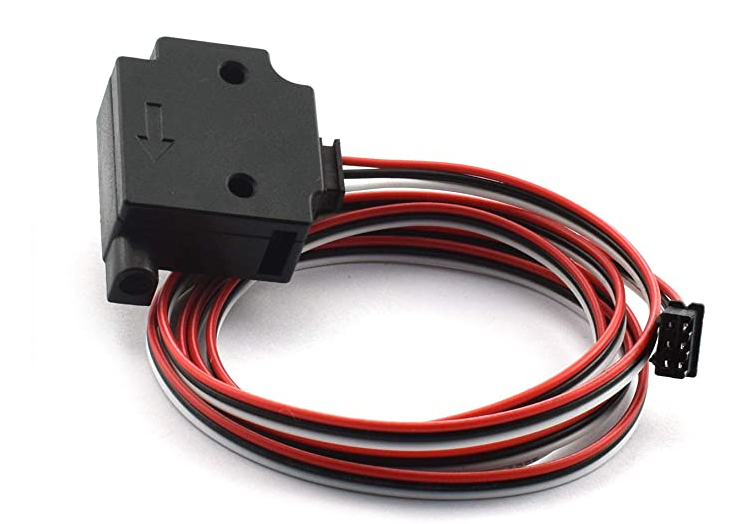

Filament Break Detection Module

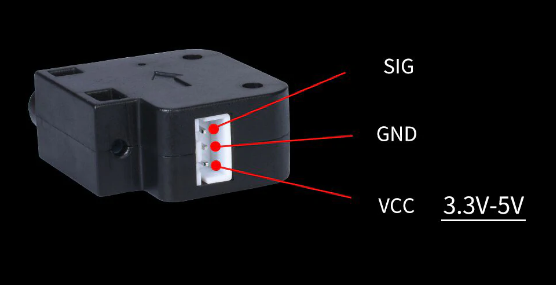

- When there is material, the level signal of the detection port should be high level. When there is no material, the level signal of the material port goes low, and the system detects one. If the high-to-low transition is determined, the material is considered exhausted and a pause command is executed.
Detection Method
- The material detection module uses the level jump detection method.
Filament Size

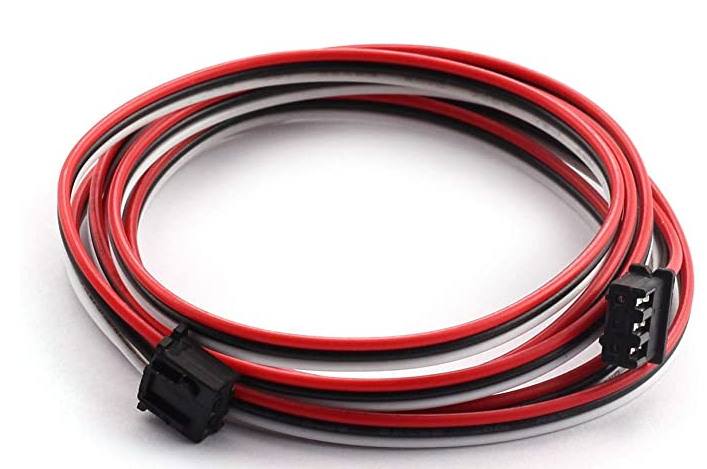

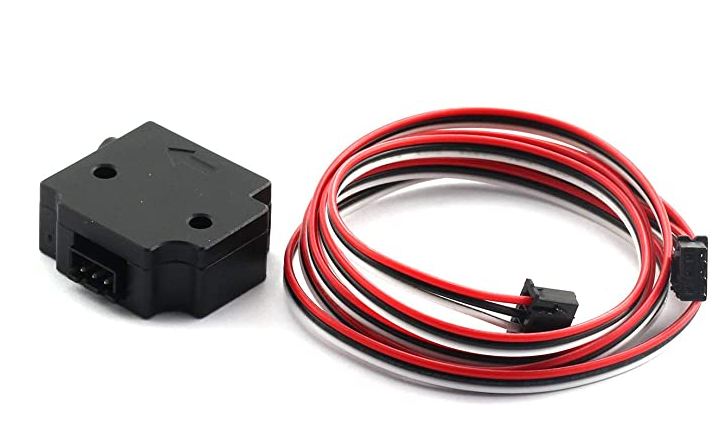

- It Suitable for 1.75mm Filament with 1m cable which making your printing work goes smooth and relieved.
