Description

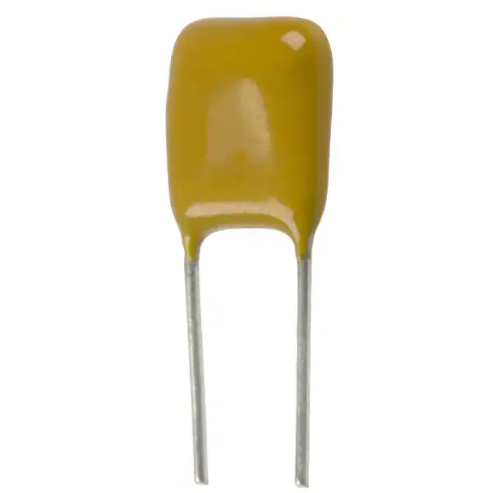

8.2pF Capacitor ±0.5pF 200V Radial
Specifications
| Manufacturer | KEMET |
|---|---|
| Series | GoldMax 300 Comm C0G |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 8.2pF |
| Tolerance | ±0.5pF |
| Voltage - Rated | 200V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
|
Features |
Low ESL |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.150" L x 0.100" W (3.81mm x 2.54mm) |
| Height - Seated (Max) | 0.183" (4.66mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.100" (2.54mm) |
| Lead Style | Straight |
