Description

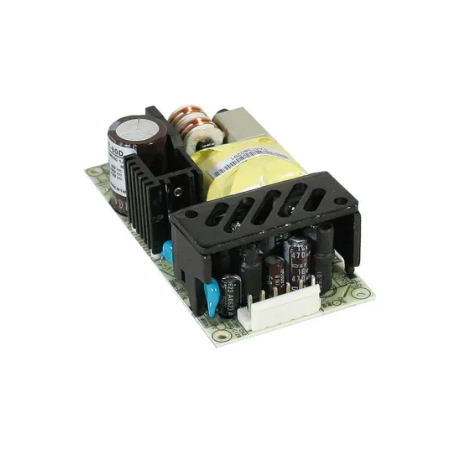

The MEAN WELL RPT-60D 39.9W Triple Output Medical Power Supply is a compact open-frame AC/DC switching power supply designed for applications requiring multiple DC output voltages from a single unit. With 3.3V, 5V and 12V DC outputs, it provides a reliable power solution for embedded electronics, control systems and medical equipment.
Its compact 2 × 4-inch design combines high power density with efficient, dependable operation. Medical safety approval and low leakage current make it particularly well suited to medical and other sensitive electronic applications, while built-in protection helps safeguard both the power supply and connected equipment.
Why you'll love it
- Triple DC output: Provides 3.3V, 5V and 12V DC outputs from one compact power supply.
- Compact open-frame design: High power density in a space-saving 2 × 4-inch format.
- Medical approved: Designed to meet medical safety requirements with low leakage current.
- Reliable performance: Built for high efficiency, long service life and dependable operation.
- Built-in protection: Includes short-circuit, overload and overvoltage protection.
- Flexible input: Universal AC input makes it suitable for a wide range of installations.
Technical specifications
- Product type: Open-frame switching power supply
- Model: RPT-60D
- Rated power: 39.9W
- Outputs: 3.3V DC / 5V DC / 12V DC
- Output current: 5A (3.3V) / 3A (5V) / 0.7A (12V)
- Input voltage: 90–264V AC / 127–370V DC
- Form factor: Open frame
- Size: Approx. 2 × 4 inches
- Leakage current: <200µA
- Protection: Short circuit, overload and overvoltage
- Peak capability: Supports an additional 10% peak current for up to 10 seconds
- Applications: Medical equipment, embedded electronics, control systems and other multi-output power applications
