Description

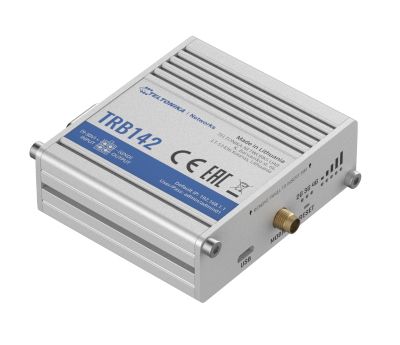

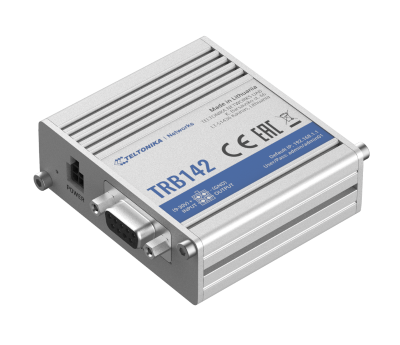

/TRB142 comes with a widely used RS232 interface for remote device management.
It is equipped with mission-critical LTE Cat 1 capabilities and software based on OpenWRT, hence offering a high degree of customization.
Just like the other TRB series products, it provides a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support.
This gateway is durable, offers a wide range of power supply voltages, and is compatible with Teltonika Networks Remote Management System (RMS).
More information can be obtained on Teltonika's website here
Specifications
MOBILE |
|
Mobile module | 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
SMS/Call | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White list | Operator black/white list |
Band management | Band lock, Used band status display |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
Multiple PDN | Possibility to use different PDNs for multiple network access and services (optional) |
NETWORK |
|
Routing | Static routing |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT |
Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation |
QoS / Smart Queue Management (SQM) (planned) | Traffic priority queuing by source/destination, service, protocol or port |
DDNS | Supported >25 service providers, others can be configured manually |
SSHFS | Possibility to mount remote file system via SSH protocol |
SECURITY |
|
Authentication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
Mobile quota control | Set up custom data limits for SIM card |
WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN |
|
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server services can run simultaneously, L2TPv3 support |
ZeroTier | ZeroTier VPN |
WireGuard | WireGuard VPN client and server support |
SERIAL COMMUNICATION MODES |
|
Modes | Console, OverIP, Modem (Full or Partial control), MODBUS RTU master, MODBUS gateway, NTRIP client (planned) |
MODBUS |
|
MODBUS TCP SLAVE | |
ID filtering | Respond to one ID in range [1;255] or any |
Allow remote access | Allow access through WAN |
Custom registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
MODBUS TCP MASTER |
|
Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
MODBUS RTU MASTER |
|
Suported baud rates | From 300 to 115200 |
Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
Number of data bits | From 5 to 8 |
Number of stop bits | 1 or 2 |
Parity | None, Even, Odd |
Flow control | None, RTS/CTS, Xon/Xoff |
MQTT GATEWAY |
|
Gateway | Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
DNP3 |
|
Supported modes | TCP Master, DNP3 Outstation, RTU Master |
DATA TO SERVER |
|
Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
MONITORING & MANAGEMENT |
|
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
FOTA | Firmware update from sever, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS |
|
CPU | ARM Cortex-A7 1.2 GHz CPU |
RAM | 128 MB (50 MB available for userspace) |
FLASH storage | 512 MB (200 MB available for userspace) |
FIRMWARE / CONFIGURATION |
|
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION |
|
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with build environment provided |
INPUT/OUTPUT |
|
Configurable I/O | 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA (not available in TRB142*2****) |
Output control | HTTP POST/GET, Schedule |
Events | SMS, EMAIL |
I/O juggler | Allows to set certain I/O conditions to initiate event |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max |
Power consumption | < 5 W |
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) |
|

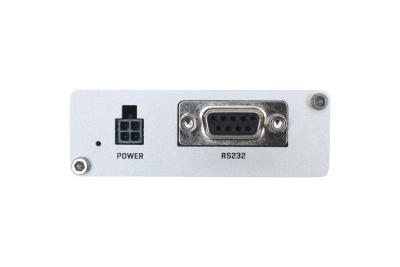

RS232 | 1 x DB9 socket |
I/Os | 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB142*2****) |
USB | 1 x Virtual network interface via micro USB |
Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
Power | 1 x 4 pin power connector |
Anntena | 1 x SMA for LTE |
Reset | Reboot/User default reset/Factory reset button |
PHYSICAL SPECIFICATIONS |
|
Casing material | Aluminum housing |
Dimensions (W x H x D) | 74.5 x 25 x 64.4 mm |
Weight | 135 g |
Mounting options | Bottom and sideways DIN rail, Flat surface |
OPERATING ENVIRONMENT |
|
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
