Description

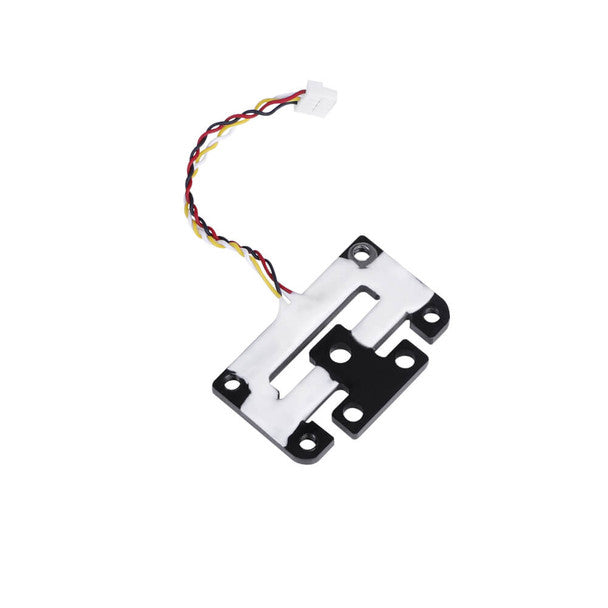

The CREALITY Hi Strain Gauge is the force-sensing component used by the Creality Hi during automatic bed levelling. Fitted above the hotend heatsink, it detects pressure at the nozzle so the printer can measure the build surface and establish the correct first-layer position.
Choose this part when replacing a damaged or faulty strain gauge in a Creality Hi. The sensor is compact and delicate, so confirm the 38 × 23.95 × 3 mm size, 50 mm lead and 4-pin connection before installation.
Why you’ll love it
- Supports automatic levelling: Detects nozzle contact pressure used to measure the build surface.
- Creality Hi fit: Intended specifically for the Creality Hi printer.
- Known dimensions: The gauge size and lead length are provided for comparison.
- Clear connector check: The 4-pin connection helps confirm that you are selecting the correct sensor.
Technical specifications
- Manufacturer: CREALITY
- Product type: Hotend strain gauge for automatic bed levelling
- Dimensions: 38 × 23.95 × 3 mm
- Lead length: 50 mm
- Connector: 4-pin
- Compatible printer: Creality Hi
