Description

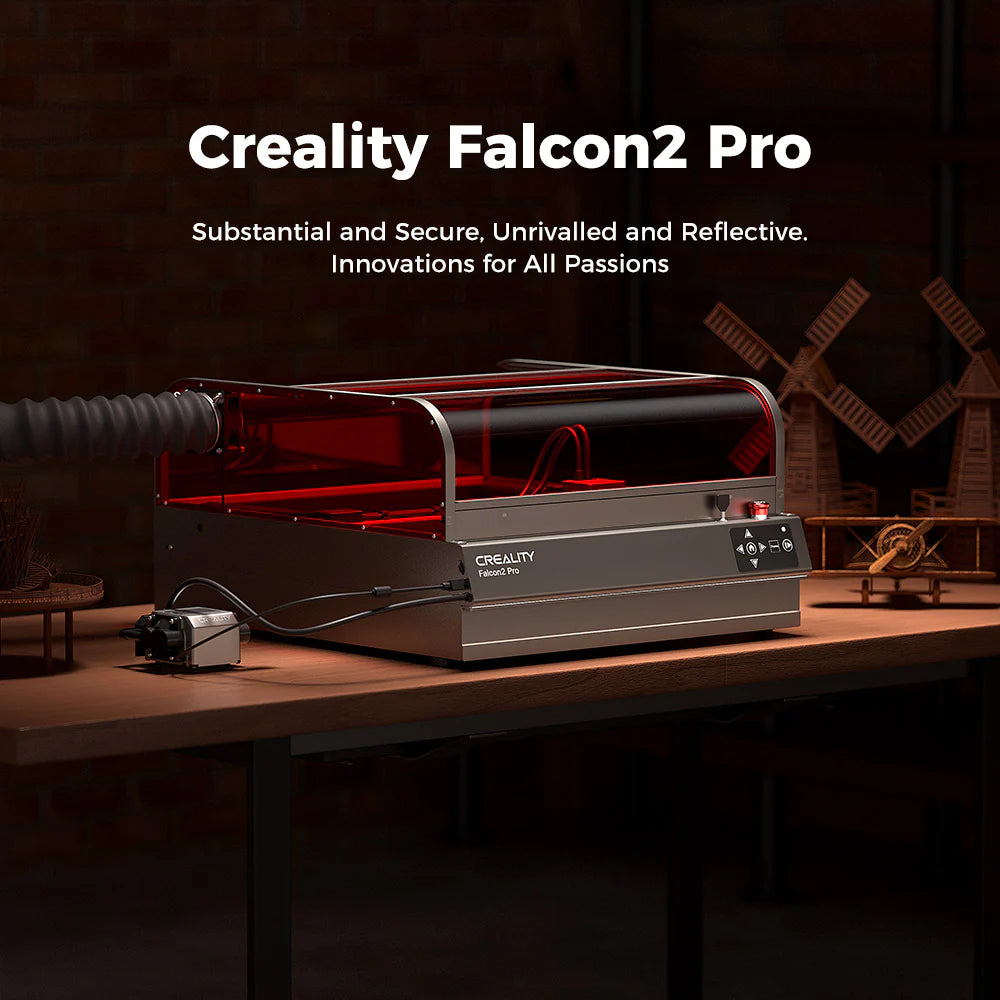

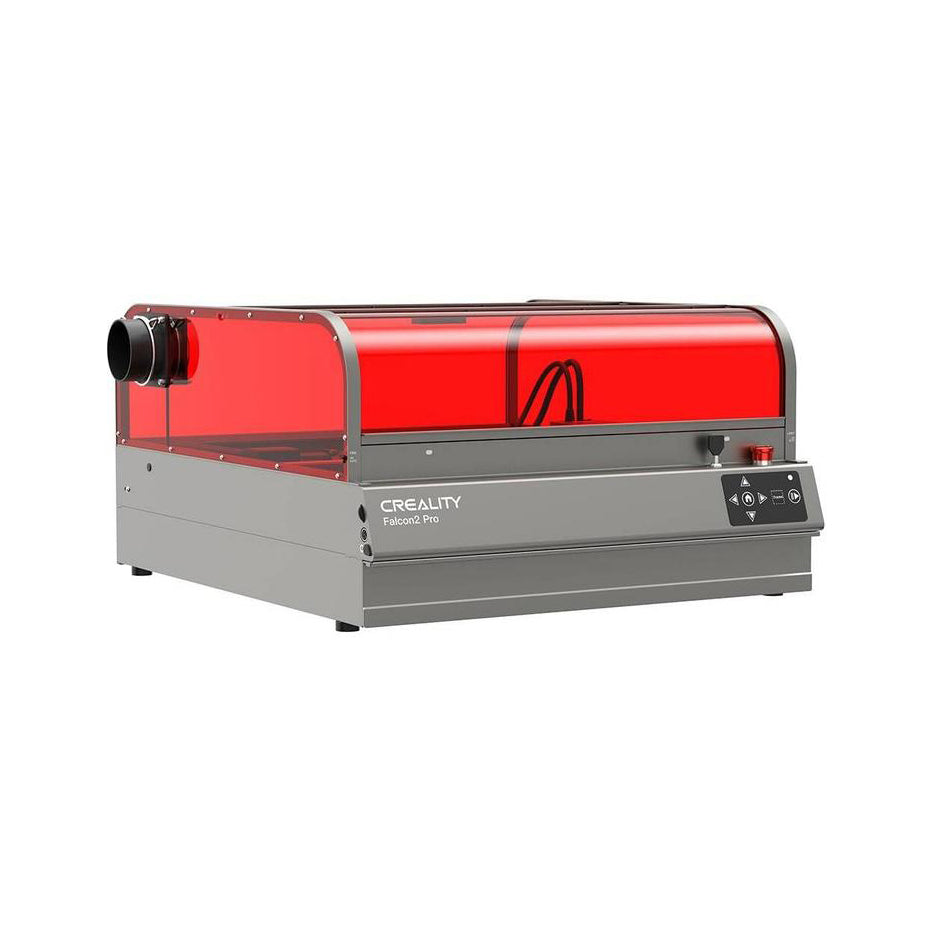

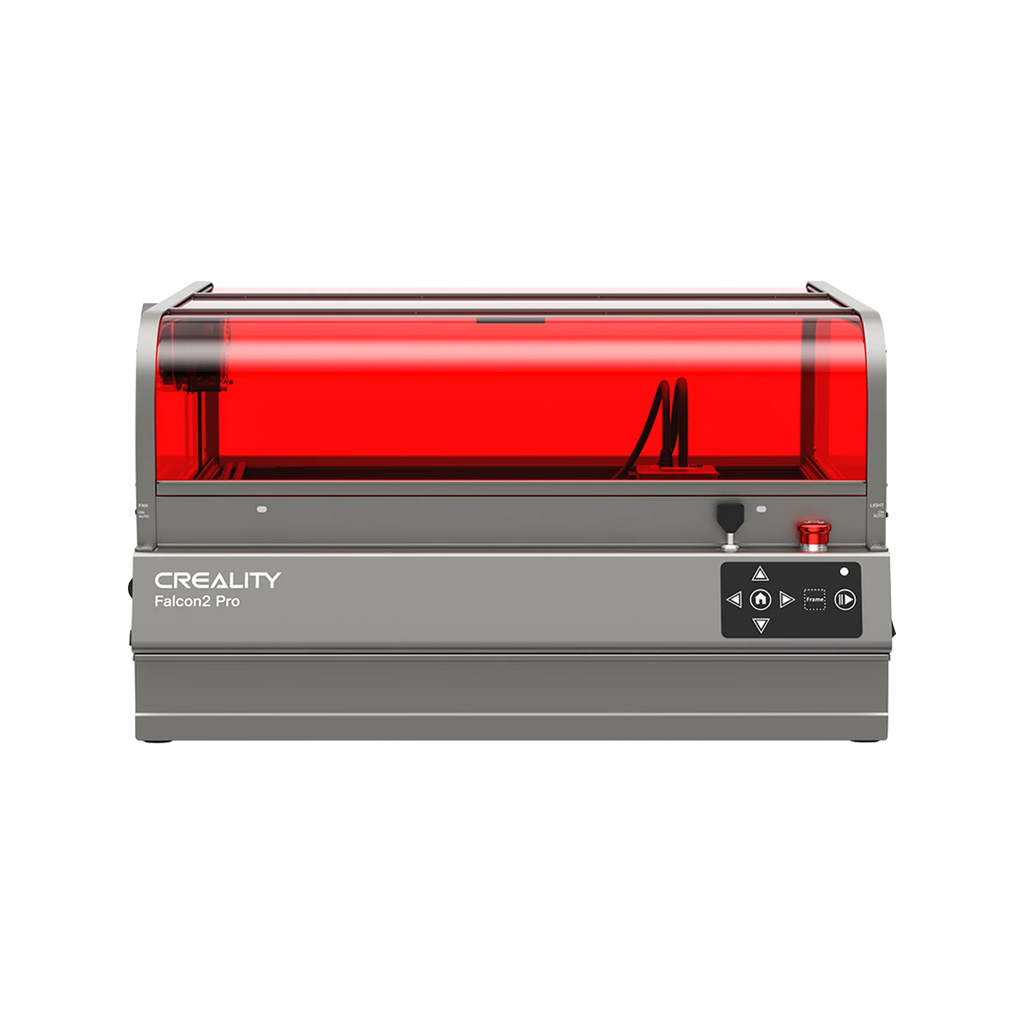

The CREALITY Falcon2 Pro 40W is an enclosed diode laser engraver and cutter for creative work and higher-power material processing. The 40 W main module handles general engraving and cutting, while the included 1.6 W module provides a finer 0.06 × 0.06 mm spot for detailed images and fine line work.
A built-in camera assists with positioning across the 400 × 415 mm working area. The Class 1 enclosure, lid-open protection and integrated air assist support a more controlled workshop setup, but suitable extraction, supervision and material testing remain essential.
For indoor fume control, the compatible CREALITY Falcon Smoke Purifier YW200 is available separately; it supplements rather than replaces suitable ventilation and safe material selection. The Falcon2 Pro Exhaust Pipe Extension adds routing length when the extraction point is farther away.
Why you’ll love it
- Two laser modules: Use the 40 W module for cutting and the included 1.6 W module for finer detail.
- Enclosed Class 1 design: Contains the working area and stops operation when the lid is opened.
- Camera positioning: Helps preview and align work before processing.
- Integrated air assist: Helps clear smoke from the cutting path.
- Large working area: Provides 400 × 415 mm for individual or batch projects.
Technical specifications
- Manufacturer: CREALITY
- Laser type: Diode laser
- Optical output: 40 W main module; 1.6 W detail module
- Maximum machine power: 240 W
- Main-module spot: 0.08 × 0.12 mm
- Detail-module spot: 0.06 × 0.06 mm
- Wavelength: 455 ± 5 nm
- Working area: 400 × 415 mm
- Product dimensions: 664 × 570 × 328.4 mm
- Net weight: 18.56 kg
- Power output: 24 V DC, 10 A
- Laser class: Class 1
