Description

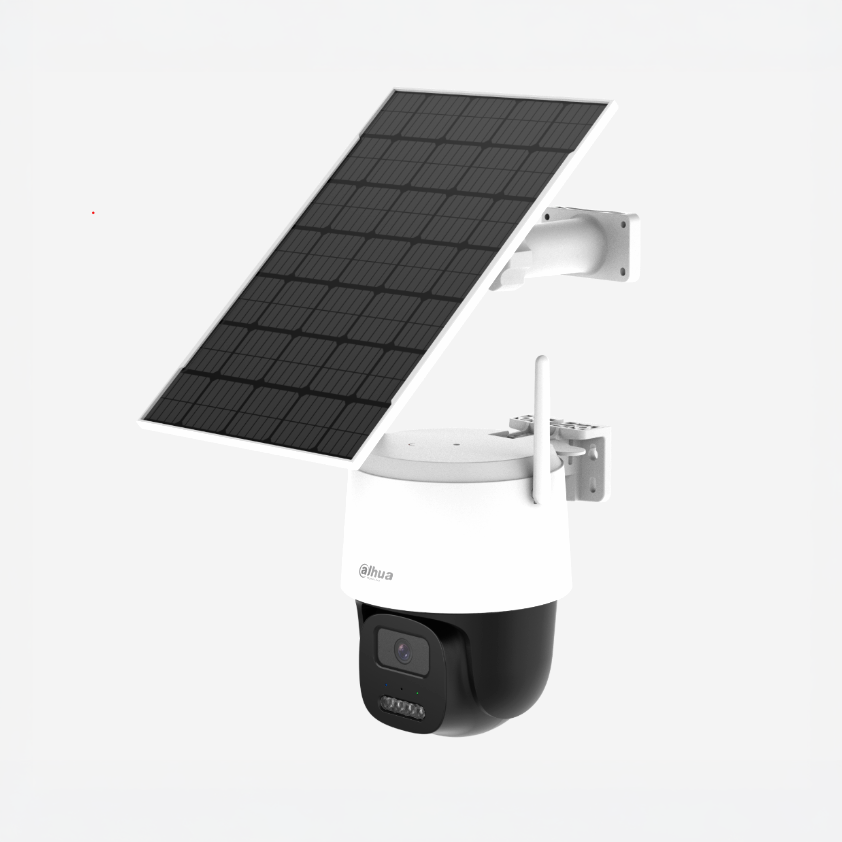

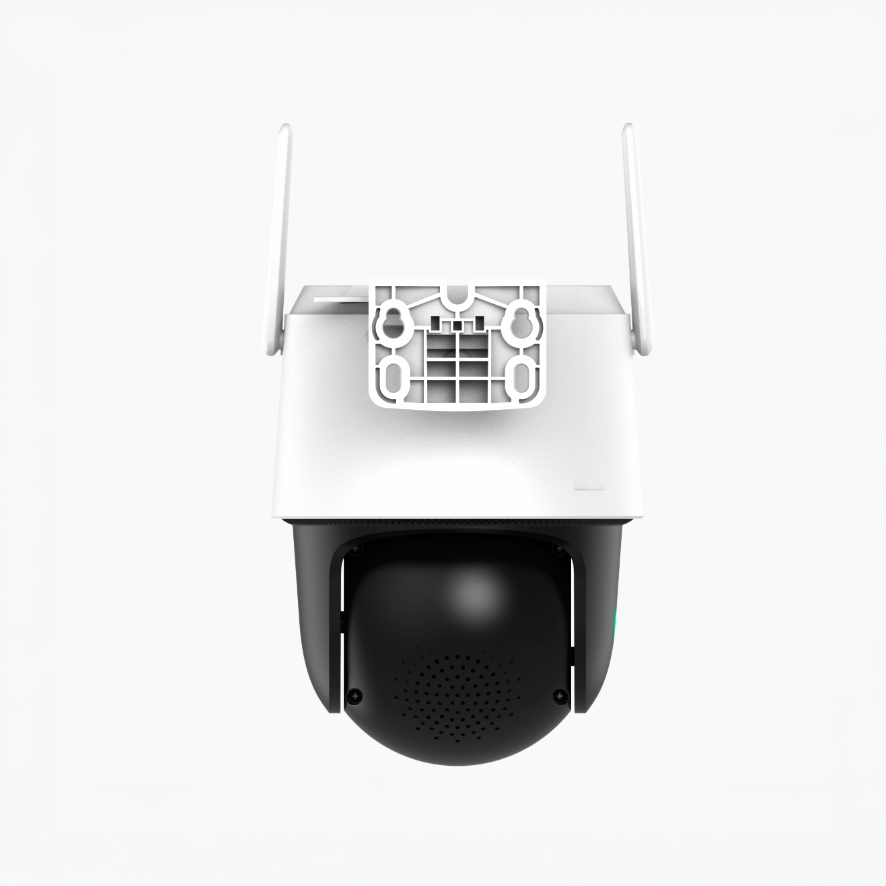

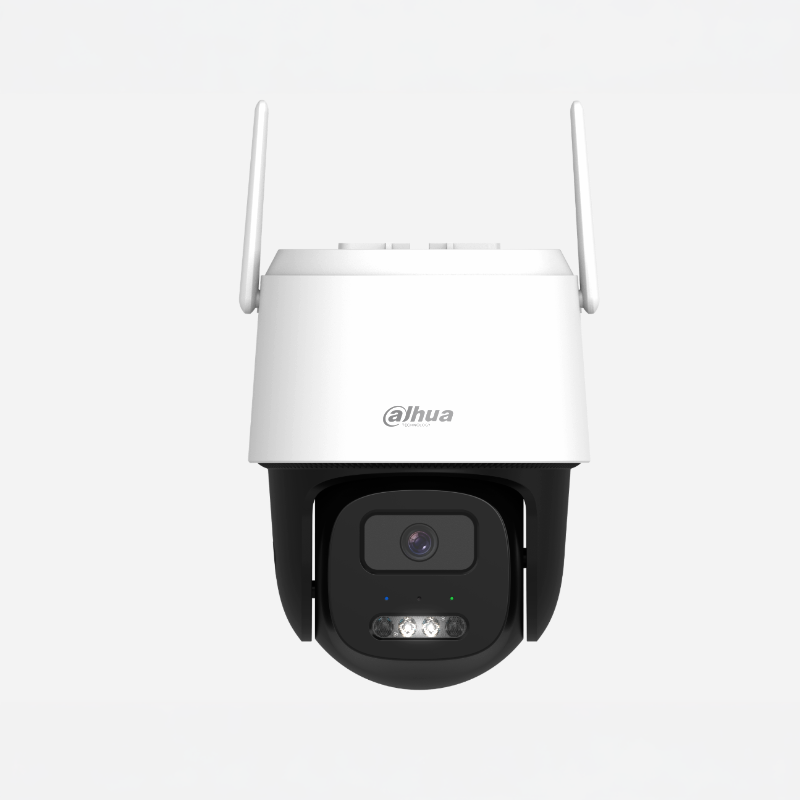

The Dahua DH-BP3E-0360B 3MP Wi-Fi Solar Security System is a wireless surveillance solution designed for locations where power and network cabling is a concern. It comes with a high-definition 3MP camera, a rechargeable battery, and a solar charging panel, enabling it to deliver reliable outdoor monitoring with minimal installation effort.
DH-BP3E-0360B offers an efficient and cost-effective security solution for remote and off-grid locations.
Specifications
- Resolution: 3MP (2304 × 1296) Video
- Image Sensor: 1/3" CMOS
- Lens: 3.6 mm Fixed-Focal Lens
- Maximum Aperture: F1.6
- Viewing Angle: H: 78.4°, V: 42.4°, D: 92.4°
- Pan Range: 0° to 350°
- Tilt Range: 0° to 90°
- Night Vision: Up to 30 m IR Illumination
- Warm Light Range: Up to 20 m
- Built-in Illuminators: 2 × IR LEDs, 2 × Warm Lights
- AI Human Detection: Yes
- AI Vehicle Detection: Yes
- Video Compression: H.265
- Frame Rate: Up to 15 fps
- Wide Dynamic Range (WDR): Yes
- Motion Detection: Yes (4 configurable detection areas)
- Day/Night Mode: Auto (ICR) / Colour / B&W
- Built-in Microphone: Yes
- Built-in Speaker: Yes
- Two-Way Audio: Yes
- Audio Compression: G.711a, G.711Mu, PCM
- Network Port: 1 × RJ45 (10/100 Base-T)
- Wireless Connectivity: Wi-Fi 2.4 GHz & 5 GHz
- Wi-Fi Pairing: Bluetooth Pairing
- Storage: MicroSD Card Slot (Supports up to 512 GB)
- Mobile App: DMSS for Android & iOS
- Power Supply: USB 5V DC, 2A
-
Power Consumption:
- Typical: 1.22 W
- AOV Mode (0.5 fps): 0.1 W
- Ultra Power Saving Mode: 0.02 W
- Protection Rating: IP66 Weatherproof
- Operating Temperature: -20°C to +50°C
- Operating Humidity: ≤95% RH (Non-Condensing)
- Casing Material: Plastic
- Dimensions: 162.4 × 141.2 × 248.8 mm
- Weight: 0.73 kg
- Battery Capacity: 36 Wh
Key Features
- 3MP Wi-Fi Solar Security Camera
- Wire-Free Installation
- Rechargeable Battery with Solar Charging
- AI Human & Vehicle Detection
- Pan & Tilt Monitoring
- Full-Colour Night Monitoring with Warm Light
- Two-Way Audio Communication
- Dual-Band Wi-Fi (2.4 GHz & 5 GHz)
- Bluetooth Fast Pairing
- MicroSD Storage up to 512 GB
- IP66 Weatherproof Design
- Ultra-Low Power Consumption
- Mobile Monitoring via DMSS App
Download the datasheet here: Datasheet Download
Download the start guide here: Start guide
Download the installation guide here: Installation guide
