DFROBOBT DC-DC Buck Converter 6~14V to 5V/8A

DFRobotSKU: DFR0753

Price:
Sale priceN$206.83

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

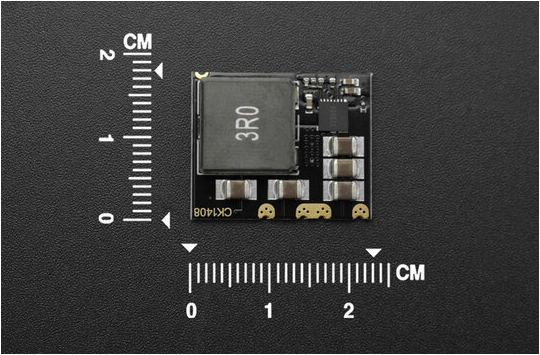

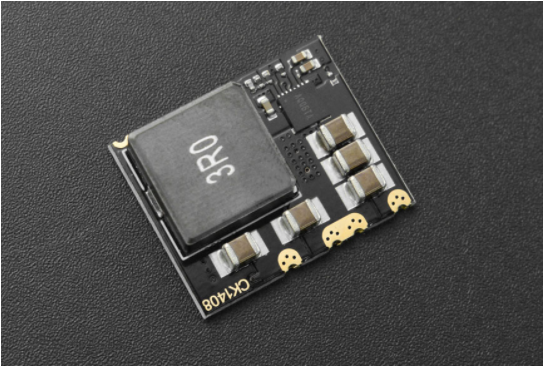

This 40W high power DC-DC Buck converter offers a 6~14V input voltage range and up to 5V/8A output. Featuring a small body, high conversion ratio, strong heat dissipation, and large current output, the module is compatible with all 5V main-boards, and can work as an SMD element to be directly soldered onto PCB. With steady output, this buck converter is able to work for a long time without voltage shift, which can be suitable for projects of high requirements like smart homes, small robot car power sources, etc.
Features
  • Small in size
  • 40W high power output
  • Over 96% conversion ratio
  • Can be used as SMD component

Specifications

  • Input Voltage Range: 6V-14V
  • Output Voltage: 5V
  • Output Current: 0-8A
  • Voltage Accuracy: ±1%
  • Full-load Output Ripple: <30mV
  • Conversion Ratio: >96% (12V input, full-load output)
  • Static Current: <200uA
  • Operating Temperature: 0°C~70°C
