Description

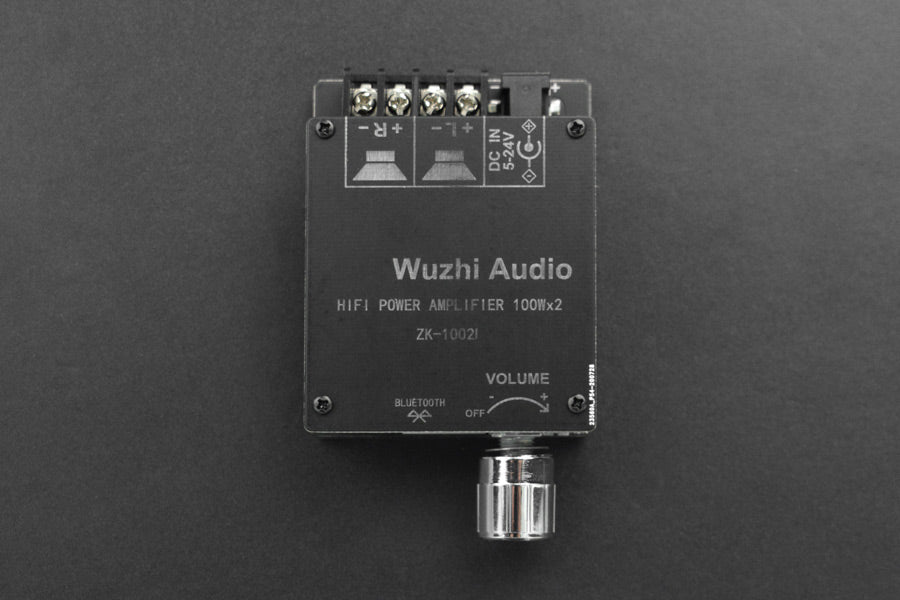

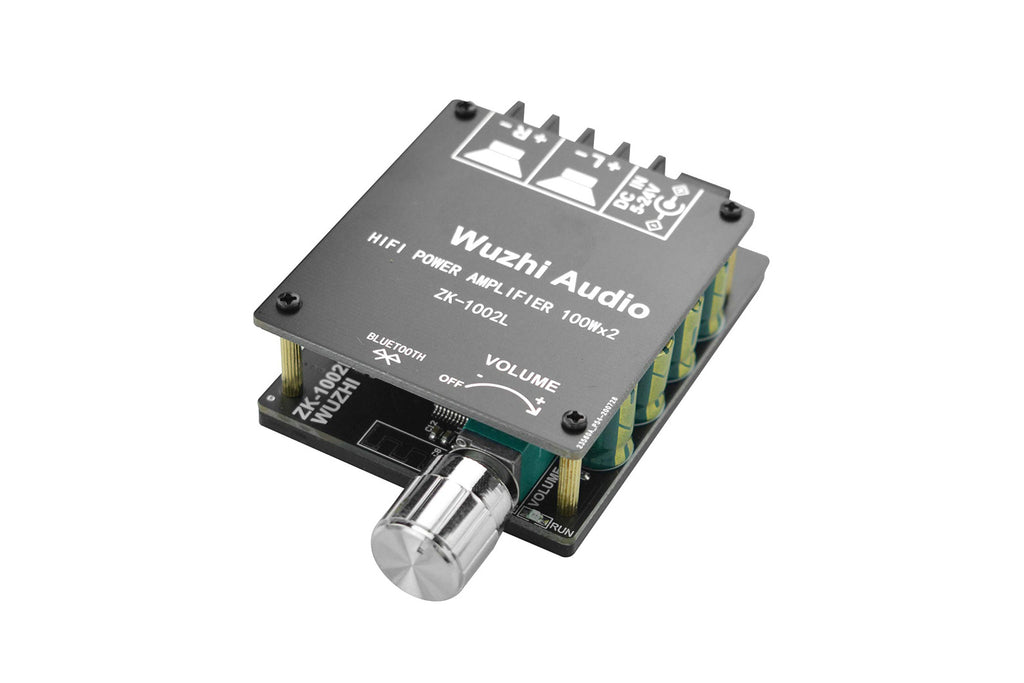

Experience powerful wireless audio with the DFRobot High Power Bluetooth Power Amplifier Board. Designed for high-performance sound projects, this board supports Bluetooth connectivity for easy streaming and delivers clear, amplified audio with minimal distortion. Perfect for DIY speaker systems, home audio setups, or educational projects, it combines ease of use with robust output to bring your audio ideas to life.

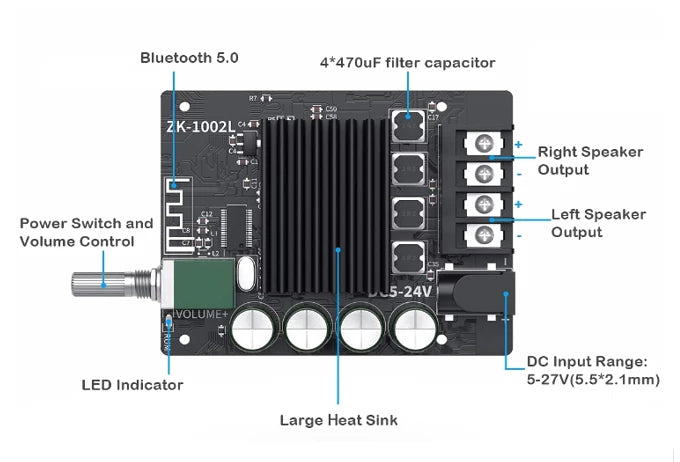

Specification
- Supply Voltage: 5-24V
- Output Power: 100W*2
- Compatible Speakers: 50W-300W, 4Ω-8Ω
- Sound Channel: left/right channel (stereo audio)
- Bluetooth Version: 5.0
- Bluetooth Transmission Distance: 15m (without any obstacle)
- Protection: auto overheat protection, auto short circuit protection
- Power Source Voltage:
|
12V |
8Ω speaker/24W (left channel) +24W (right channel), 4Ω speaker/40W+40W |
|
15V |
8Ω/32W+32W，4Ω/>60W+60W |
|
19V |
8Ω/64W+64W，4Ω/>80W+80W |
|
24V |
8Ω/72W+72W，4Ω/>100W+100W |
NOTE: The board will output adequate power only when the audio input and power source voltage/current are sufficient. The higher the power supply voltage, the larger the output power.
