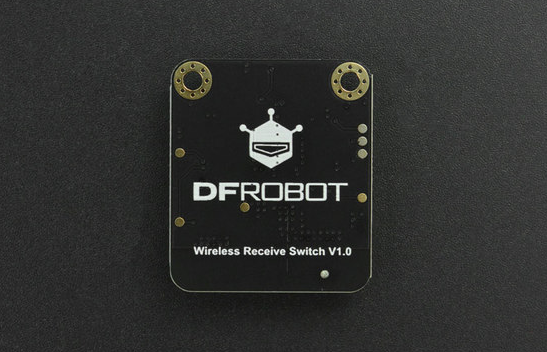

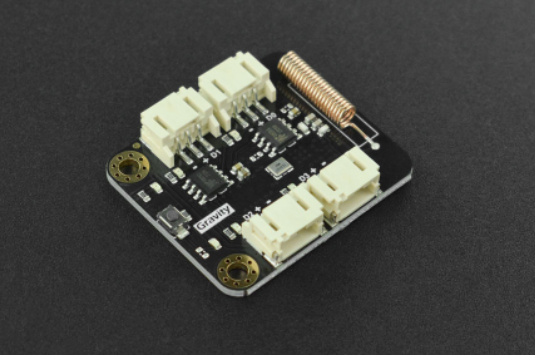

DFROBOT Digital Wireless Receive Switch (433MHz)


Price:
Sale priceN$201.77

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

When building a project that needs to transmit some simple signals wirelessly, have you been bothered by the any of the following problems: Bluetooth's cumbersome AT command configuration and high cost, Wifi's signal limitations and high power consumption, IR emission angle and inability to penetrate through the walls.

This Gravity: Digital Wireless Switch might be just what you need! Based on 433Mhz RF communication technology, the module includes a transmitter and receiver and features the advantages of simple operation ,strong penetration, and ultra-low standby power consumption. It is able to transmit digital signals and compatible with any controller that can read and write digital signals. These modules are used on a wide variety of applications that require wireless control, such as, remote control, wireless doorbell, wireless signal transmission, upgrading wired buttons to wireless buttons, etc.

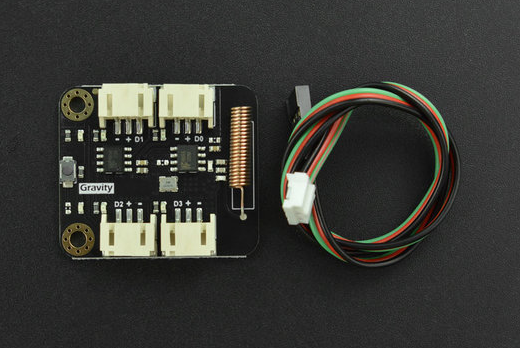

Note: The transmitter module and the receiver module each ship with 1 Gravity: digital sensor cable by default. If you need more, please purchase separately (FIT0011)

433MHz is a certification-free frequency band in most parts of the world, please pay attention to local policies and laws and regulations when using it.

Features

  • 15 button states of the transmitter
  • Pairing function for the receiver
  • Support one-transmit and multiple-receive
  • Support one-receive and multiple-transmit
  • Multiple working modes: inching, latching, self-locking, and interlocking
  •

    Applications

  • Remote control
  • Wireless doorbell
  • Wireless signal transmission
  • Upgrading wired buttons to wireless buttons
  •

    Specification

  • Working voltage: 3.3~5.0V DC
  • Stable transmission distance: 15M indoor
  • Transmitter emission current: 10mA@5V
  • Transmitter standby current: <10uA@5V
  • Receiver emission current: 6mA@5V
  • Receiver standby current: 3mA@5V
  • Input signal: digital
  • Number of interfaces: 4
  • Working frequency: 433Mhz

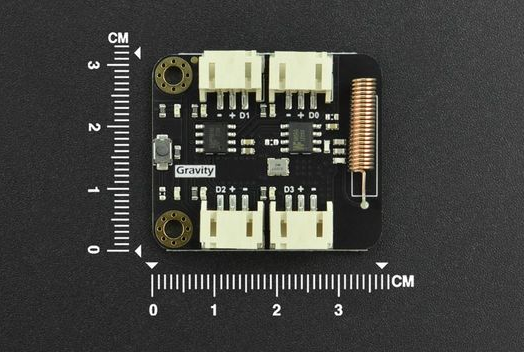

  • Transmitter size: 47x32mm
  • Receiver size :37x32mm
  • Mounting hole size: inner diameter 3.1mm/outer diameter 6mm
