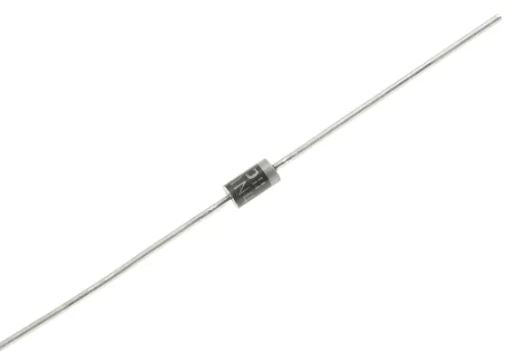

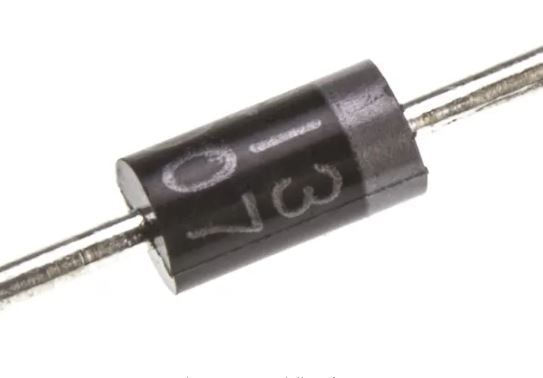

Diodes Inc 1000V 1A, Diode, 2-Pin DO-41 1N4007-T

LafvinSKU: 738-4724/E164

Sale priceN$1.55



  • Diffused Junction
  • High Current Capability and Low Forward Voltage Drop
  • Surge Overload Rating to 30A Peak
  • Low Reverse Leakage Current
  • Lead Free Finish, RoHS Compliant

The datasheet can be found here


  • Mounting Type: Through Hole
  • Package Type: DO-41
  • Maximum Continuous Forward Current: 1A
  • Peak Reverse Repetitive Voltage: 1000V
  • Diode Configuration: Single
  • Rectifier Type: Switching
  • Diode Type: Silicon Junction
  • Pin Count: 2
  • Maximum Forward Voltage Drop: 1V
  • Number of Elements per Chip: 1
  • Diode Technology: Silicon Junction
  • Diameter: 2.7mm
  • Peak Non-Repetitive Forward Surge Current: 30A
