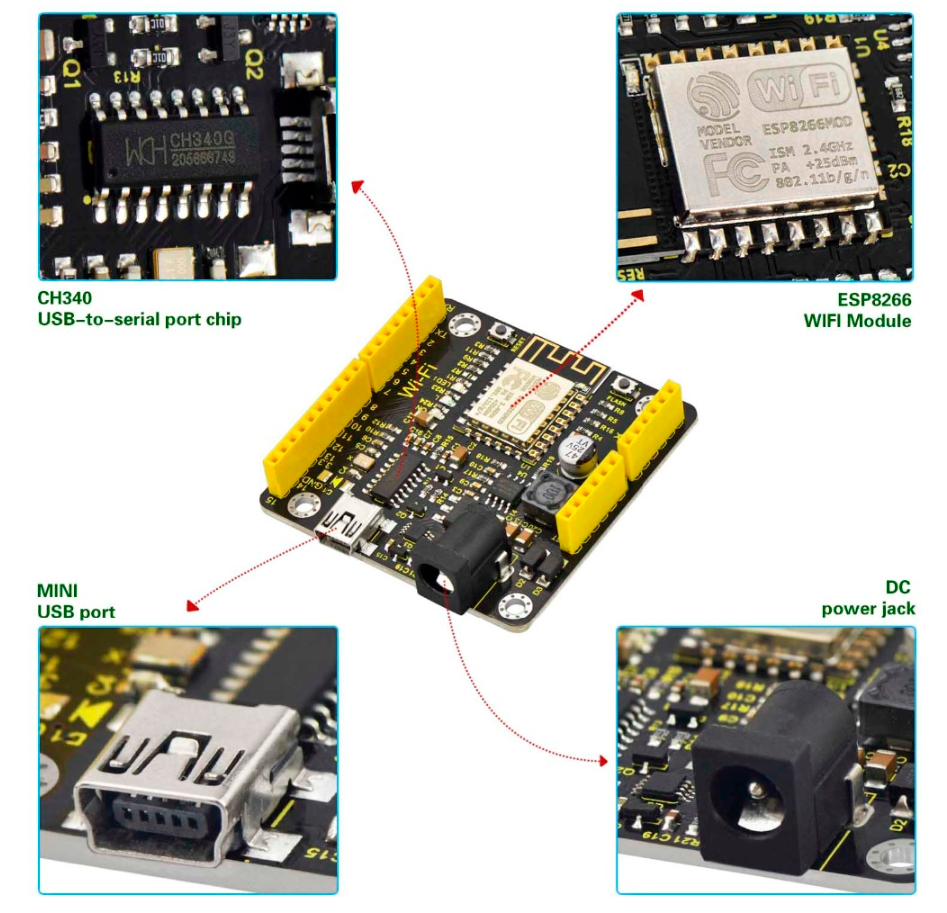

The ESP8266 Wi-Fi Development board is based on the ESP8266-12 module developed by Ai-Thinker.

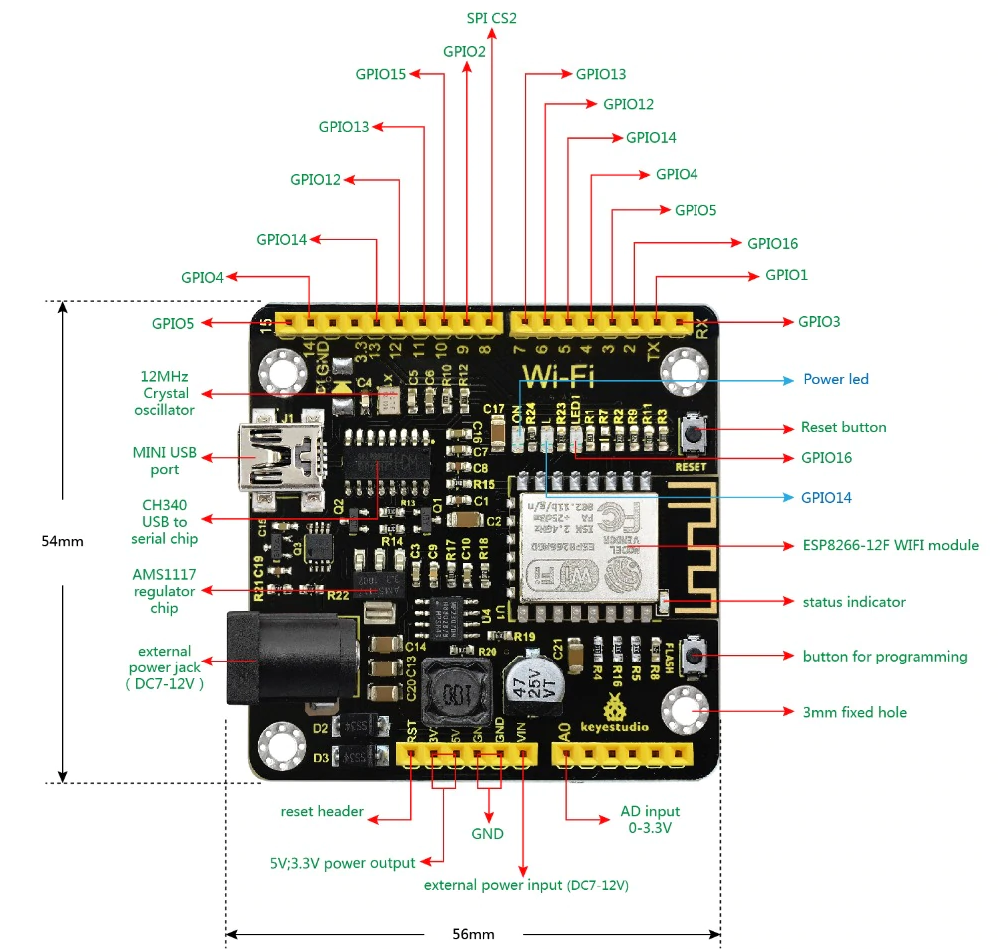

The board has 8 digital I/O of which 4 can be used as PWM. It also has 1 analog input (0-3.3V), built in LED and the following communication:
- Serial Communication
- SPI Communication
- IIC Communication
- IR Remote Control Interface
Please read the Wiki for more inforamtion.
- Input Voltage: 7-12Vdc
- IO output current maximum: 12mA
- Digital I/O: 8
- Analaog I/O: 1
- Operating Voltage: 3.3Vdc
- LED_BUILTIN: GPIO14
- Weight: 34g

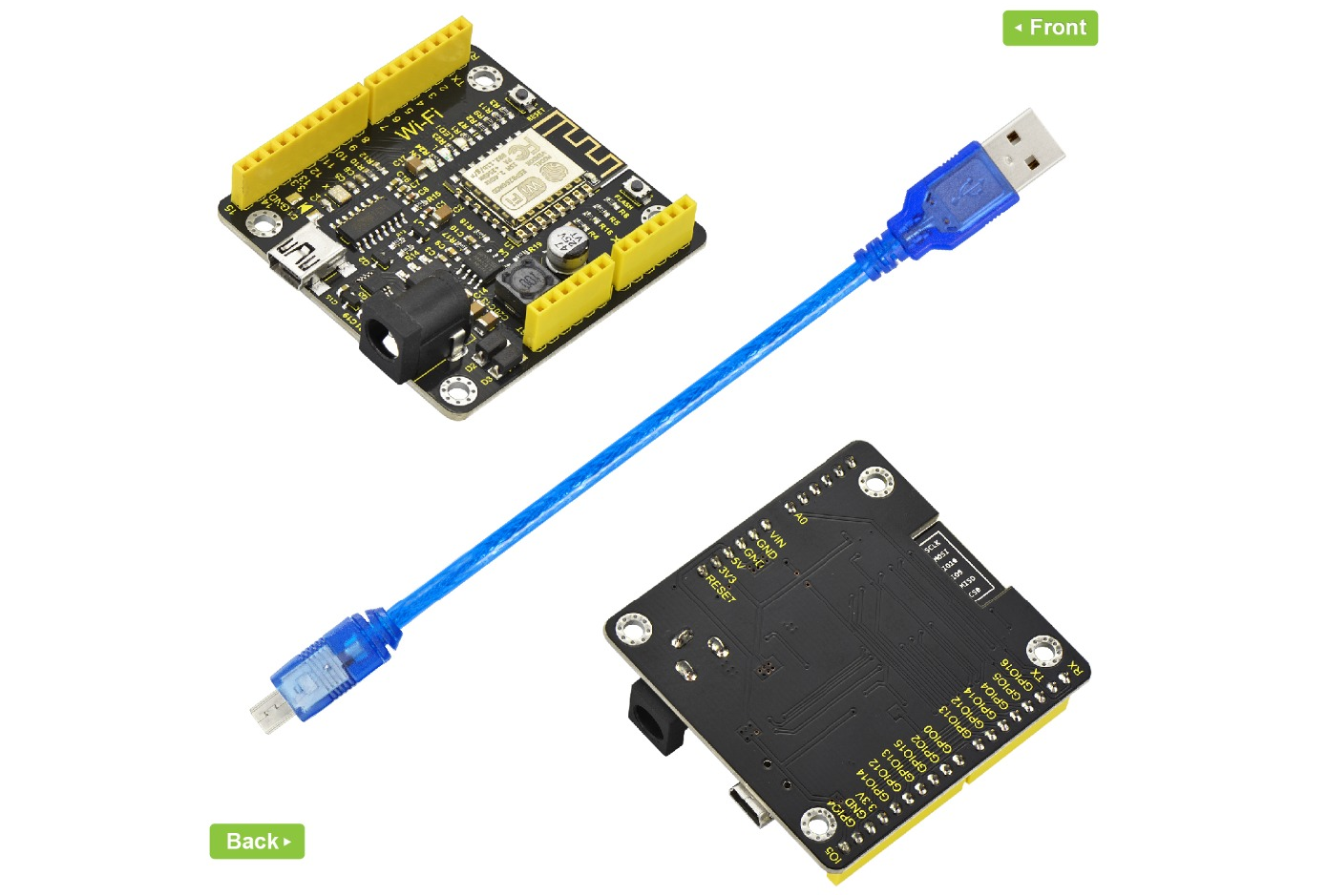

- 1 ESP8266 WiFi development board

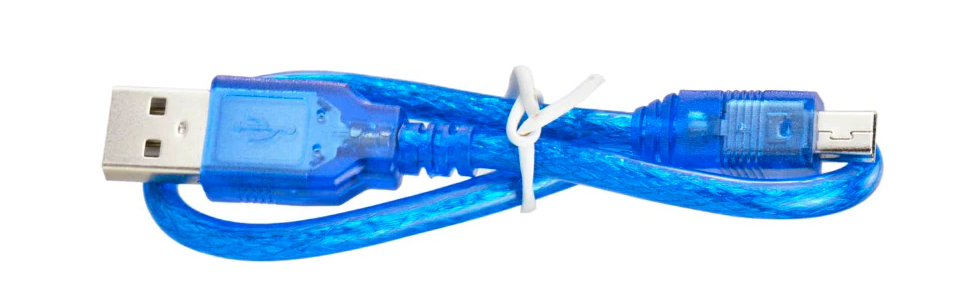

- 1 30cm mini USB cable
