Description

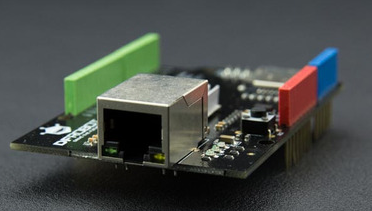

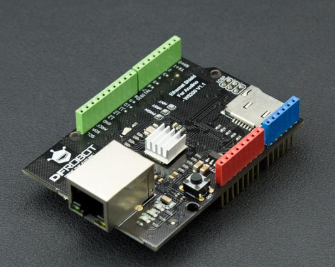

This Arduino-sized Ethernet Shield is based on the Wiznet W5200 Ethernet Chip, and provides an easy way of getting your Arduino Online. Fits all version of Main arduino board,e.g. arduino UNO, arduino mega 2560. To start, just plug this module onto your Arduino board, connect it to your network with an CAT 5 Ethernet Cable (not included) and follow a few simple instructions, you will be able to explore the world with internet. The pin layout also allows another shield to be stacked on top. An aluminum alloy radiator is placed onto W5200 chip to release excessive heat.
Specification
- Working voltage: 5v
- Ethernet socket
- Support Micro SD card reading / writing
- Ethernet and SD card sharing the SPI interface, only one function per i
- Standard size Arduino compatible controller, while supporting Arduino Mega Series

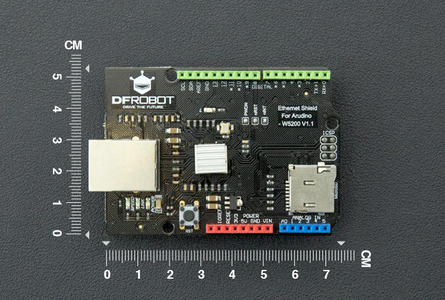

- Size: 70x55x30mm(2.75x2.16x1.18')
