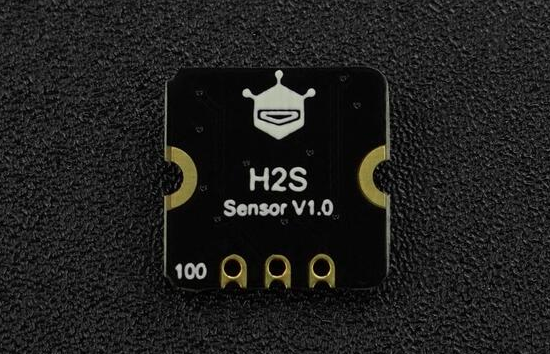

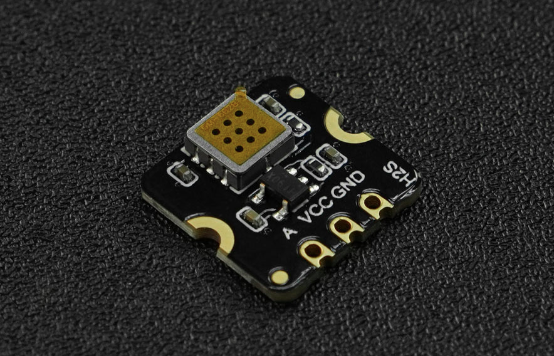

DFROBOT Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor (Breakout, 0.5-50ppm)

DFRobotSKU: SEN0568

Price:
Sale priceN$171.16

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure the concentration of hydrogen sulfide gas, and is suitable for hydrogen sulfide detection in toilets, sewers, garbage stations and other places.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of qualitative measurements only. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.

Wiring Diagram of Fermion: MEMS H2S Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS H2S Sensor and Arduino UNO


Precautions for use

Kindly remove the protective film before usage.To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).Prevent contamination from alkalis, alkali metal salts, and halogens.Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).Avoid contact with water, condensation, and freezing.Minimize excessive vibration, impact, and dropping.Please refrain from employing this module in systems that involve personal safety concerns.For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

Features

Compact size, measuring only 13*13*2.5mmLow power consumption, operating current <20mAHigh sensitivity and rapid response recoveryAdvanced MEMS technology



Applications

Hydrogen sulfide detection in toilets, sewers, garbage stations


Specifications

Gas detected: Hydrogen Sulfide (H2S), BenzeneDetection range: 0.5-50ppmOperating voltage: 3.3-5VOperating current: <20mAOutput signal: Analog voltageSensitivity: R0(in air)/Rs(in 50ppm H2S) ≥ 3Operating temperature: -10-50℃Operating humidity: 15-90%RH (non-condensing)Lifespan: ≥5 years (in air)Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1”


Projects

Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform

In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which is capable of identifying the scents of beverages and fruits.
