DFROBOT Fermion: MEMS Smoke Gas Detection Sensor (Breakout, 10-1000ppm)

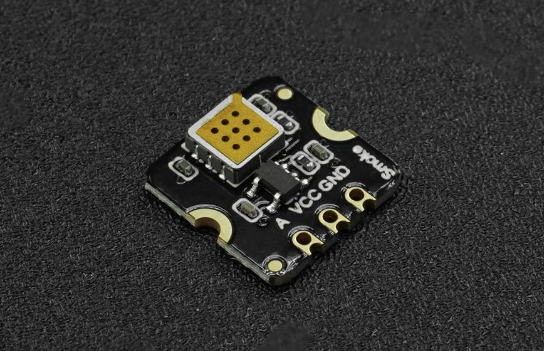

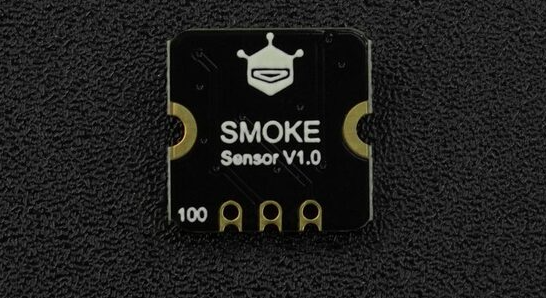

Fermion: MEMS Smoke Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can measure smoke concentration qualitatively and is suitable for smoke alarm and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.

Figure: Wiring Diagram of Fermion: MEMS Smoke sensor and Arduino UNO

Kindly remove the protective film before usage.
To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).Prevent contamination from alkalis, alkali metal salts, and halogens. Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).Avoid contact with water, condensation, and freezing. Minimize excessive vibration, impact, and dropping. Please refrain from employing this module in systems that involve personal safety concerns. For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

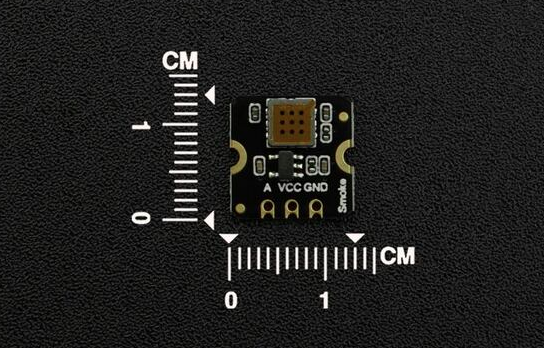

Compact size, measuring only 13*13*2.5mmLow power consumption, operating current ＜20mAHigh sensitivity and rapid response recovery Advanced MEMS technology

Smoke Alarm

Gas detected: EtOH, Smoke Detection range: 10-1000ppmOperating voltage: 3.3-5VOperating current: ＜20mAOutput signal: Analog voltage Sensitivity: R0(in air)/Rs (in 200ppm EtOH) ≥ 3Operating temperature: -10-50℃Operating humidity: 15-90%RH (non-condensing) Lifespan: ≥5 years (in air) Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1”

Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform

In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which is capable of identifying the scents of beverages and fruits.
