Description

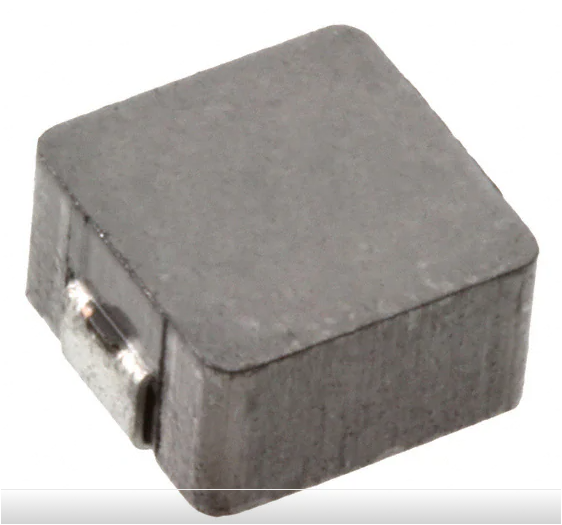

Fixed Inductor 2.2UH 5.5A Surface Mount
Specifications
|
Category |
Fixed Inductors |
|
Mfr |
Abracon LLC |
|
Series |
ASPI-0530HI |
|
Part Status |
Active |
|
Type |
Molded |
|
Material - Core |
Carbonyl Powder |
|
Tolerance |
±20% |
|
Current - Saturation (Isat) |
9A |
|
Shielding |
Shielded |
|
DC Resistance (DCR) |
35mOhm Max |
|
Q @ Freq |
- |
|
Frequency - Self Resonant |
- |
|
Ratings |
- |
|
Operating Temperature |
-55°C ~ 125°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Nonstandard |
|
Supplier Device Package |
- |
|
Size / Dimension |
0.220"" L x 0.205"" W (5.60mm x 5.20mm) |
|
Height - Seated (Max) |
0.118"" (3.00mm) |
|
Inductance |
2.2µH |
|
Current Rating (Amps) |
5.5A |
|
Inductance Frequency - Test |
100kHz |
