Description

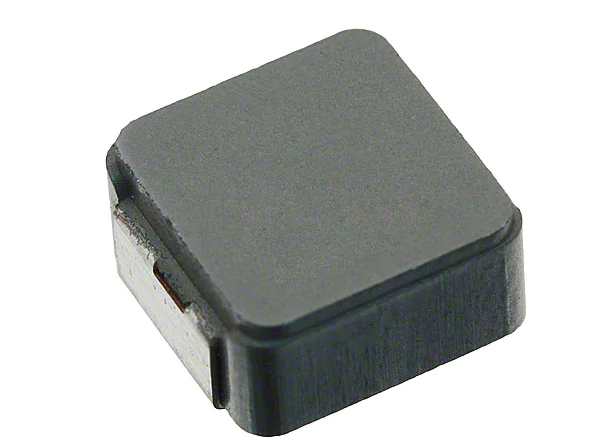

Fixed Inductor 3.3UH 9.2A Surface Mount
Specifications
|
Category |
Fixed Inductors |
|
Mfr |
Vishay Dale |
|
Series |
IHLP-3232DZ-01 |
|
Part Status |
Active |
|
Type |
Molded |
|
Material - Core |
- |
|
Tolerance |
±20% |
|
Current - Saturation (Isat) |
20A |
|
Shielding |
Shielded |
|
DC Resistance (DCR) |
17.7mOhm Max |
|
Q @ Freq |
- |
|
Frequency - Self Resonant |
25MHz |
|
Ratings |
- |
|
Operating Temperature |
-55°C ~ 125°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Nonstandard |
|
Supplier Device Package |
- |
|
Size / Dimension |
0.340"" L x 0.322"" W (8.64mm x 8.18mm) |
|
Height - Seated (Max) |
0.157"" (4.00mm) |
|
Inductance |
3.3µH |
|
Current Rating (Amps) |
9.2A |
|
Inductance Frequency - Test |
100kHz |
