BIQU3D CNC SHAT FLEXIBLE ALUMINIUM COUPLING (5mm/5mm)

BIQU3DSKU: BG020/3010050176

Price:
Sale priceN$27.92

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

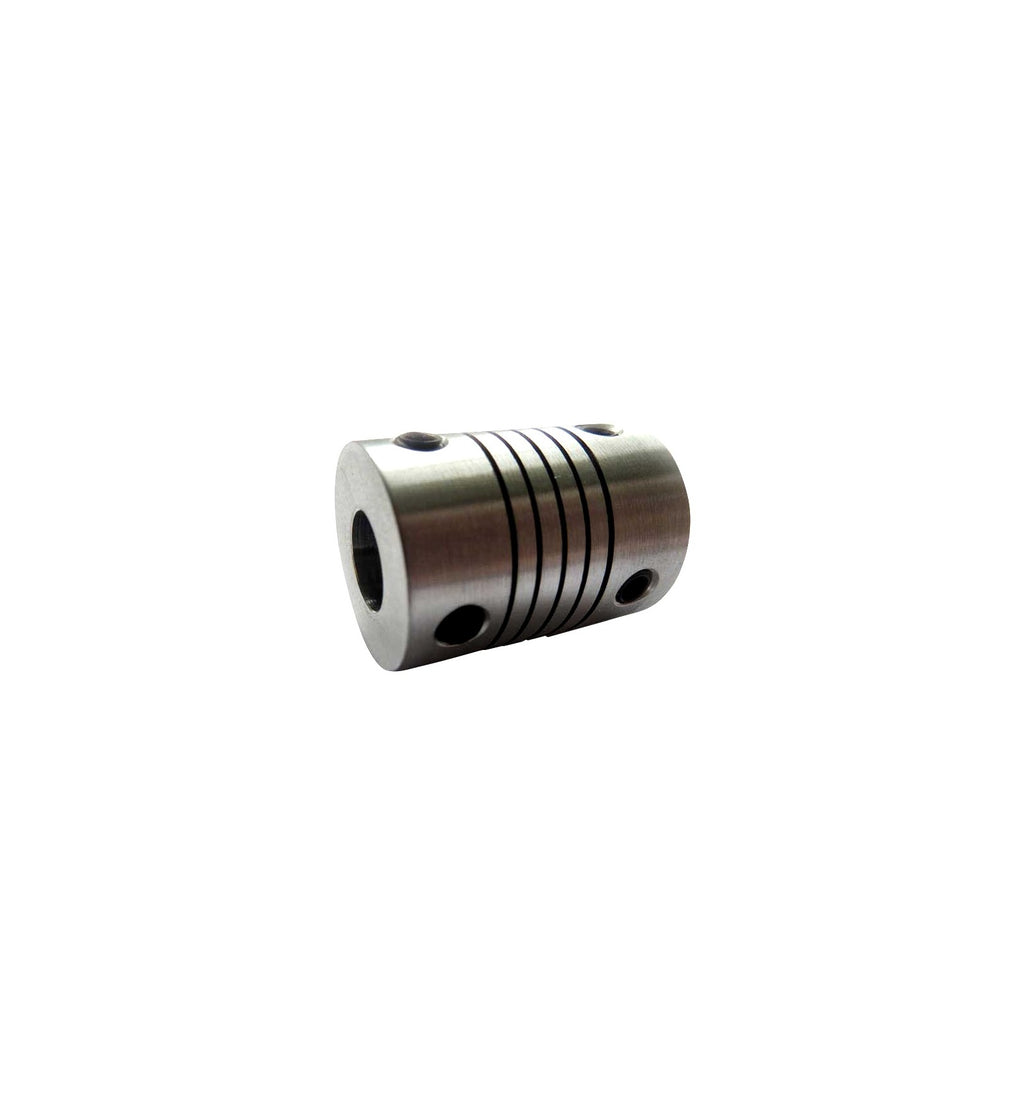

Looking for a way of connecting your motor to a shaft of sorts? This 5mm to 5mm set-screw coupler is just what you need.

These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects and well as any wobbling that may occur. There profile is such that they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means you can enjoy flexibility without increased backlash making them suitable for precision CNC work.

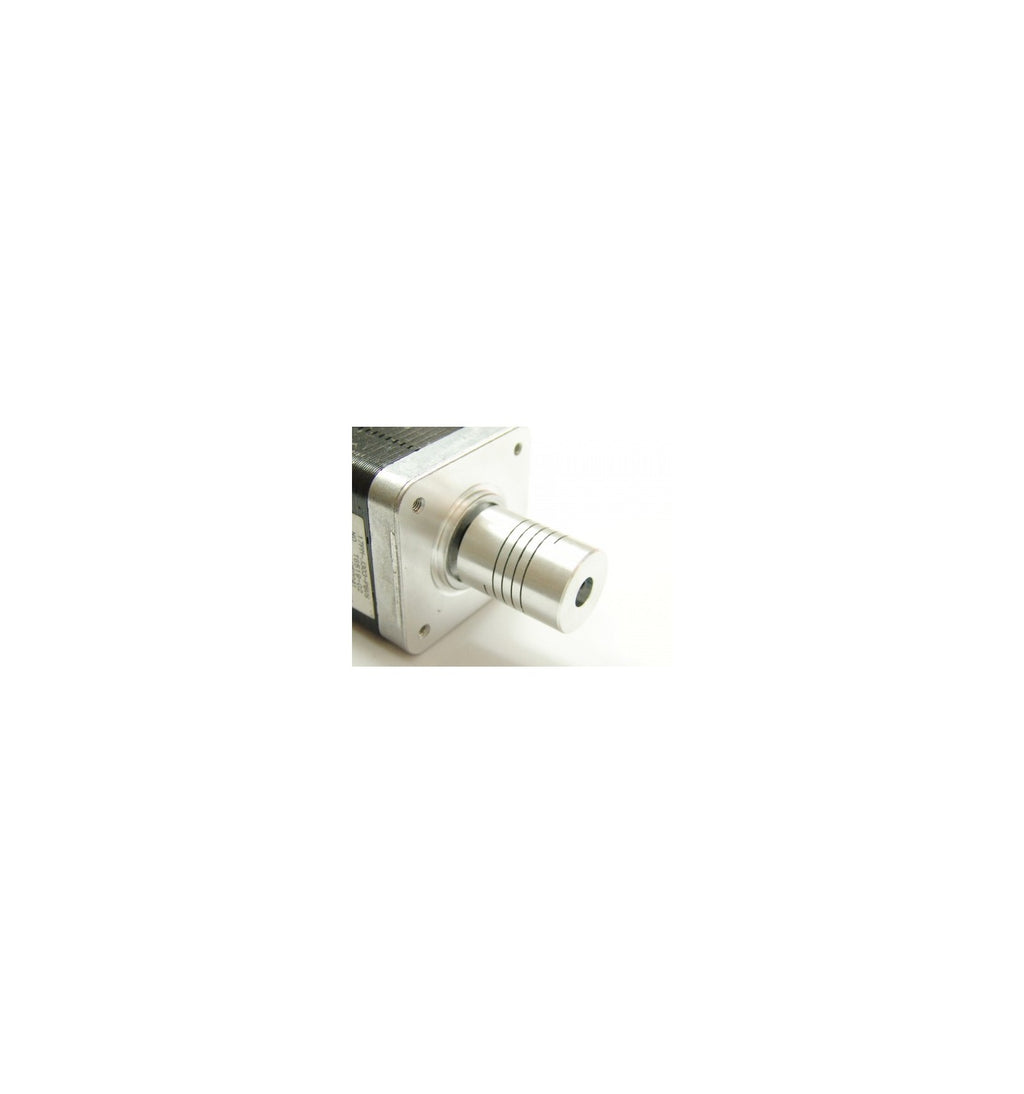

This coupler will connect a 5mm diameter shaft to an 5mm diameter shaft. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need an allen key to tighten/loosen the set-screws.

Specifications

5MM/5MM FLEXIBLE ALUMINIUM COUPLER

  • Material

– Aluminium

  • Length

– 25mm

  • Outer Diameter

– 19mm

  • Inner Diameter (Wide Side)

– 5mm

  • Inner Diameter (Small Side)

– 5mm
