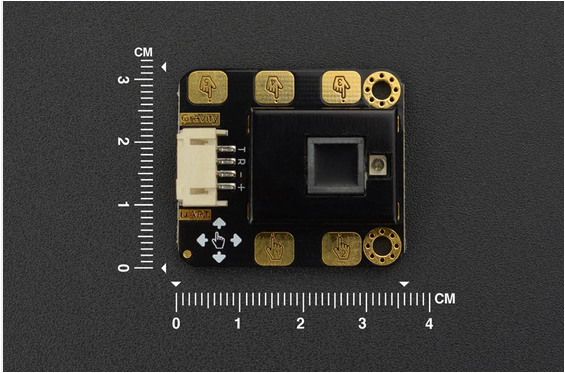

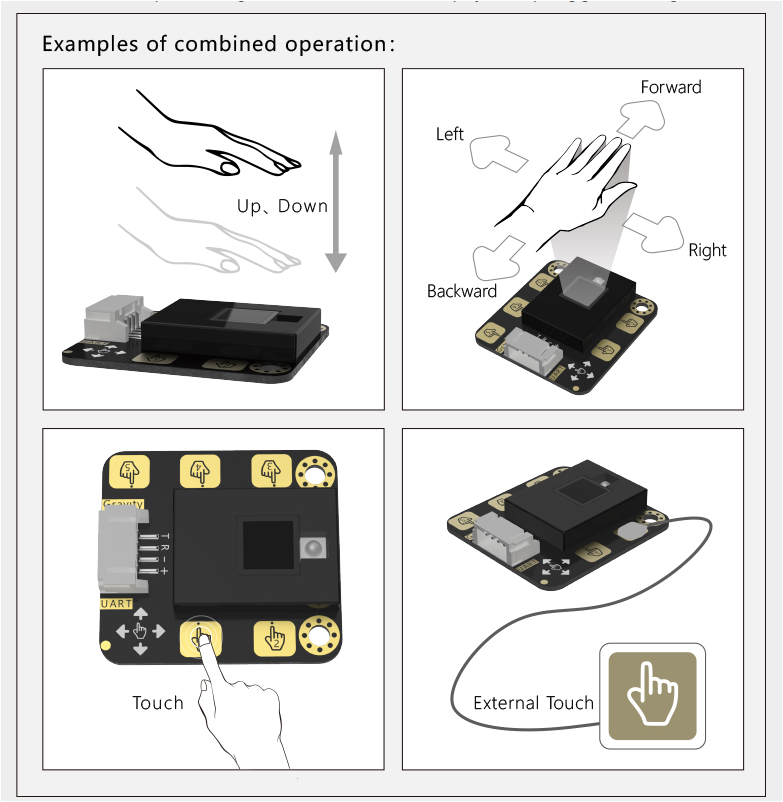

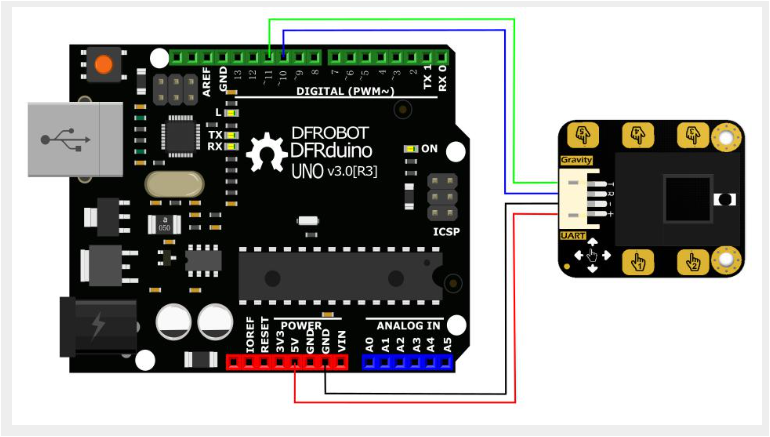

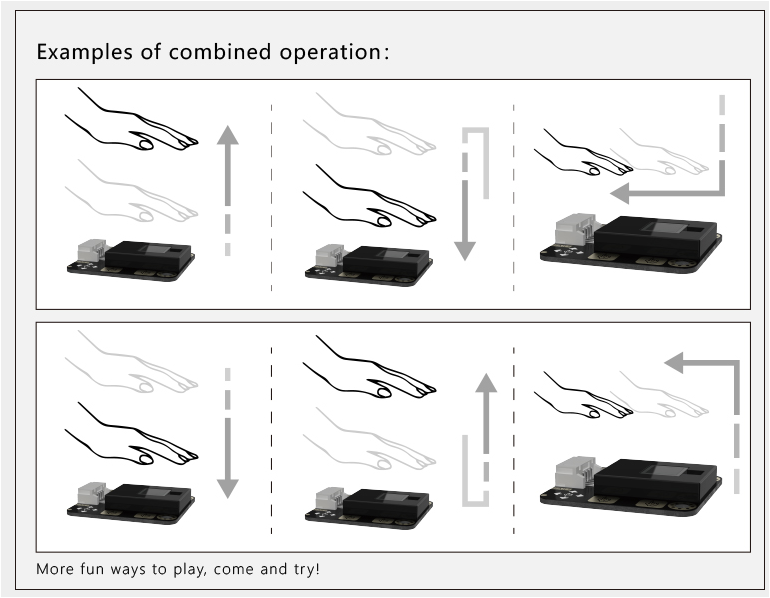

This sensor module integrates gesture recognition and touch detects functions in one piece, and provides an adjustable detection range within 0~30cm. When connected to your micro-controller, it can detect 5-way touch signal and 7 kinds of gestures: move left, move right, move forward, move backward, pull up, pull down, pull and remove. Besides, the sensor is also equipped with the function of auto-sleep and wake up. The module comes with the gesture recognition algorithm and provides simple and reliable data output. Use the sensor to directly communicate with upper computer or micro-controllers like Arduino and Raspberry Pi via serial port.
- Operating Voltage: 3.3V~5V
- Operating Current: 56.3mA
- Current in Sleep Mode: 40uA
- Communication: UART

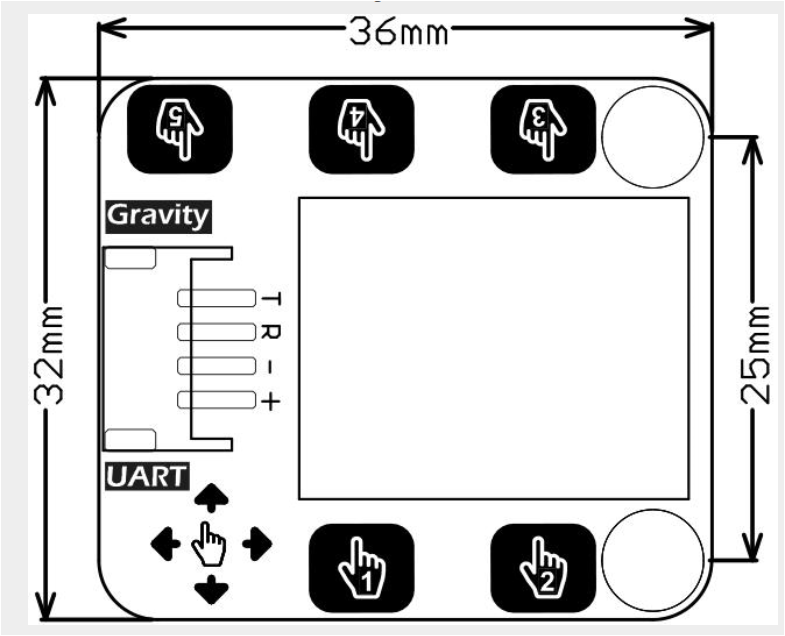

- Dimension: 36*32mm/1.42*1.26”
