Description

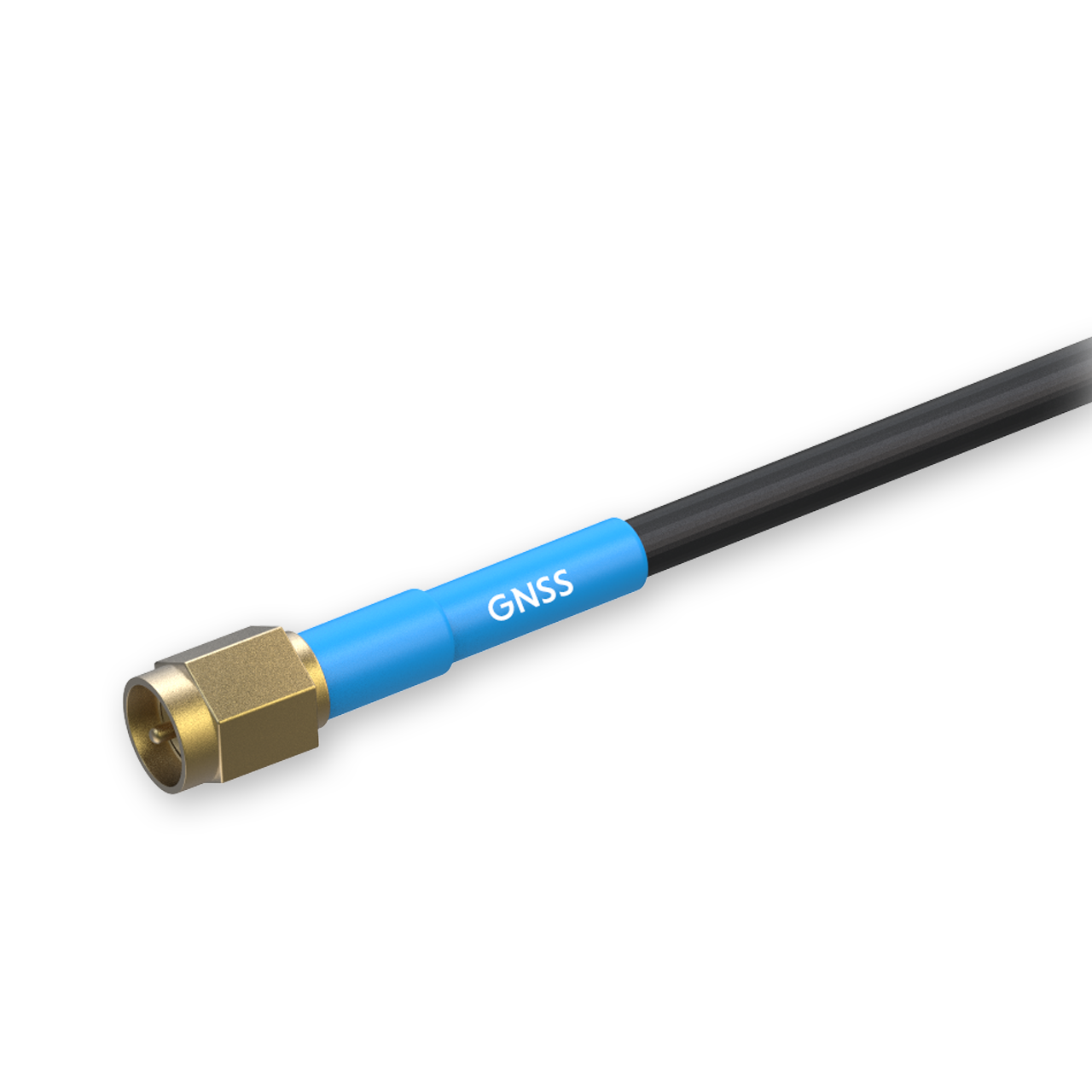

Enhance your satellite signal reception with the GNSS Adhesive SMA Antenna, designed for reliable GPS, GLONASS, Galileo, and BeiDou positioning. Featuring a strong adhesive base for easy mounting on flat surfaces, this compact antenna offers stable performance with minimal interference. The integrated SMA connector ensures quick and secure attachment to your GNSS modules, making it ideal for IoT projects, vehicle tracking systems, and navigation devices.
Features
| Parameter | |
| Frequency range | 1575 ~ 1602 MHz |
| Polarization | RHCP |
| Gain | 2.0 dBi |
| VSWR | 2.0 |
| Impedance | 50 Ω |
| Axial ratio | 3 dB |
| LNA gain | 26 ± 2 dB |
| LNA noise figure | 1.5 dB |
| Supply voltage | 2.2 – 5.0 VDC |
| Current consumption | 5 – 15 mA |
| LNA VSWR | 2.0 |
| Cable | RG174, 3000 mm |
| Connector type | SMA Male |
| Mounting method | Adhesive |
| Operating temperature | –40 ~ +85 |
| Operating relative humidity | 95 % |
| RoHS compliant | ✓ |
