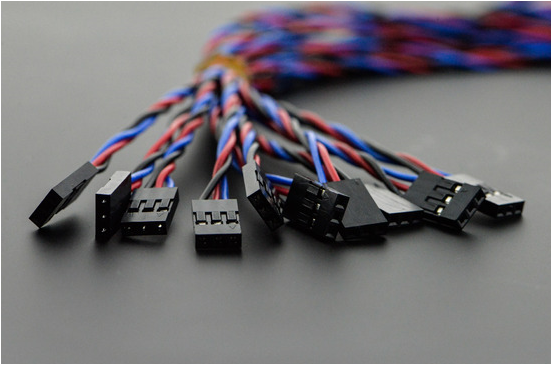

The analog sensor cables are especially designed for our popular IO Expansion shield and sensors. It connects most of our analog sensor to the IO board.
Latest Update: Change the analog sensor extension pin mapping to be compatible with the latest IO expansion shield and Romeo analog sensor expansion pinout.
Latest Pin mapping for Analog sensor extension
Red: PWR; Blue: Signal
- Maximum voltage:<50V
- Maximum current:<1000mA
- One Servo Type connector with Signal, GND PWR.
- One 3 Pin JST connector
