Description
JST Connector Kit 2.00mm

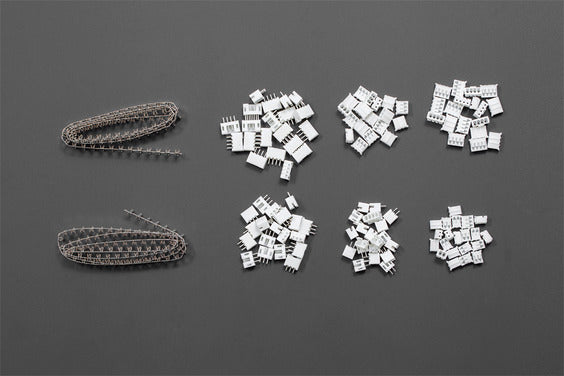

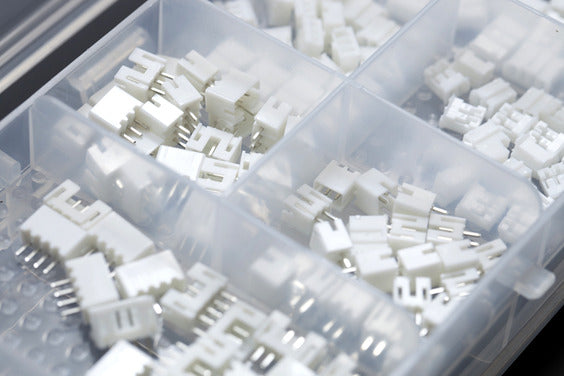

The JST kit includes:
- PHR-2 housing*20
- PHR-3 housing*20
- PHR-4 housing*20
- B2B-PH-K-S through-hole type shrouded header *20
- B3B-PH-K-S through-hole type shrouded header *20
- B4B-PH-K-S through-hole type shrouded header *20
- crimp contact*100

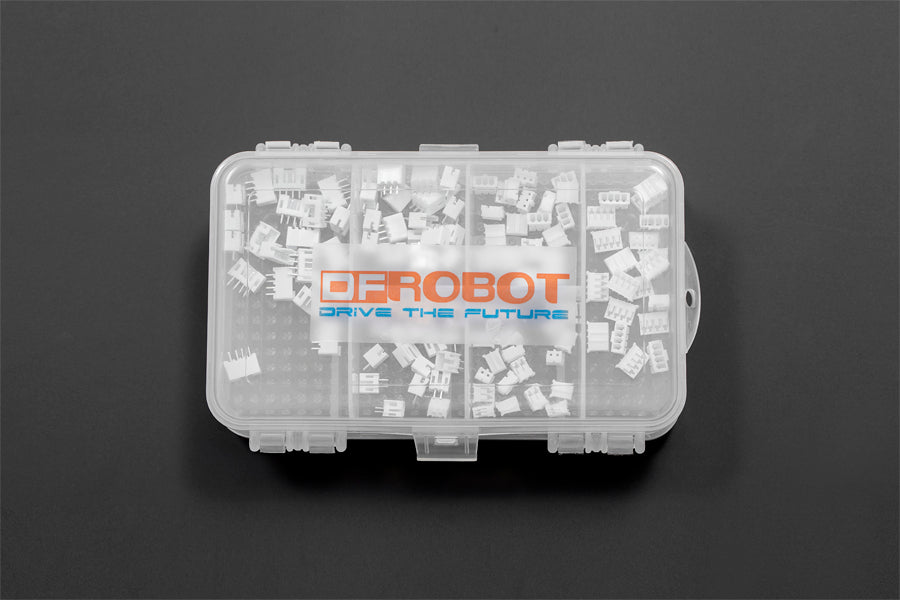

- Two-sided Compartment Parts Box *1
Specifications
- Pitch:2.0mm ((0.079"))
- Current rating:2A AC,DC (AWG #24)
- Voltage rating:100V AC,DC
- Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
- Contact resistance: Initial value/10m Ω max.
- After environmental testing/20m Ω max.
- Insulation resistance：1000M Ω min.
- Withstanding voltage：800V AC/minute
- Applicable wire：AWG#32~#24
- Applicable PC board thickness：0.8mm~1.6mm (0.03~0.06")
