Description

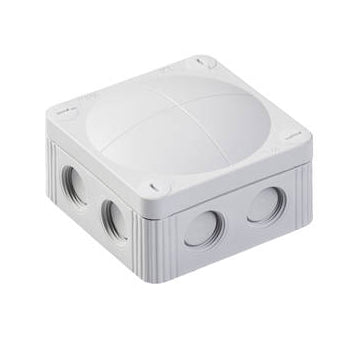

Wiska COMBI junction boxes provide ultimate protection from environmental conditions in a compact, very attractive format, suitable for extreme outdoor installations.
Features:
- Integrated thread for cable gland entry without locknuts (308/407/607/1210)
- Captive rust free quick release lid screws (1/4 turn) of plastic (308/407/607/1210)
- Weather proof, ultraviolet resistant, shatterproof, impact resistant, flame retardant and halogen free,
- Patented combination of thread and soft self-sealing membrane for faster cable entry (sides and rear)

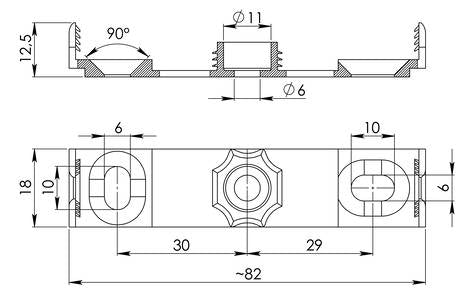

- Mounting holes located outside the sealing area within the lid. (ext. mounting clip provided for 308/407)
Specification
|
SERIES |
COMBI 308 |
|
CABLE ENTRY - SIDES |
8 |
|
THREAD |

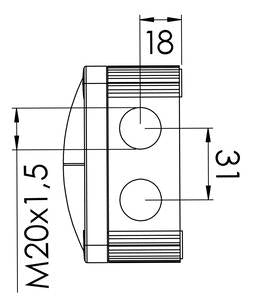

M20 |
|
DESCRIPTION |
Weatherproof junction box |
|
COLOUR |
Grey (RAL 7035) |
|
INDEX PROTCTION IP |
IP66/67 (captive - quick release lid screws) |
|
FLAME PROTECTION |
Glow wire test 750° according to EN60695-2-11 |
|
MATERIAL |
Polypropylene, reinforced glass fibre, sealing: thermoplastic elastomere |
|

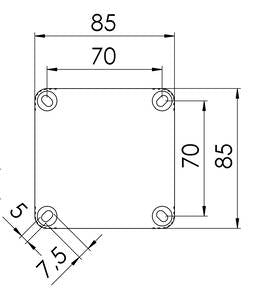

DIMENSIONS (MM) |
(H) 85 x (W) 85 x (D) 51 |
