KEYESTUDIO Micro Servo SG90 0-180 degrees for Arduino Smart Car Robot / Aircraft / CE Certification

KEYESTUDIOSKU: KS0194

Price:
Sale priceN$44.10

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

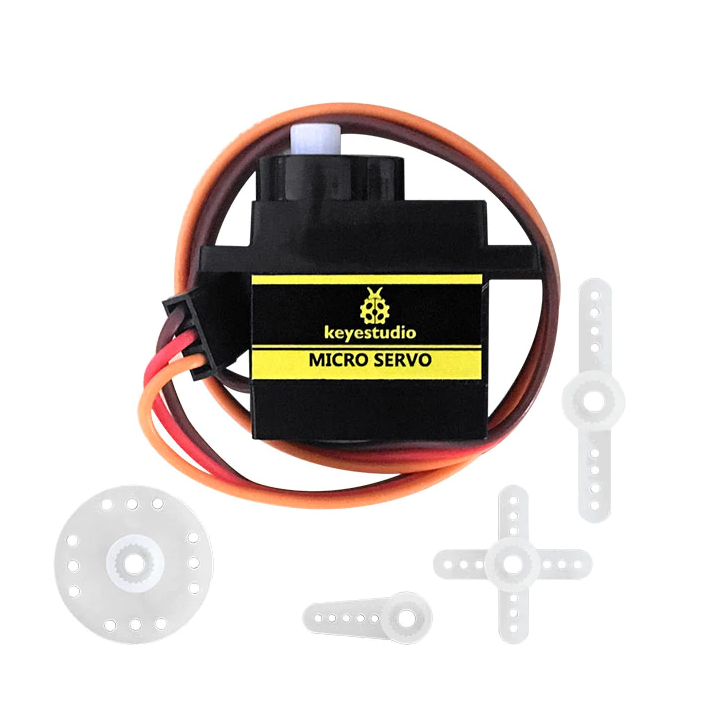

Servomotor is a position control rotary actuator.  (You can achieve 180 degrees by adjusting the rotation angle of the motor in the code)It mainly consists of housing, circuit board, core-less motor, gear and position sensor.  Included with your servo motor you will find a variety of white motor mounts that connect to the shaft of your servo. You may choose to attach any mount you wish for the circuit. It will serve as a visual aid, making it easier to see the servo spin.

Working principle:

The receiver or MCU outputs a signal to the servomotor. The motor has a built-in reference circuit that gives out reference signal, cycle of 20ms and width of 1.5ms. The motor compares the acquired DC bias voltage to the voltage of the potentiometer and outputs a voltage difference. The IC on the circuit board will decide the rotate direction accordingly and drive the core-less motor. The gear then pass the force to the shaft. The sensor will determine if it has reached the commanded position according to the feedback signal. Servo motors are used in control systems that requires to have and maintain different angles. When the motor speed is definite, the gear will cause the potentiometer to rotate. When the voltage difference reduces to zero, the motor stops. Normally, the rotation angle range is among 0-180 degrees.


Servo motor comes with many specifications. But all of them have three connection wires, distinguished by brown, red, orange colors (different brand may have different color). Brown one is for GND, red one for power positive, orange one for signal line.

Specifications

  • Operating voltage: DC 4.8V〜6V

  • Angle range: about 180°(in 500→2500μsec)

  • Pulsewidth range: 500→2500μsec

  • No-load speed: 0.12±0.01 sec/60(DC 4.8V); 0.1±0.01 sec/60(DC 6V)

  • No-load current: 200±20mA(DC 4.8V); 220±20mA(DC 6V)

  • Stop torque: 1.3±0.01kg/cm(DC 4.8V); 1.5±0.1kg/cm(DC 6V)

  • Stop current: ≦850mA(DC 4.8V); ≦1000mA(DC 6V)

  • Standby current: 3±1mA(DC 4.8V); 4±1mA(DC 6V)

  • Operation temperature: -10℃〜50℃

  • Save temperature: -20℃〜60℃

  • Motor wire length: 250 ± 5 mm

  • Dimensions: 22.9mm*12.2mm*30mm
