Description

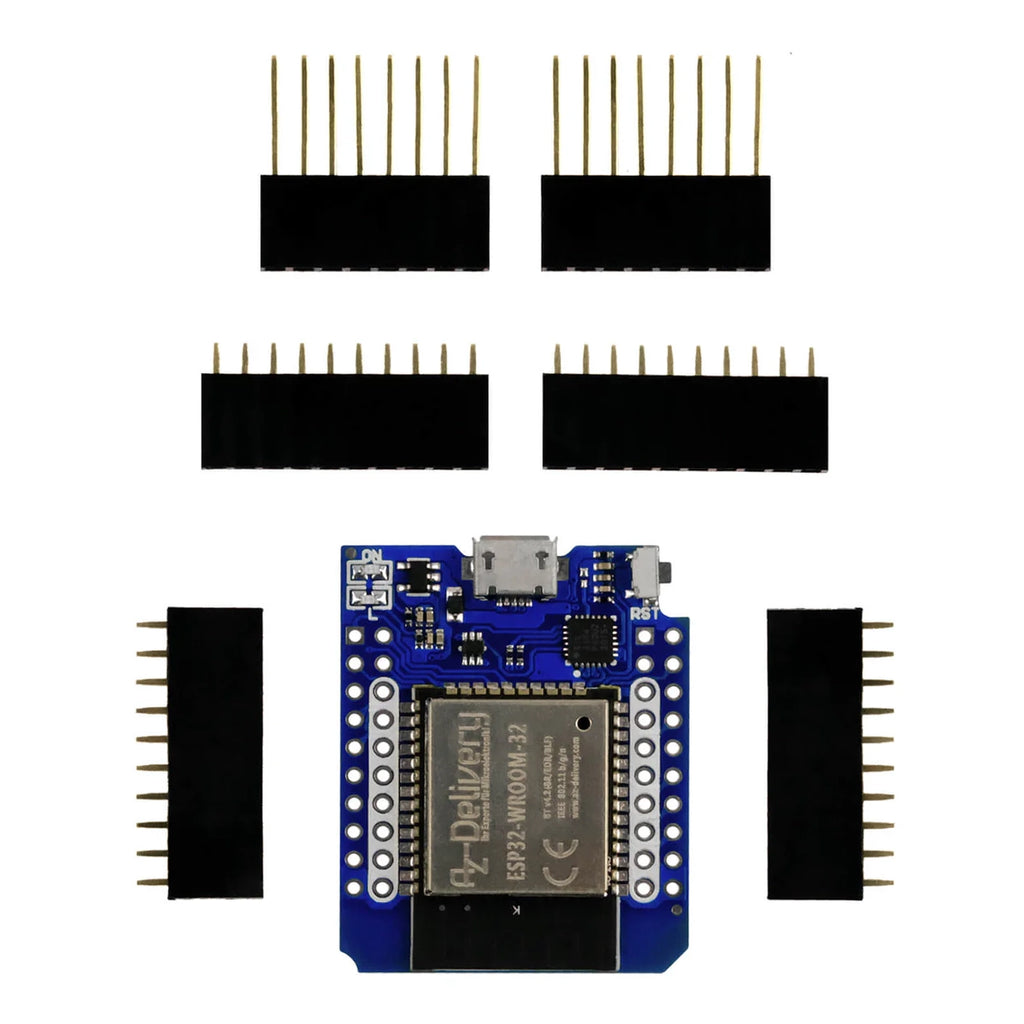

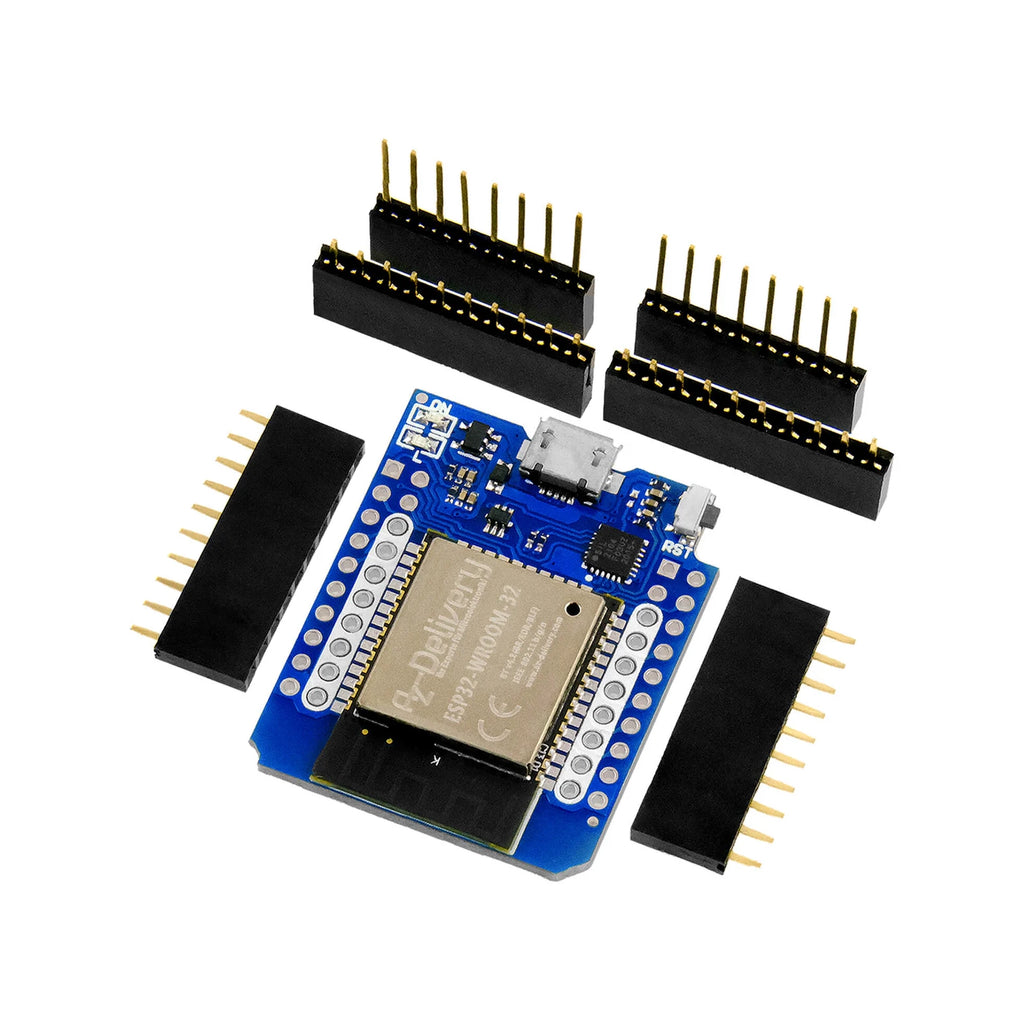

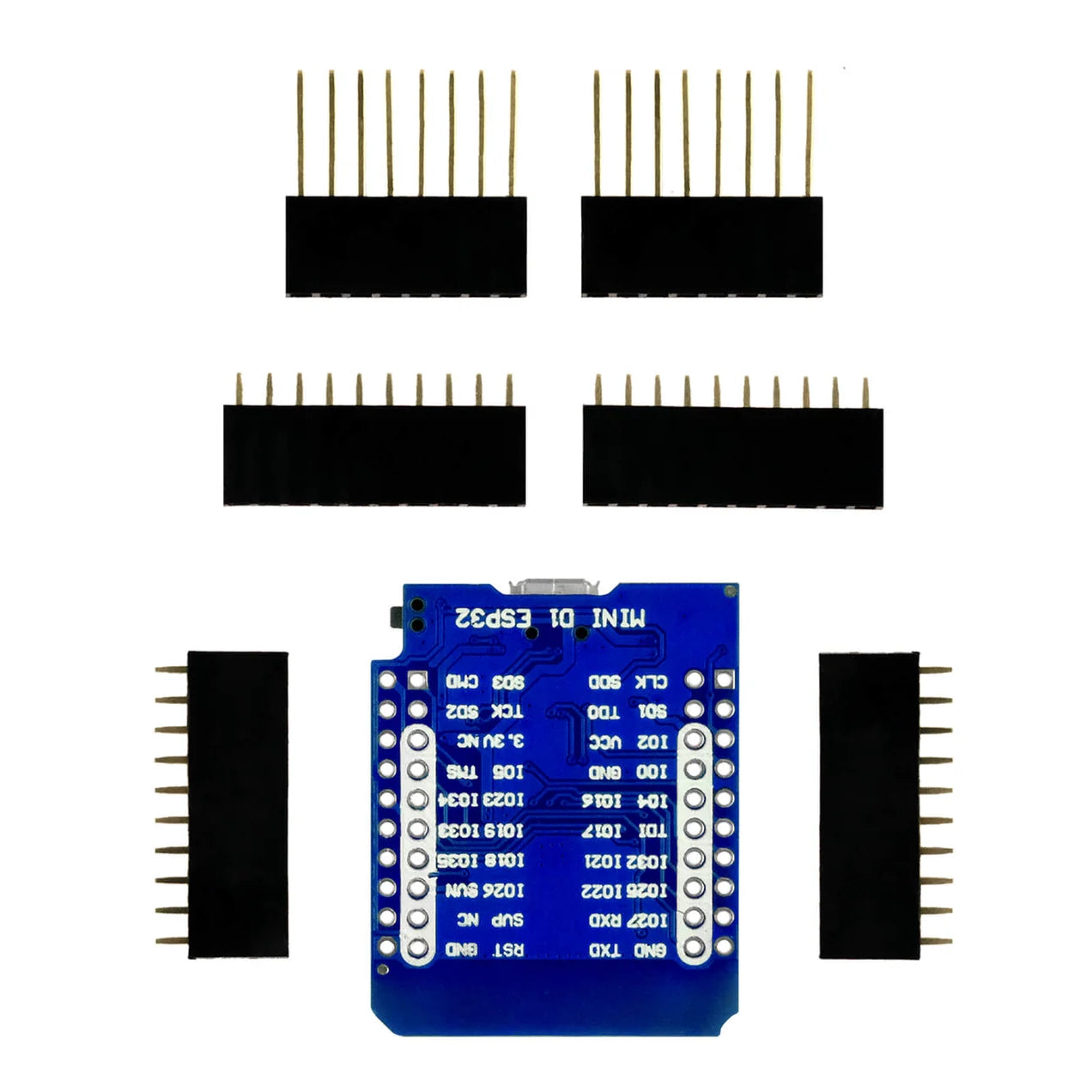

The D1 Mini ESP32 is a compact yet powerful development board featuring the ESP-WROOM-32 module, equipped with integrated WiFi and Bluetooth (BR/EDR/BLE). Built on TSMC’s ultra-low-power technology, this board balances performance and energy efficiency, making it ideal for battery-powered and portable projects.
With its ESP32-D0WDQ6 chip, it offers robust processing power and rich connectivity, while maintaining compatibility with most D1 Mini ESP8266 accessories. Its compact size and low quiescent current (under 5μA) make it perfect for IoT, automation, and wearable applications.
Specifications:
- Dimensions: 39 x 31.5 mm
- Weight: 12g
- Chipset: ESP32-D0WDQ6 (Dual-core)
- WiFi: 2.4 GHz (802.11 b/g/n)
- Bluetooth: v4.2 (BR/EDR/BLE)
- Flash Storage: 4MB
- USB-TTL: CP2104
- Operating Voltage: 5V DC
- Integrated PCB Antenna
- RAM: 520 KB SRAM / 448 KB ROM
