Description

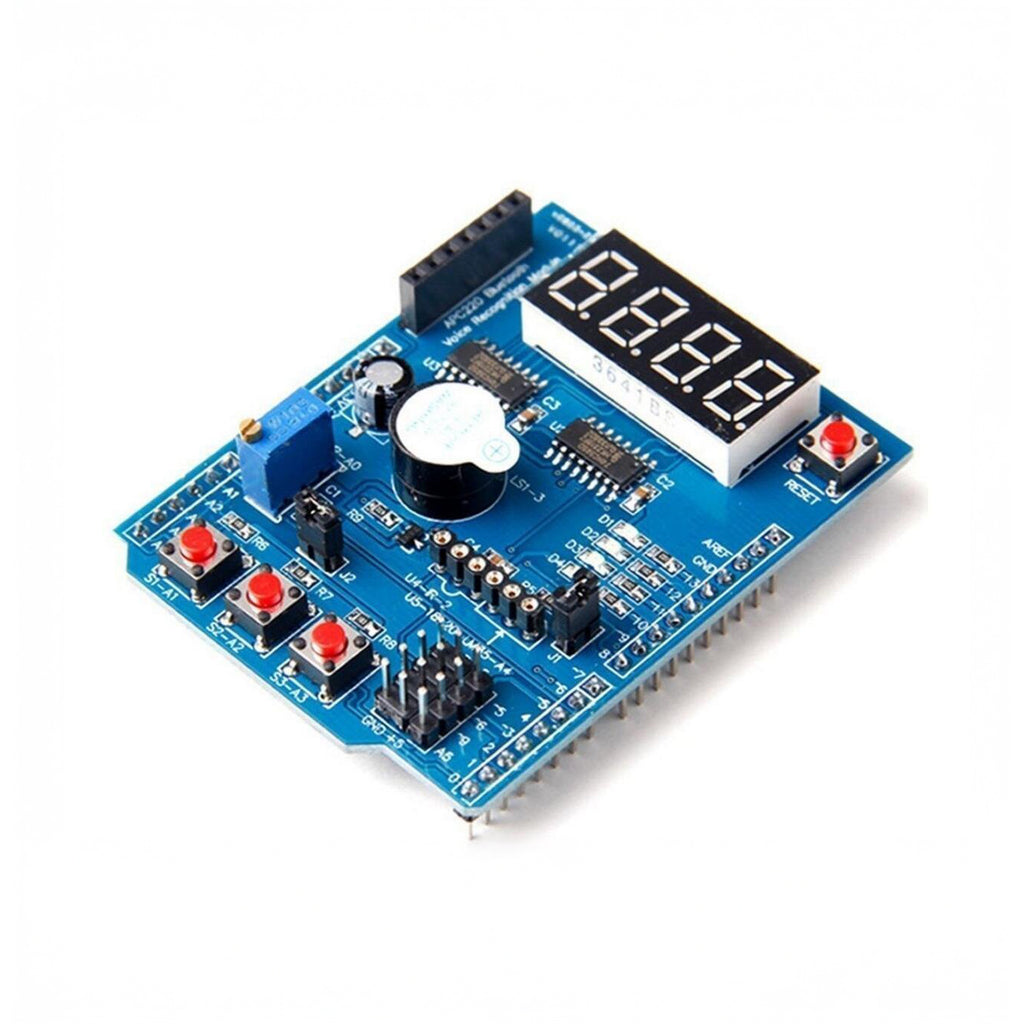

The Multi-Function Shield is a versatile and compact expansion board designed to supercharge your Arduino projects by providing multiple features like 4-digit 7-segment display, buttons, LEDs, buzzer, and sensor interfaces. It’s the perfect tool for learning, prototyping, and experimenting, no extra wiring required.
Features

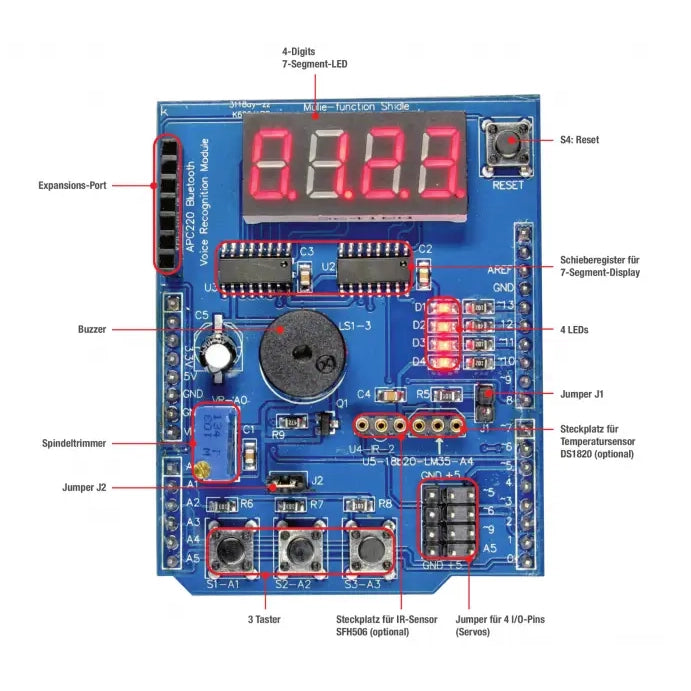

4 x LEDs
3 x pushbuttons
1 x reset button
1 x piezo buzzer
1 x LED display module (four-digit, seven-segment)
2 x serial LED display driver ICs(74HC595)
1 x multi-turn trim pot (10K)
1 x port for DS18B20 temperature sensor
1 x port for TSOP1838 infrared receiver module
1 x APC220 wireless module interface (serial/UART interface)
Compatibility:
| Board | Compatibility |
| Arduino Uno R3 | Full |
| Arduino Uno R4 | Full |
| Arduino Nano | With adapter |
| Arduino Mega 2560 | With code changes |
| Arduino Leonardo | With minor adjustments |
Find the guide here.
NOTE: This is the shield only, the Arduino mainboard is not included.
