Description

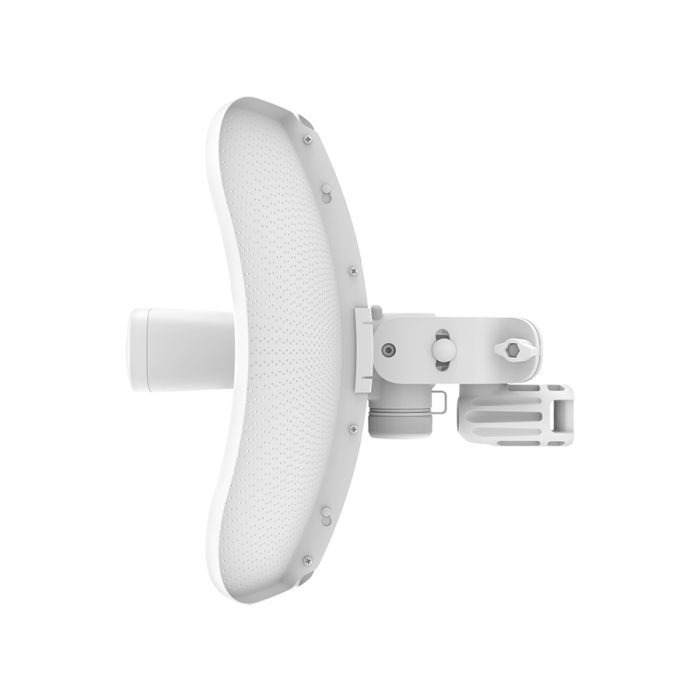

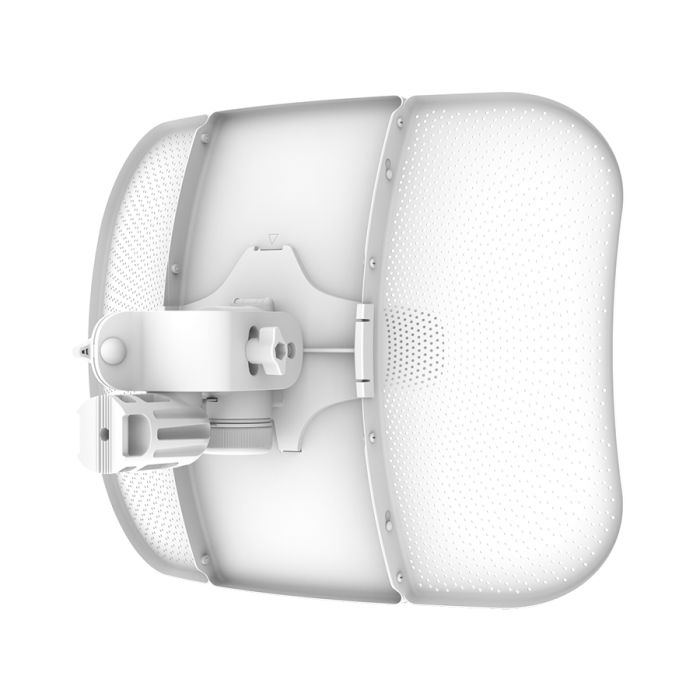

The UBIQUITI airMAX LiteBeam 5AC Gen2 is a directional 5 GHz outdoor radio for wireless point-to-point links and customer-premises connections. Its 23 dBi antenna focuses the signal towards the remote site, making it useful where a wired network connection is impractical.
A dedicated 2.4 GHz management radio helps with setup from a mobile device, while the Gigabit Ethernet port carries network traffic and 24 V passive PoE power. A complete point-to-point link normally requires a compatible radio at the other end, clear line of sight and configuration for local radio regulations.
Why you’ll love it
- Focused 5 GHz link: The 23 dBi directional antenna is suited to outdoor wireless links.
- Convenient setup: A separate 2.4 GHz management radio supports installation and alignment.
- Gigabit connection: One GbE port connects the radio to the local network.

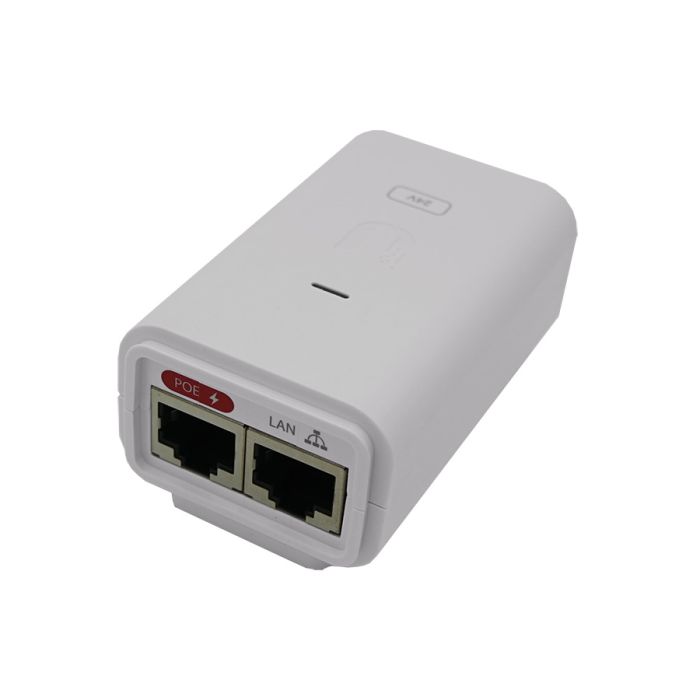

- PoE adapter included: The supplied 24 V passive PoE adapter carries power and data over the Ethernet run.
Technical specifications
- Model: LBE-5AC-GEN2
- Radio band: 5 GHz with separate 2.4 GHz management radio
- Antenna gain: 23 dBi
- Networking: 1 × Gigabit Ethernet RJ45 port
- Power: 24 V passive PoE; 24 V, 0.3 A Gigabit PoE adapter included
- Maximum power consumption: 7 W
- Dimensions: 358 × 271.95 × 272.5 mm
- Operating temperature: -40 to 70 °C

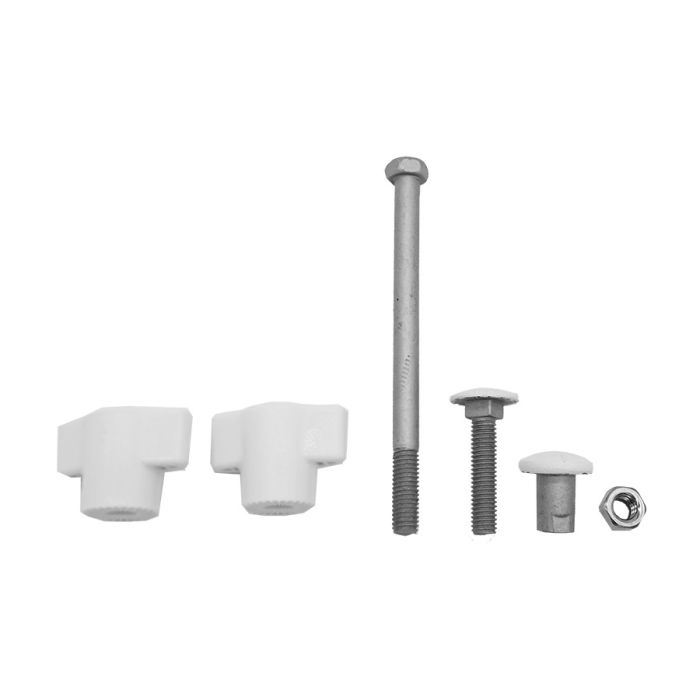

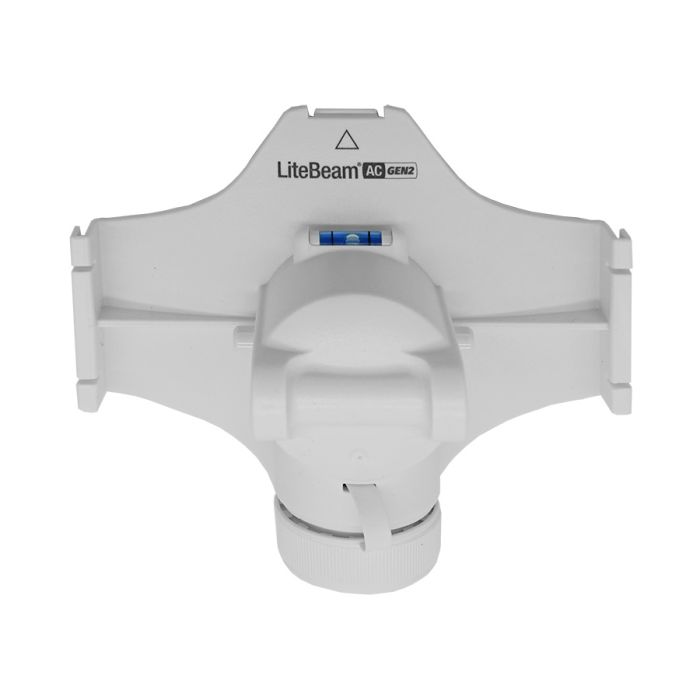

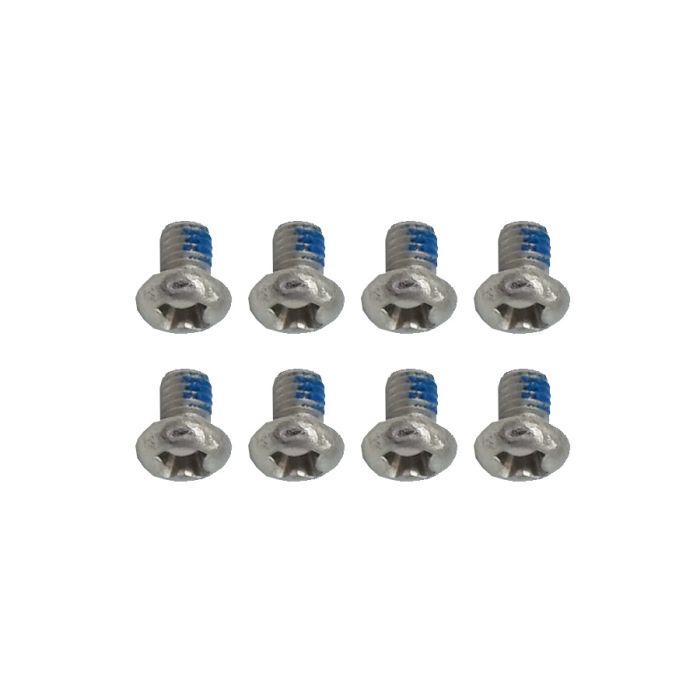

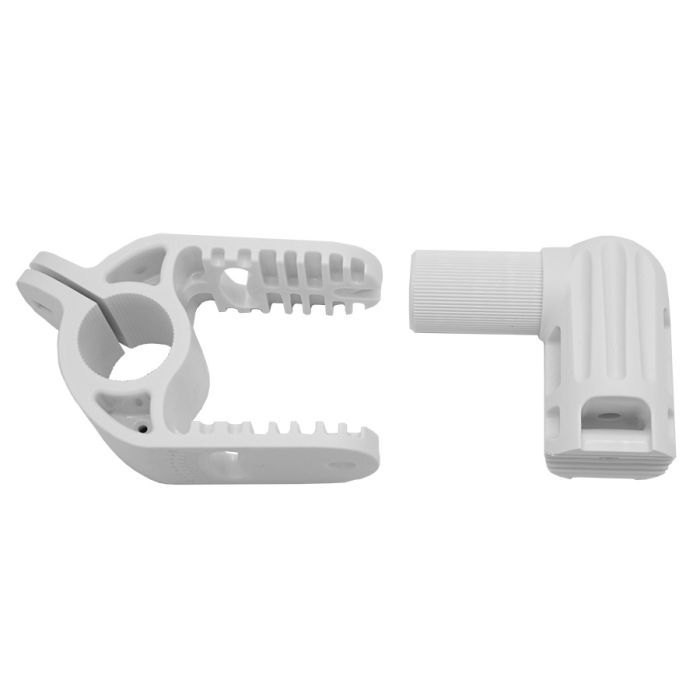

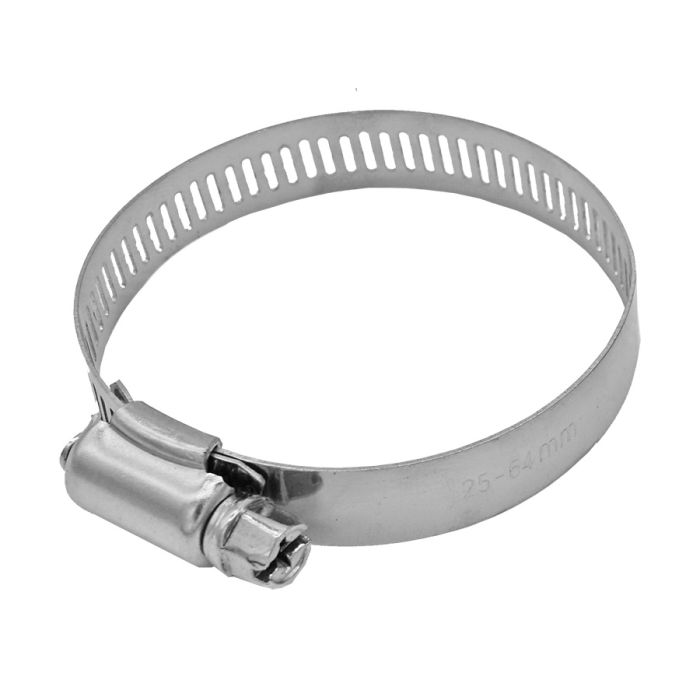

- Mounting: Pole mounting hardware included
