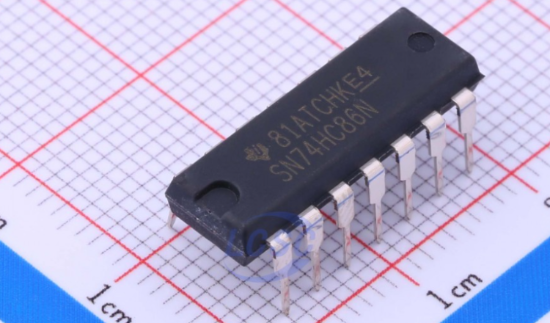

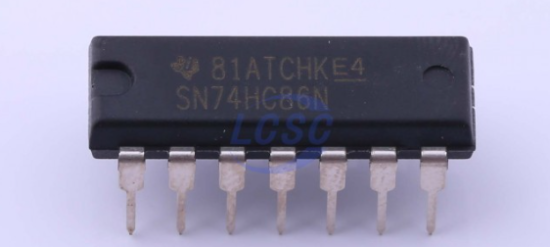

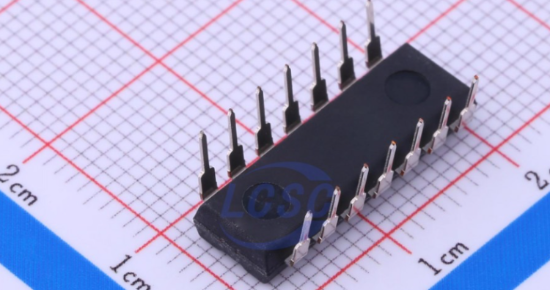

Description

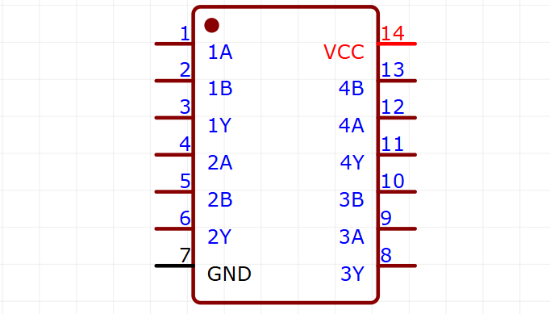

These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A B or Y = AB + AB in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Specifications
- Input Logic Level - High: 1.5V~4.2V
- Input Logic Level - Low: 500mV~1.8V
- Logic Family: 74HC Series
- Operating Temperature: -40℃~+85℃
- Output Logic Level - High: 1.9V;4.4V;5.9V
- Quiescent Current (Iq); 2uA
- Voltage - Supply: 2V~6V
- Current - Output High (IOH): 5.2mA
- Number of Channels: 4;2
- Output Logic Level - Low: 100mV
- Propagation Delay: 17ns@6V,50pF
- Current - Output Low (IOL): 5.2mA
