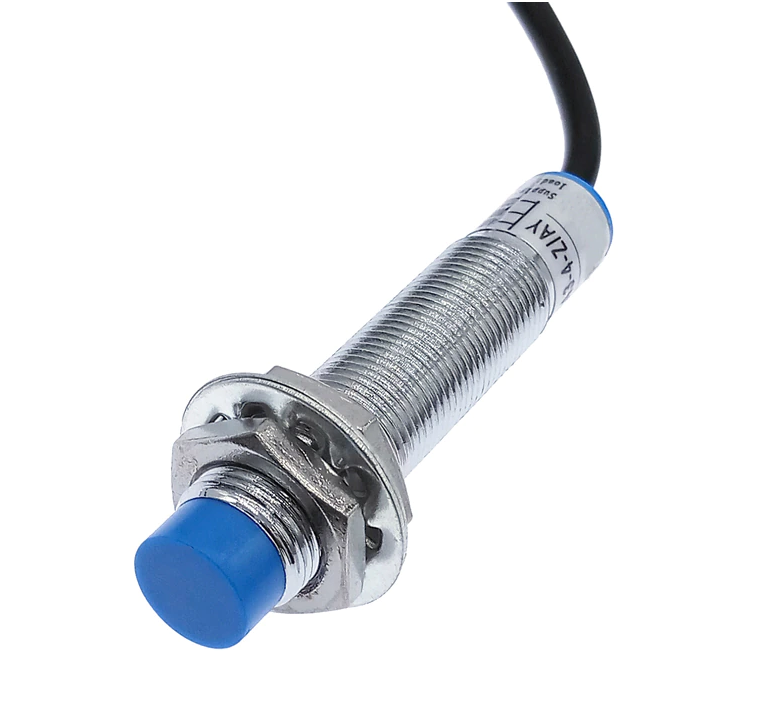

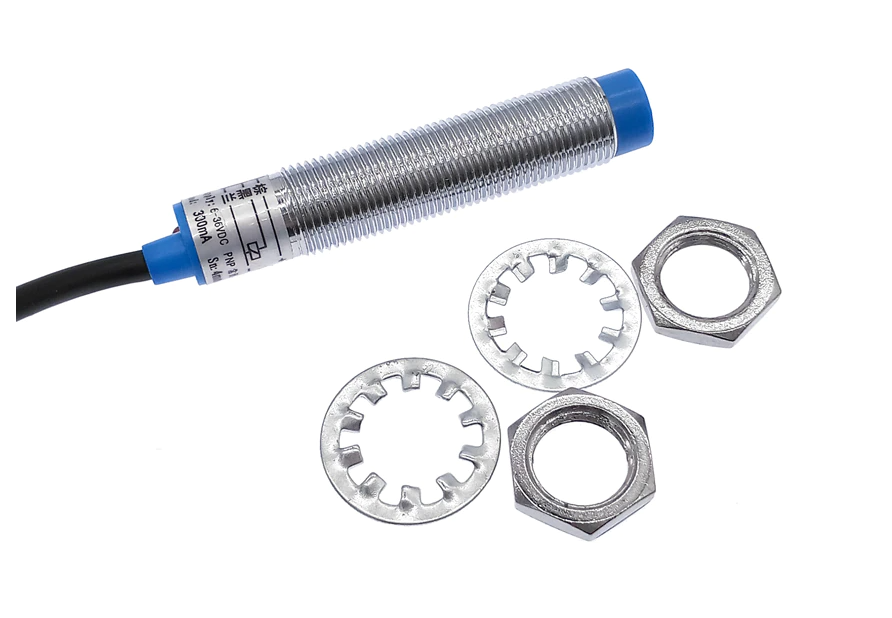

LJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity Switch
LJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity Switch
LJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity Switch
LJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity Switch
Roll over image to zoom in Click on image to zoom
LJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity SwitchLJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity SwitchLJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity SwitchLJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity Switch

LJ12A3-4-Z/BX NPN 24V Approach Sensor inductive Proximity Switch

LafvinSKU: F121
Price:
N$55.26

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

Inductive proximity and approach sensor.

Details

  • Detection distance:  4mm ± 10%
  • Set distance:  0~3.6mm
  • Current:  6V 360mA, 12V 200mA, 24V 96mA,   maximum instantaneous current 2A
  • Delay distance:  10% below of the detection distance
  • Detection object:  Magnetic metal(the detection distance decreases when it is non-magnetic metal)
  • Stand detection object:  Iron 15*15*1mm
  • Response frequency:  DC:0.5kHz
  • Supply voltage:  DC type:DC12V DC24V DC36V(6~36V)impulse(p-p)10% below
  • Withstand voltage:  AC1000V 50/60Hz 1min between charging part and housing
  • Meterial:  (Housing:Nickel plated brass) (Detection surface:ABS)
  • Protection influence:  IP67(IEC specification)
