Description

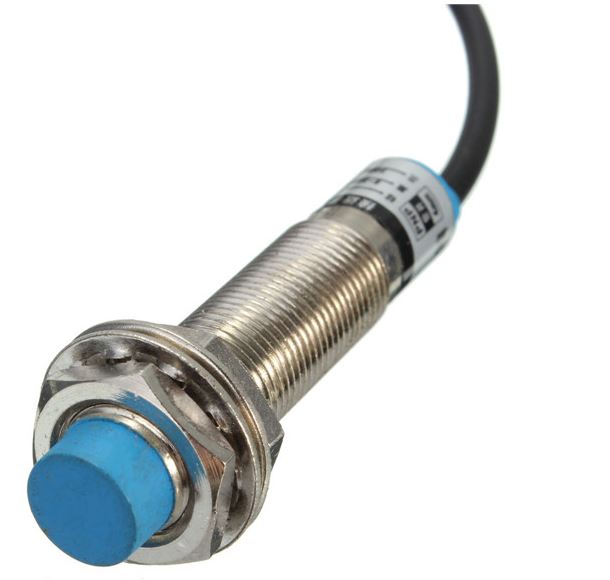

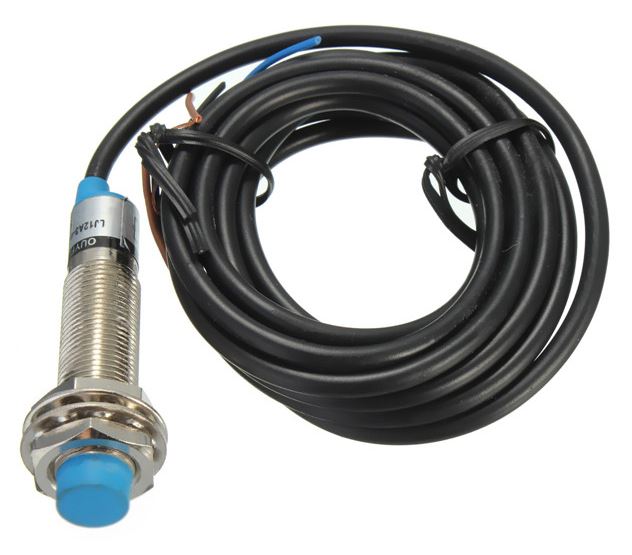

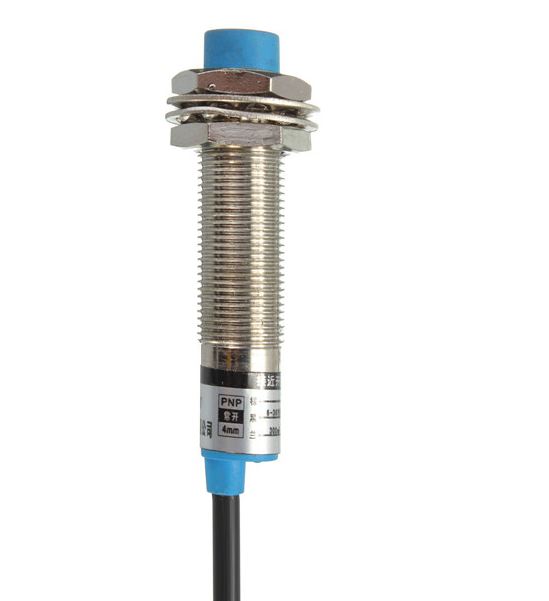

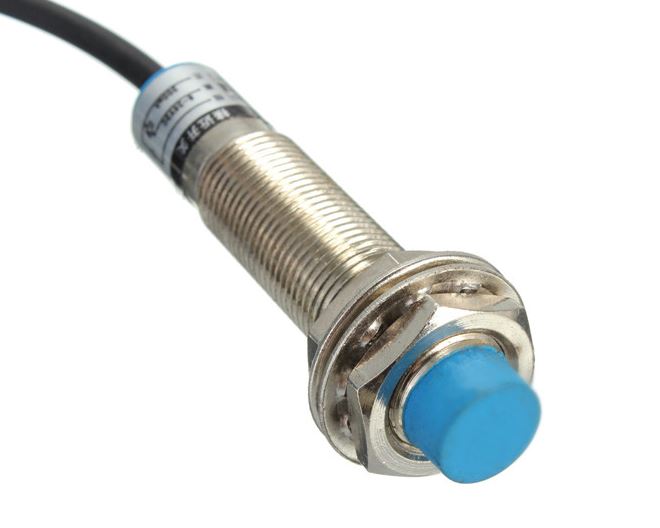

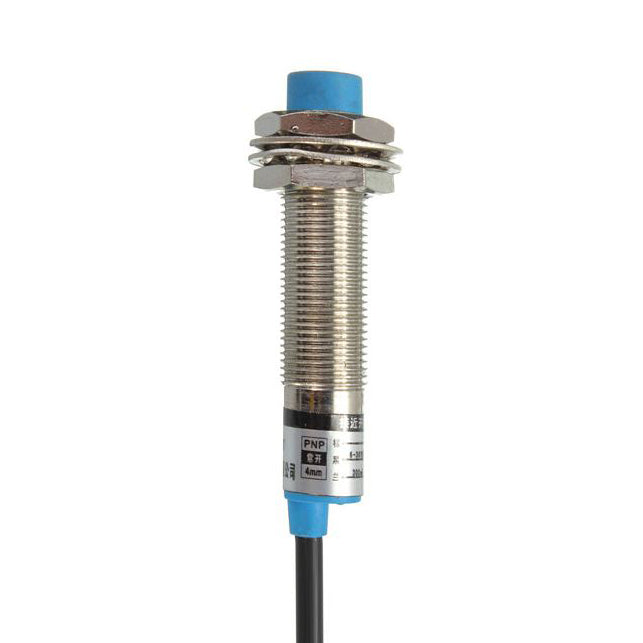

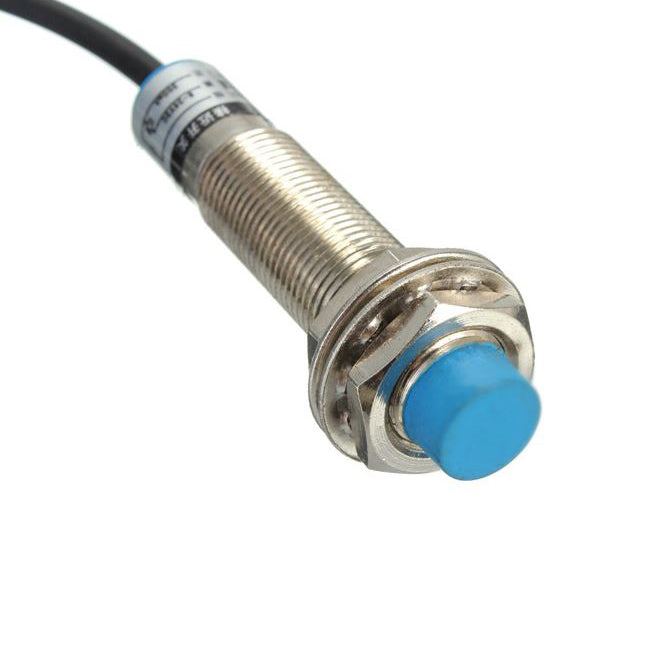

The LJ12A3-4-Z/BY is a compact and durable inductive proximity sensor designed for reliable non-contact detection of metal objects. Operating on a PNP output and a DC voltage range of 6–36V, this sensor can detect metallic surfaces up to 4mm away. Housed in a threaded cylindrical M12 brass body, it offers easy installation in industrial automation systems, CNC machinery, and robotics. The sensor provides a clear signal when metal is detected, making it ideal for object counting, positioning, and presence detection applications.
Features
- Proximity switches, also known as non-contact proximity switch, is the ideal electronic switch sensor.
- Detects metal when near proximity switch sensing area.
- Switches are non-contact, no pressure, no spark and fast.
- Accurate with long life span as it is non contact
- Easy to install and suitable for harsh environments with the ability to adjust.
- General mechanical limit switch can not be compared.
Specifications
- Model : LJ12A3-4-Z / BY
- Operating Voltage : DC 6-36V
- Output Type : PNP
- Detection object : metal objects
- Detection distance : 4 mm
- Output Current : 300 mA
- Response Frequency : 0.5KH
- Working temperature : Temperature range -30 ° to +60 °
- Dimensions : 12 mm screw diameter
- Cable length : about 115 cm
- Material : Metal and plastic
