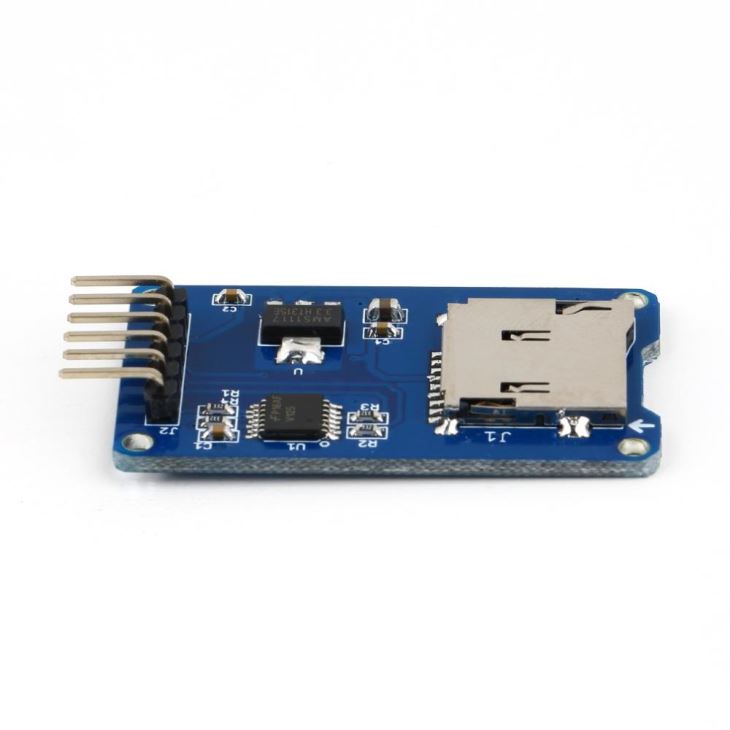

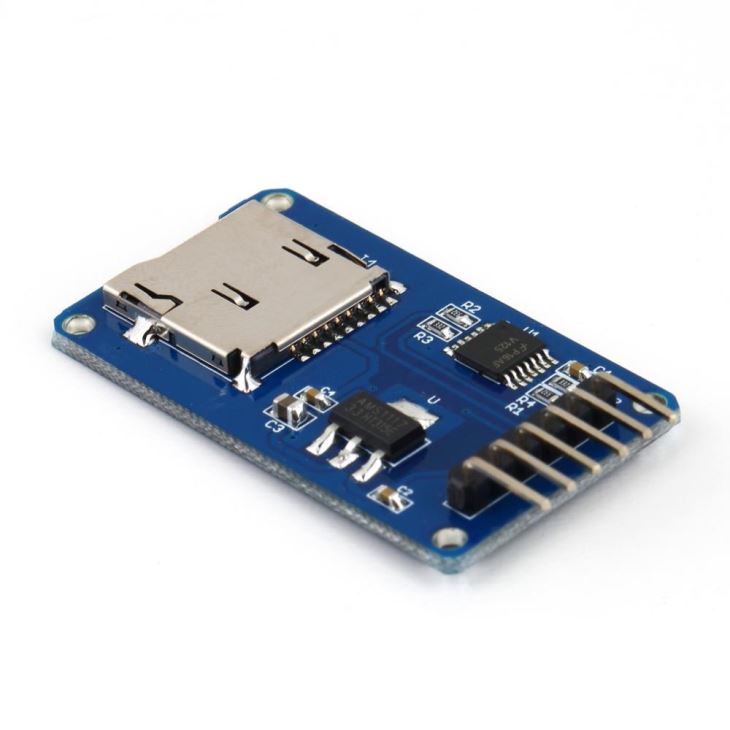

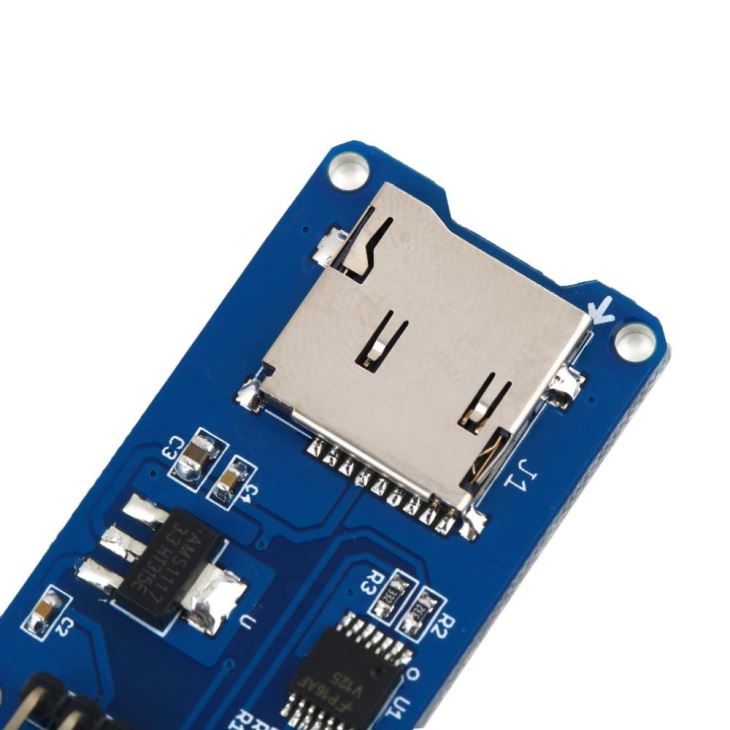

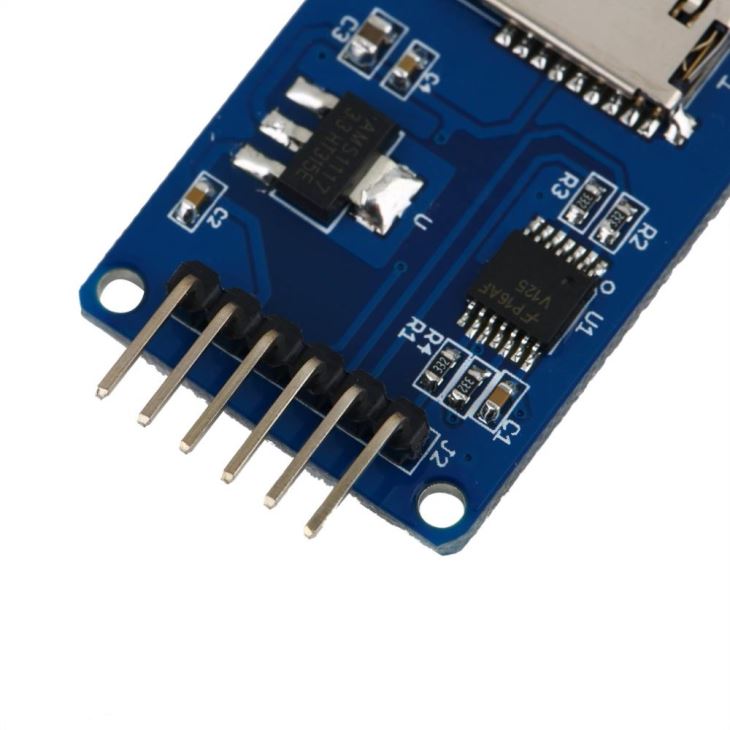

Micro SD Card Module Mini TF Card Read and Write 6pin

LafvinSKU: C215

Price:
Sale priceN$17.65

Description

Micro SD Card Module Mini TF Card Read and Write 6pin

Specifications

    • Support Micro SD Card, Micro SDHC card (high-speed card)
    • The level conversion circuit board that can interface through 5V or 3.3V
    • Communication interface is a standard SPI interface
    • Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS)
    • VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin;
    • 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip
    • Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination;

    Specifications

    • Power supply:4.5V - 5.5V, 3.3V voltage regulator circuit board
    • Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm
    • Control Interface: GND, VCC, MISO, MOSI, SCK, CS
    • Size:45 x 28mm
    • Net weight:6g
