Description

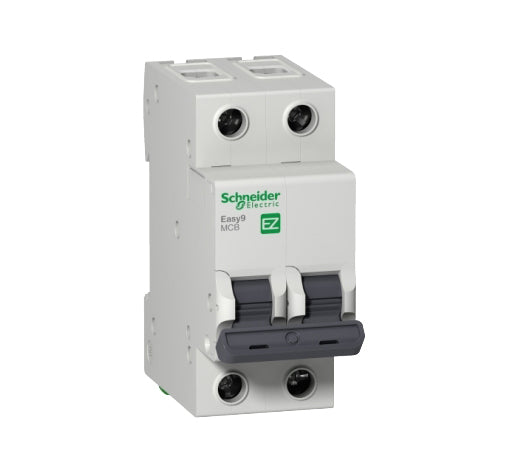

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 6A In rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard.
Specifications
| Range | Easy9 |
|---|---|
| Device application | Distribution |
| Product or component type | Miniature circuit-breaker |
| Device short name | Easy9 MCB |
| Poles | 2P |
| Number of protected poles | 2 |
| [In] rated current | 6 A |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 3 kA Icu at 400 V AC 50/60 Hz conforming to SANS 60947-2 |
| Utilisation category | Category A |
| Suitability for isolation | Yes conforming to SANS 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Magnetic tripping limit | 8.5 x In +/- 20 % |
| [Ics] rated service breaking capacity | 3 kA 100 % x Icu at 400 V AC 50/60 Hz conforming to SANS 60947-2 |
| Limitation class | 3 conforming to SANS 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to SANS 60947-2 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to SANS 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | Without |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 66.5 mm |
| Net weight | 0.2 kg |
| Colour | Grey (RAL 7035) |
| Mechanical durability | 10000 cycles |
| Electrical durability | 4000 cycles |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Tightening torque | 2 N.m top or bottom |
Environment
| Standards | SANS 60947-2 |
|---|---|
| product certifications | CE |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 2 |
| Relative humidity | 95 % at -5…60 °C |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage |
-40…85 °C |
