Description

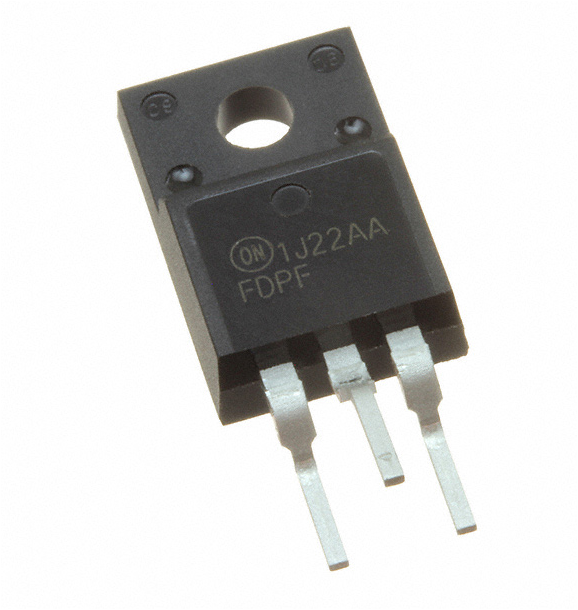

MOSFET N-CH 250V 44A TO220F
Specifications
|
Mfr |
onsemi |
|
Part Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
250 V |
|
Current - Continuous Drain (Id) @ 25°C |
44A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
69mOhm @ 22A, 10V |
|
Vgs(th) (Max) @ Id |
5V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
61 nC @ 10 V |
|
Vgs (Max) |
±30V |
|
Input Capacitance (Ciss) (Max) @ Vds |
2870 pF @ 25 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
38W (Tc) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
TO-220F (LG-Formed) |
|
Package / Case |
TO-220-3 Full Pack, Formed Leads |
|
Base Product Number |
FDPF44 |
