Description

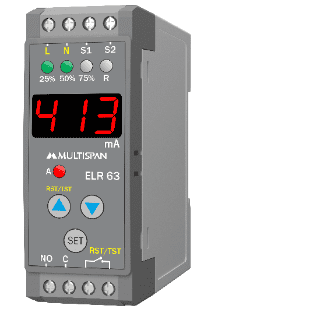

The MULTISPAN Earth Leakage Relay & Earth To Neutral Voltage ELR -63 is a dual-function protection device that combines earth leakage detection with earth-to-neutral voltage monitoring. Designed to enhance electrical safety, it provides reliable tripping in case of leakage currents and alerts for unsafe voltage conditions. Suitable for industrial and commercial panels, it ensures effective protection against electrical faults and ground loop issues.
Specifications
| Model Name/Number | ELR-63 |
| Pannel Cutout(mm) | Din rail mounting |
| Input signal | 30mA to 3AMP AC thru. External CBCT |
| Range | 30mA to 3.00A AC |
| output | 1Relay (No-C-NC) 5A,230V AC (Resistive load) |
| Accuracy | class 0.5 |
| Supply | 100-270V AC(SMPS), 50/60Hz, Approx 4VA |
| Dimension (HxWxD) | 76x28x85 |
