Description

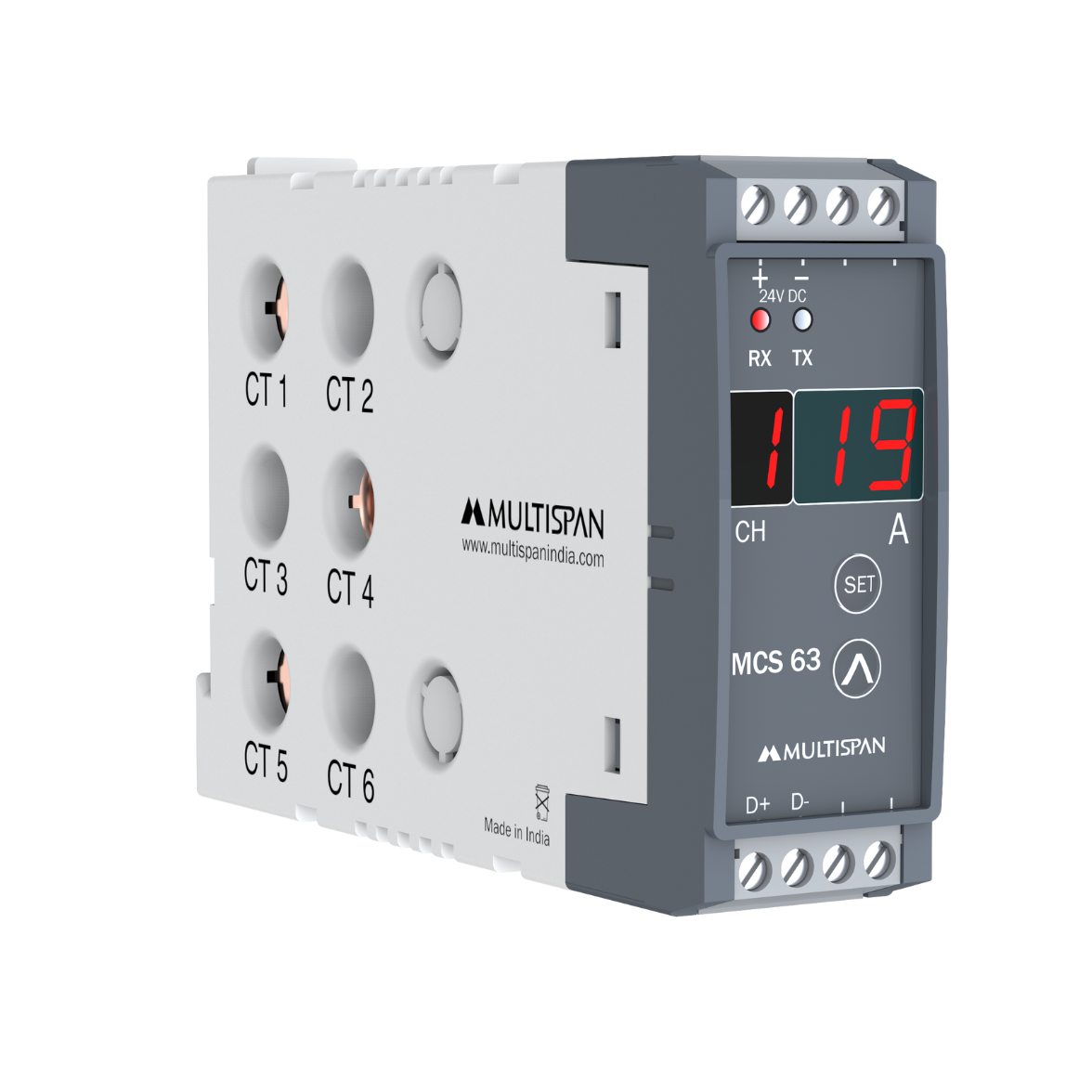

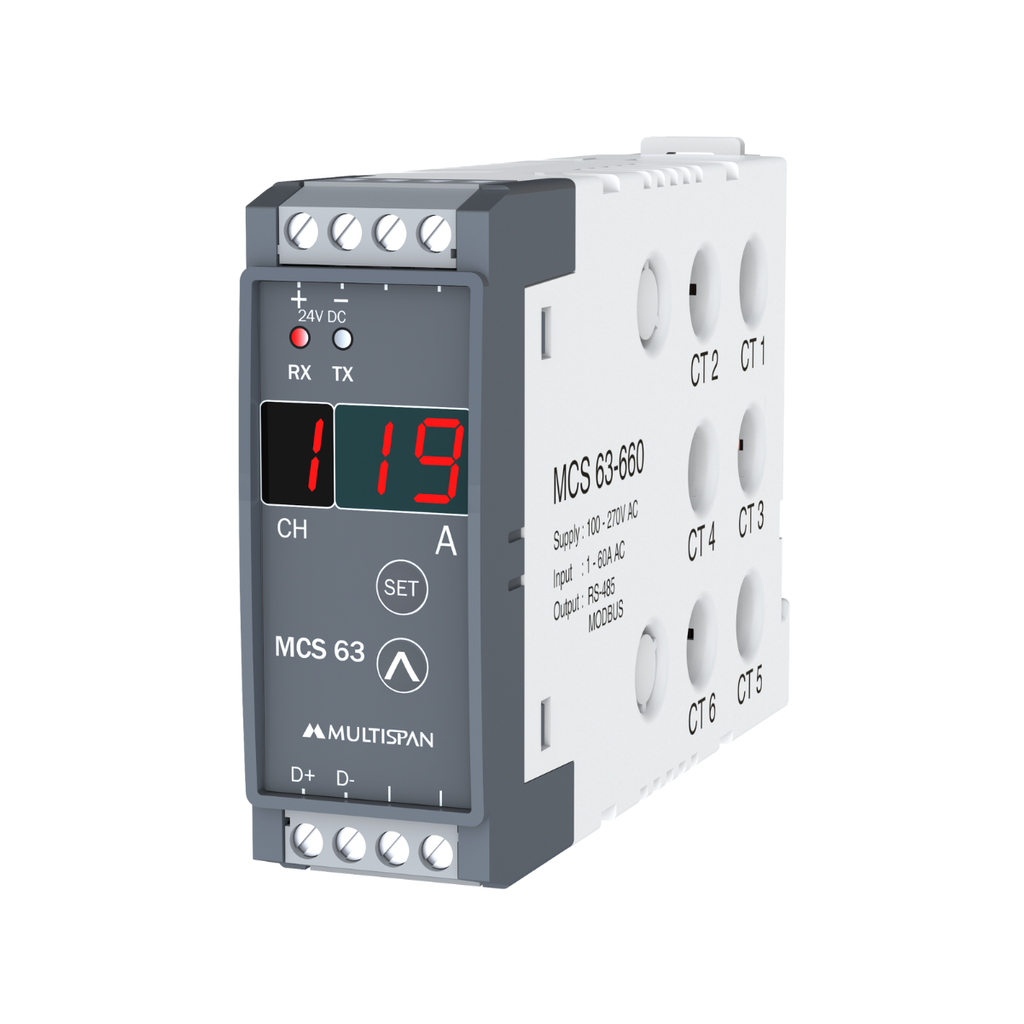

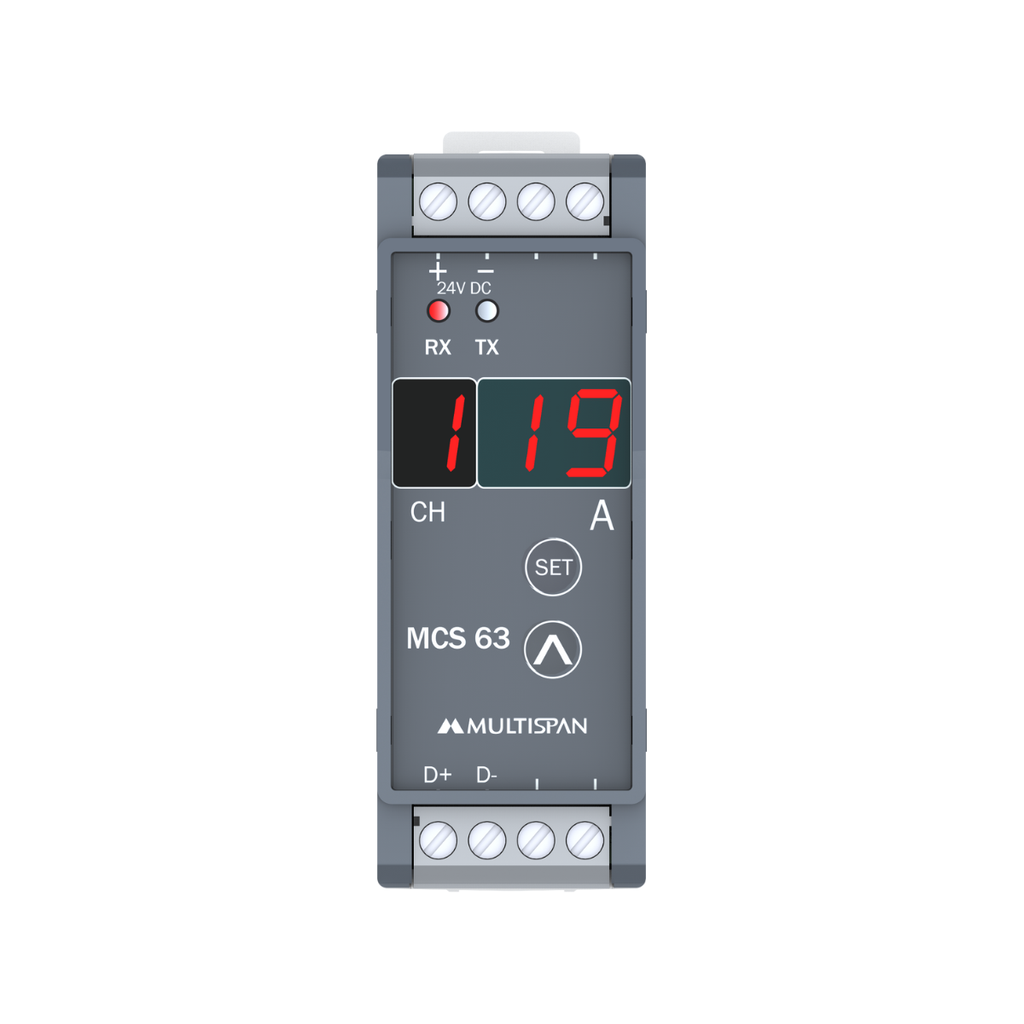

The MCS-63-660 is a reliable multi-channel current scanner designed to monitor and display up to 6 different current channels in real-time. Ideal for industrial and panel applications, it offers high accuracy, clear digital display, and user-friendly operation. Perfect for current monitoring in multi-load systems or distribution panels.
Specifications
- 8-CT Input with Inbuilt 60A AC Current
- Compact Size with 3-Digit Led Display
- RS-485 Modbus Output
- Size: (H)76mm x (W)28mm x (D)118mm
- Supply Voltage: 100-270V AC/24V DC
| INPUT SPECIFICATION: | |
| Current AC | 1 To 60 Amp. |
| Burden | < 0.2VA |
| Overload | Up to 65A continuous |
| CALCULATED PARAMETERS | |
| 6 Different CT Current | |
| DISPLAY & KEYS: | |
| Display | 3-Digit, 7-Seg, 0.36”, Red. |
| Keys | SET, INC |
| DIMENSION | |
| Size (mm) | 76(H) x 28(W) x 116(D) |
| COMMUNICATION SPECIFICATION | |
| Protocol | Modbus RTU Serial |
| Standard | RS - 485 |
|
Communication |
2-Wire Half Duplex |
| Data frame | N-8-0,N-8-1,N-8-2 |
| Communication rate |
2400,4800,9600,19200, |
| Slave Address | 1 to 127 |
| Data type | Integer, Float |
| AUXILIARY POWER SUPPLY: | |
| Power Supply | 24 V DC |
| ENVIRONMENTAL CONDITION | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH Non - Condensing |
Application
- Road Construction Panel
- Injection Moulding
- Plastic Process Industry
- Feeder Panel
- Industrial Automation Panel
