Description

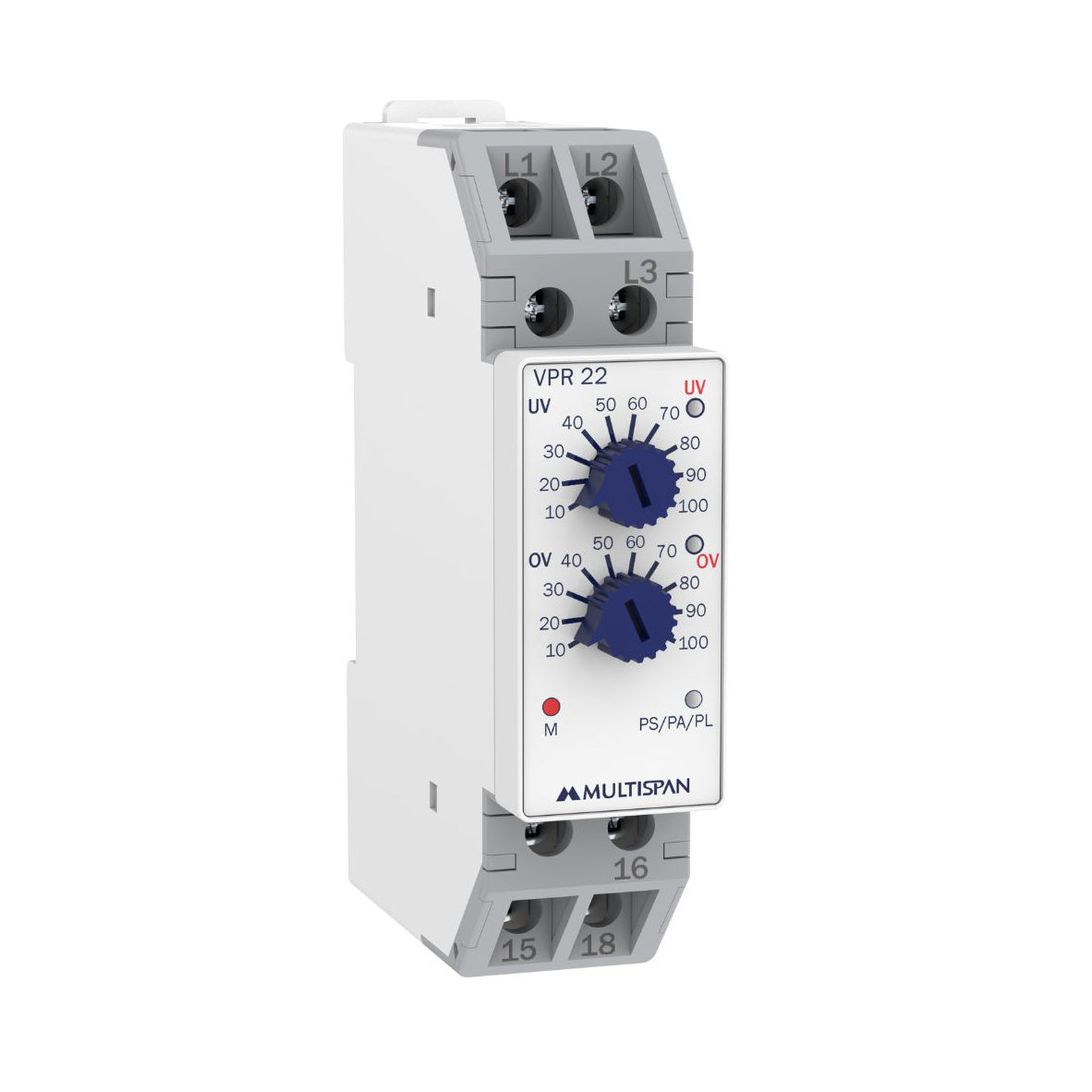

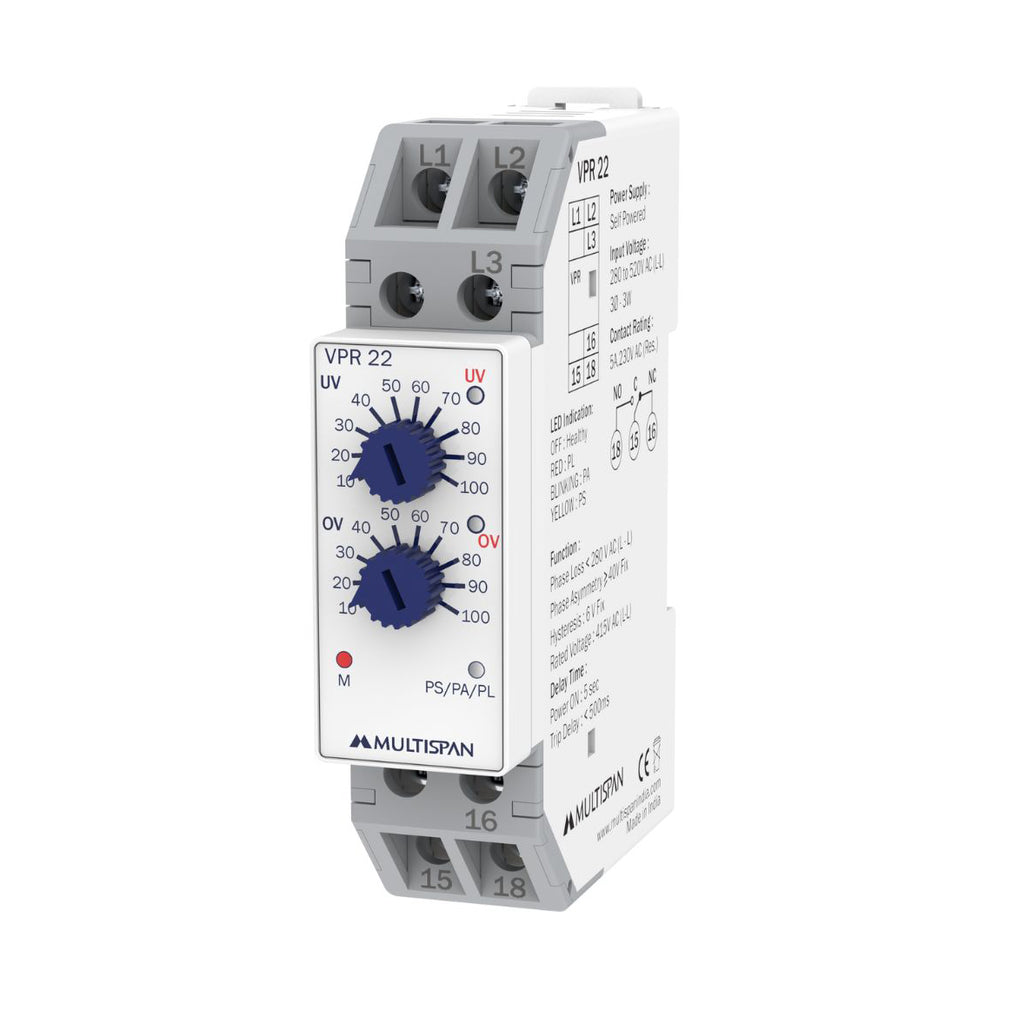

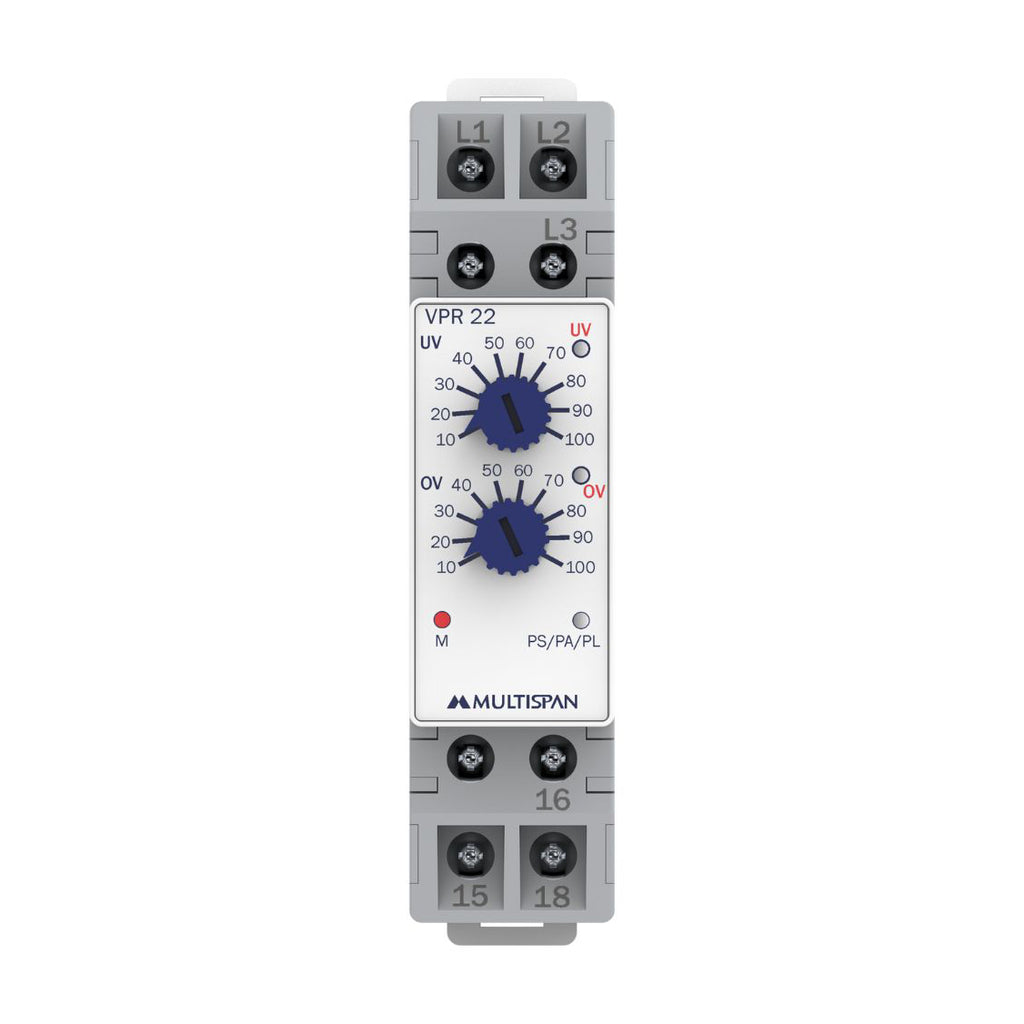

The MULTISPAN Voltage Protection Relay Din Rail Mount VPR-22 is a reliable single-phase voltage protection relay designed to protect electrical equipment from abnormal voltage conditions. It offers precise monitoring of over-voltage and under-voltage limits, with quick response time and easy DIN rail mounting. Ideal for residential, commercial, and industrial control panels.
Key Features:
- Selection of Under- Over Voltage by Knob
- Trip Delay 5 sec.
- 1-Relay, 2-C/O, 5A, 230V AC
- Size: (H)90mm X (W)22.5mm X (D)71mm
- Self-Powered
Specifications
Parameter | Specification |
---|---|
Power Supply | Self Power |
Input Voltage | 280 to 520V AC (L-L) 3Ø -3W |
Rated Voltage | 415V AC (L-L) |
Output | 1-Relay, 1-C/O, 5A 230V AC Resistive Load |
Tripping Parameters | Under Voltage |
Over Voltage | |
Phase Asymmetry | |
Phase Sequence | |
Phase Loss |
Application
- DG Set Panels
- Motor Control Center Panels
- Control Panels
- Distribution Panels
- Process Control
