Description

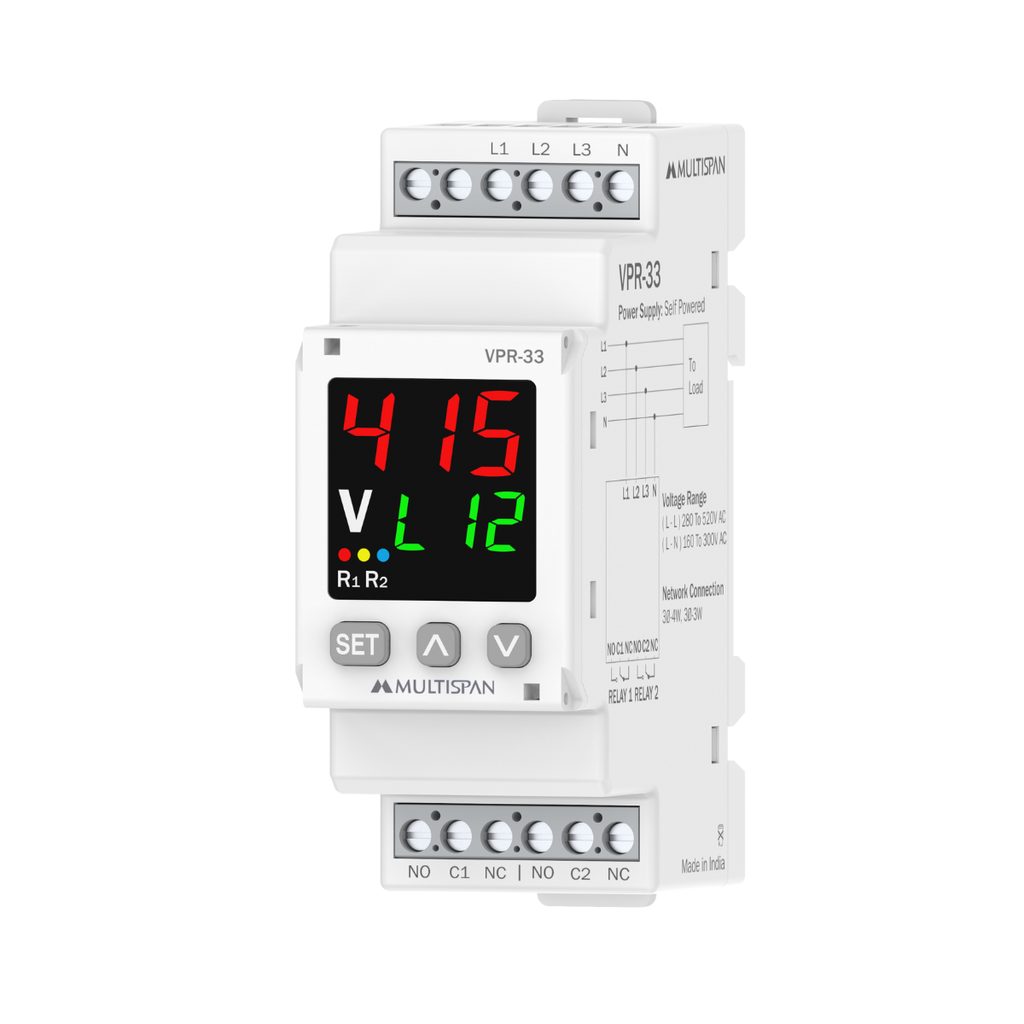

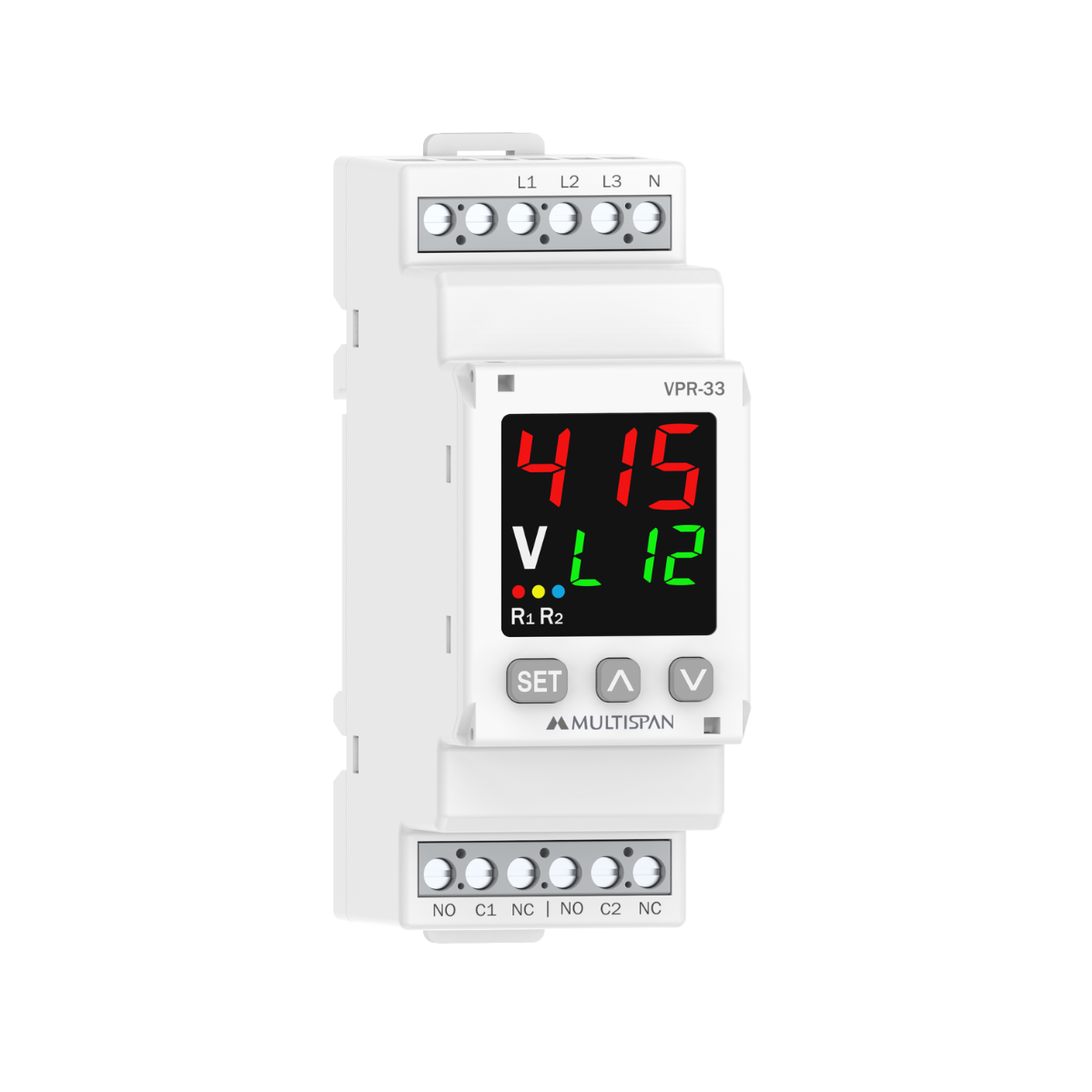

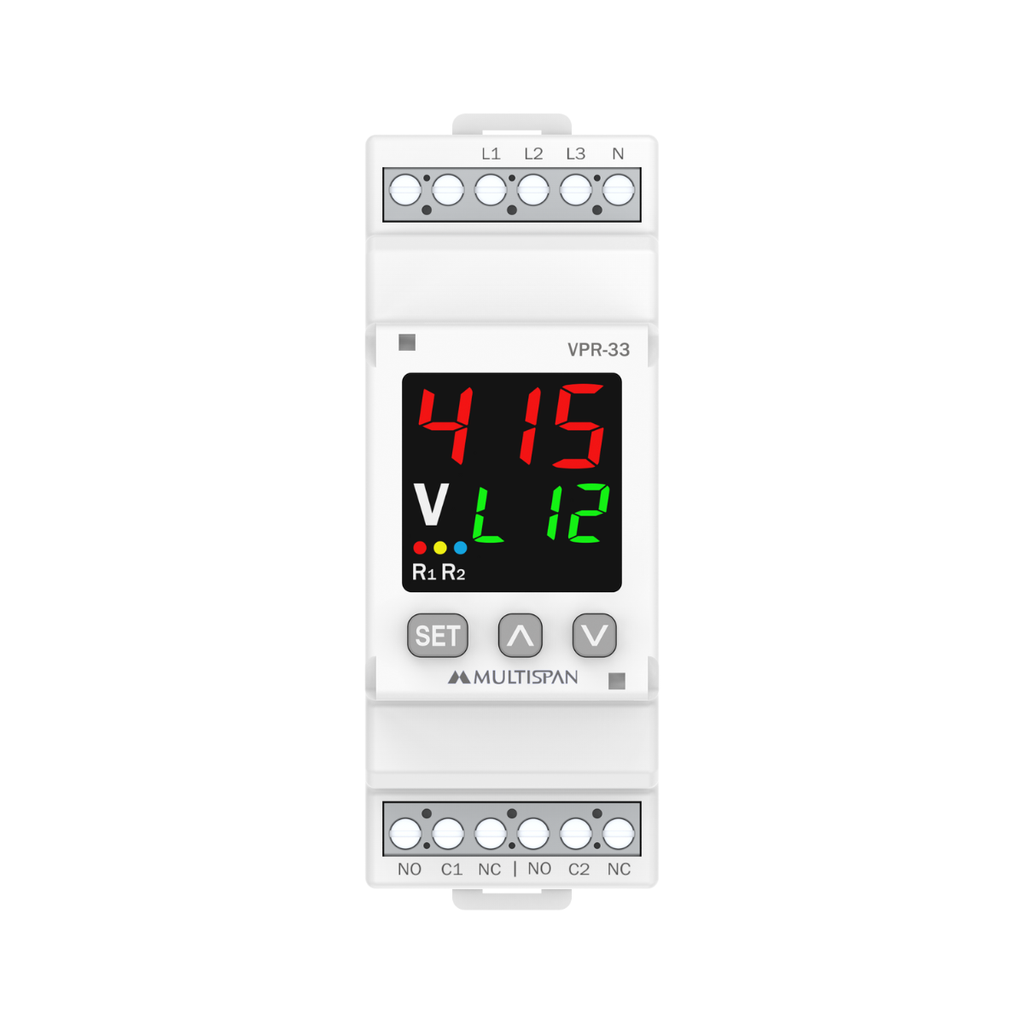

The MULTISPAN VPR-33-00 Voltage Protection Relay- Digital Din Rail Mount is a digital voltage protection relay designed to safeguard electrical systems from under and over-voltage conditions. Featuring precise monitoring, LED indicators, and easy DIN rail mounting, it's ideal for industrial and commercial electrical panels. Ensures system stability and protects connected equipment from voltage fluctuations.
Specifications
- 3 + 3 Digit, 7-Segment Red + Green or Red + White LED for Bright Visibility
- 2-Relay Option Available
- Programmable Tripping Parameter On
- Over & Under Voltage, Phase Asymmetry, Phase Loss, Phase Sequence, Neutral Loss
- Individual Enable /Disable Tripping Parameter
- More Accurate and Immediate Tripping
- Fail-Safe and Non Fail-Safe Mode
- Size: (H)90mm X (W)35mm X (D)61.5mm
INPUT SPECIFICATION | |
Direct Voltage AC | 160 to 300V AC (L - N) 3Ø-4W |
280 to 520V AC (L - L) 3Ø-3W | |
Frequency | 45.0 Hz to 65.0 Hz |
Resolution | 1 Volt |
Accuracy | Class 1.0 |
DISPLAY AND KEY: | |
Display | UPPER: 3-Digit, 7-Seg, 0.4" |
LOWER: 3-Digit, 7-Seg, 0.28" | |
Keys | SET, INC, DEC/RST |
GENERAL SPECIFICATION: | |
Dimension (mm) | 90 (H) x 35 (W) x 61.5 (D) |
Trip Setting | Under Voltage: 260-520V AC 3Ø-3W 160-300V AC 3Ø-4W |
Over Voltage: 260-520V AC 3Ø-3W 160-300V AC 3Ø4W | |
Under Frequency: 45.0 Hz To 65.0 Hz | |
Over Frequency: 45.0 Hz To 65.0 Hz | |
Phase Asymmetry: (10-100V) | |
Hysteresis: (0-99V) | |
Time Parameter | Power ON Delay Time: 0.0 To 99.9 Sec. |
Trip Delay Time: 0.0 To 999 Sec. | |
Recovery Time: 0.0 To 99.9 Sec. | |
Accuracy | Class 1.0 (Standard) |
OUTPUT SPECIFICATION | |
Relay | 2 nos. |
Relay Type | 1-C/O (NO-C-NC) |
Rating | 5A, 230V AC Resistive Load |
24V DC | |
ENVIRONMENT CONDITION | |
Operating Temp. | 0°C to 55°C |
Relative Humidity | Up to 95% RH |
(non-condensing) | |
NETWORK CONNECTION | |
3Ø-3W/3Ø-4W |
Application
- DG Set Panels
- Motor Control Center Panels
- Control Panels
- Distribution Panels
Comparison with VPR-33-02A
While both the VPR-33-00 and VPR-33-02A are designed to provide reliable protection against voltage disturbances in three-phase systems, the VPR-33-02A offers enhanced functionality:
- VPR-33-00 → Reliable basic voltage protection (single relay).
- VPR-33-02A → Advanced version with dual relays + frequency monitoring for more demanding industrial and generator-based applications.
