Description

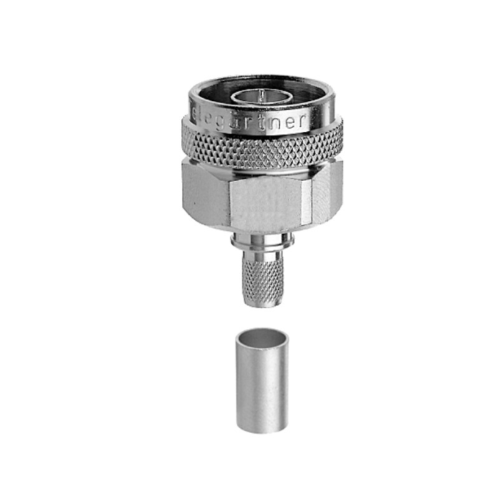

N Straight Plug Crimp G37 (2.7/7.25) crimp/crimp
Electrical Attributes
| Contact resistance inner conductor | ≤ 1,5 mΩ |
|---|---|
| Contact resistance outer conductor | ≤ 1 mΩ |
| Insulation resistance | ≥ 5 GΩ |
| Voltage proof | 2.5 kVeff/50 Hz |
| Impedance | 50 Ω |
| Return loss: Straight style | ≥ 30.5 dB/1 GHz |
| Return loss: Angle style | ≥ 30.5 dB / 1 GHz |
| Working voltage | ≤ 1 kVeff/50 Hz |
| Frequency range up to | 11 GHz |
Mechanical Attributes
| Recommended coupling torque | 4 - 6 Nm |
|---|---|
| Durability (Matings) | ≥ 500 |
| Material: spring contacts | CuBe2, CuNi1Pb1P(C97) |
| Material: outer conductor | CuZn39Pb3 |
| Material: other metal parts | CuZn39Pb3 |
| Material: insulators | PTFE |
| Material: gaskets | Silicone, NBR |
| Finish: Inner conductor | Cu2Ag5 |
| Finish: Outer conductor | CuSnZn3 (Telealloy); Ag2CuSnZn0.5 (Optargen) |
| Finish: Other metal parts | CuSnZn3 (Telealloy), Cu2Ni5 |
Norms
| Standards | IEC 61 169-16 |
|---|
Technical attributes
| Article name |
N Plg str cr/cr G37 |
|---|---|
| Cable group; cable |
G37 (2.7/7.25) 9913F |
| Remarks |
crimp/crimp |
| Dimensions |
a=36.5, b=14.5 |
| Assembly |
B3426 |
